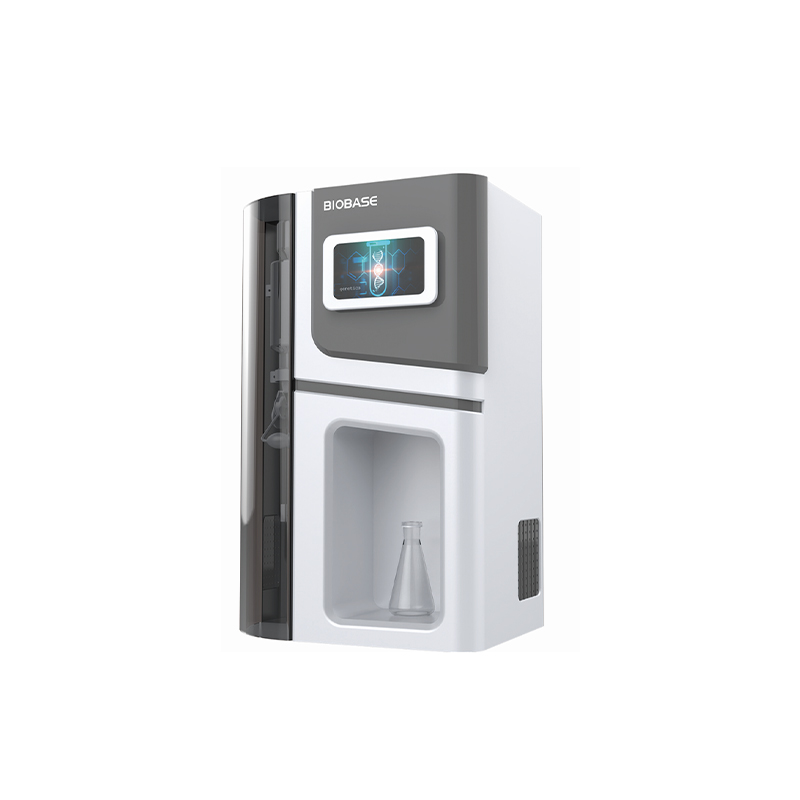

Semi Automatic Kjeldahl Nitrogen Analyzer AKN-01 AKN-01S

Features:

1. 7-inch high-resolution color LCD display, real-time control of the experimental process.

2. Manual/automatic dual mode can be switched freely. In the automatic mode, it can automatically quantitatively add lye, boric acid receiving solution, dilution water and other automatic waste discharge systems. After the experiment is completed, the waste liquid in the digestive tube is automatically discharged, and the rinsing time can be set freely.

3. The distillation time can be set arbitrarily, and the alarm prompts the end of the distillation. The safety protection design of the experiment, the safety door protection and the reminder function that the digestive tube is not in place.

4. Water-saving function design, condensed water flow rate 1.5L/min, real-time flow monitoring, low water pressure alarm display.

5. Real-time monitoring of steam generator temperature, pressure and water level to ensure safe and reliable experiment process.

6. Emergency stop operation function and automatic fault detection function, sound and light alarm in case of fault, intelligent bullet box display.

7. Adopt high reliable PTFE pump, special corrosion resistance, anti crystallization, stable liquid addition, stable negative pressure suction.

8. The whole machine of the instrument is made of ABS engineering plastics, which is corrosion-resistant, waterproof and leak-proof.



Technical Parameters:

Model	AKN-01	AKN-01S
Measuring Range	0.1mg~240mg N
Recovery Rate	≥99.5%
Sample Amount	Solid≤6g; Liquid≤20mL
Distillation Speed	3~6min/sample
Distillation Time	0~60min
Repeatability	≤0.5%
Cooling Water Consumption	1.5L/min
Operating Mode	Automatic/manual dual modes
Automatic Drainage	/	Automatically emptying and cleaning digestive tube waste liquid
Reagents Bottle Liquid Level Detection	/	Yes
Reagents Bottle	4pcs
Protection Device	Flow rate detection, liquid level alarm, over temperature and over pressure protection
Display	7 inches LCD display
Rated Power	1.4KW
Power Supply	Standard: 220V, 50/60Hz; Optional: 110V, 50/60Hz
External Size	490*380*725mm
Net Weight	35kg
Packing Size	630*560*1350mm
Gross Weight	52kg

Semi Automatic Kjeldahl Nitrogen Analyzer AKN-01 AKN-01S — professional solution in the Kjeldahl Apparatus category

Semi Automatic Kjeldahl Nitrogen Analyzer AKN-01 AKN-01S is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Semi Automatic Kjeldahl Nitrogen Analyzer AKN-01 AKN-01S

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Semi Automatic Kjeldahl Nitrogen Analyzer AKN-01 AKN-01S fits easily into existing process lines and IT infrastructure.

Areas of application Kjeldahl Apparatus

Kjeldahl Apparatus solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Semi Automatic Kjeldahl Nitrogen Analyzer AKN-01 AKN-01S allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Semi Automatic Kjeldahl Nitrogen Analyzer AKN-01 AKN-01S you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
