Features:
1. High precision and wide range of tamp control.
2. Blowing a large number of samples at one time.
3. Blowing each sample independently.
4. Amount of airflow can be adjusted.
5. Easy operation; safe and reliable to use.
6. 12-month warranty.
Technical Parameters:
Model | BK-SC100 |
Temp. Control Range | RT+5°C~160°C |
Temp. Uniformity | ≤±0.5°C |
Display Accuracy | 0.1°C |
Heating Time | ≤15min(from 25°C to 160°C) |
Max Gas Usage | 15L/min |
Max Gas Pressure | 0.02Mpa(Gas pin≤16pcs) 0.05Mpa(Gas pin>16pcs) |
Max Power | 300W |
Dimension | 260*220*450mm |
Temp. Accuracy | ±0.5°C(@40°C) |
Temp. Accuracy | ±1°C(@120°C) |
Timing Range | 1~99h59min/∞ |
Max Vertical Travel | 200mm |
Needle Length | 150mm |
Block Quantity | 1 |
Voltage | 220V, 50/60Hz; 110V, 60Hz |
Packing Size(W*D*H) | 430*420*340mm |
Weight(kg) | 7.0 |
Gross Weight(kg) | 9.0 |
Optional Blocks:
Type | Test Tube Diameter | Capacity |
B03 | 10mm | 24 |
B04 | 12mm | 24 |
B05 | 13mm | 24 |
B06 | 15mm | 16 |
B07 | 16mm | 16 |
B08 | 19mm | 12 |
B09 | 20mm | 12 |
B10 | 26mm | 8 |
B11 | 28mm | 4 |
B12 | 40mm | 3 |
B15 | 1.5ml(centrifuge tube) | 24 |
B16 | 2.0ml(centrifuge tube) | 24 |
Choose one as a standard block. |

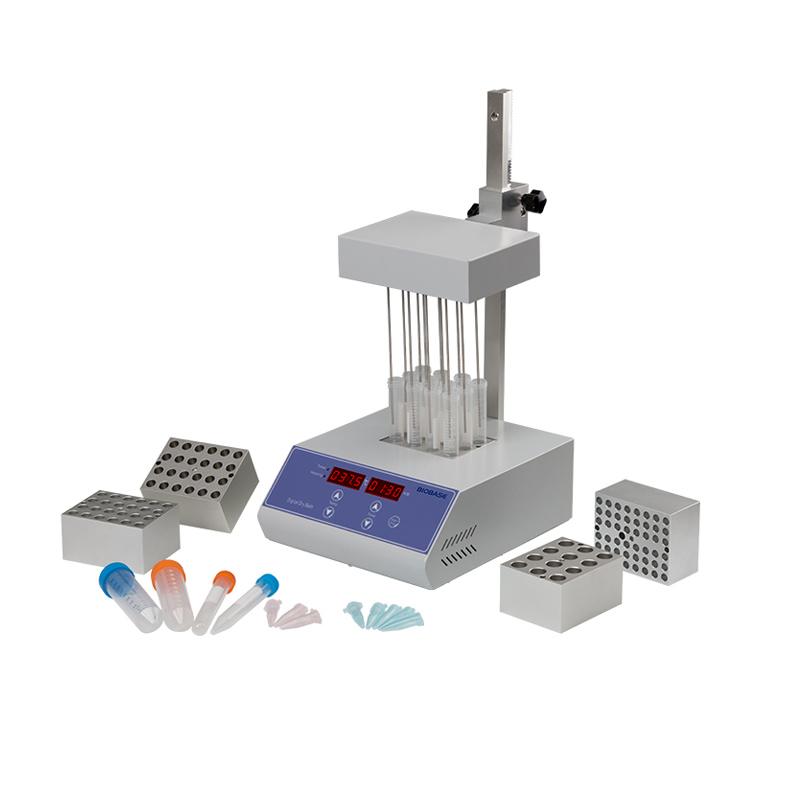

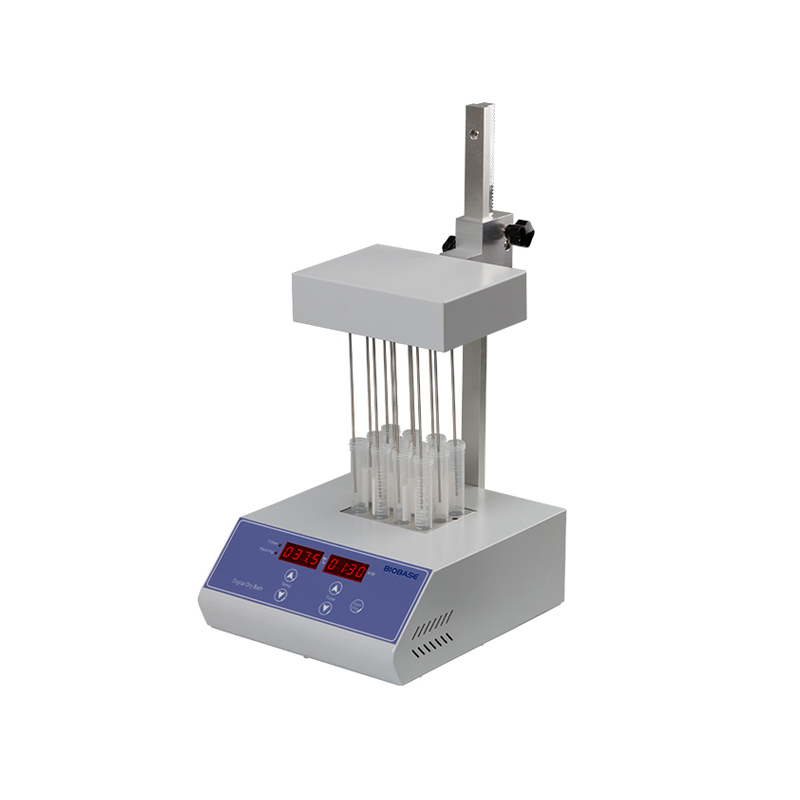

Sample Concentrator BK-SC100 — professional solution in the Sample Concentration (Nitrogen Evaporator) category
Sample Concentrator BK-SC100 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Sample Concentrator BK-SC100
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Sample Concentrator BK-SC100 fits easily into existing process lines and IT infrastructure.
Areas of application Sample Concentration (Nitrogen Evaporator)
Sample Concentration (Nitrogen Evaporator) solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Sample Concentrator BK-SC100 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Sample Concentrator BK-SC100 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Sample Concentrator BK-SC100 to the cart or contact our manager. We will help integrate Sample Concentration (Nitrogen Evaporator) into existing processes without downtime and unnecessary costs.
