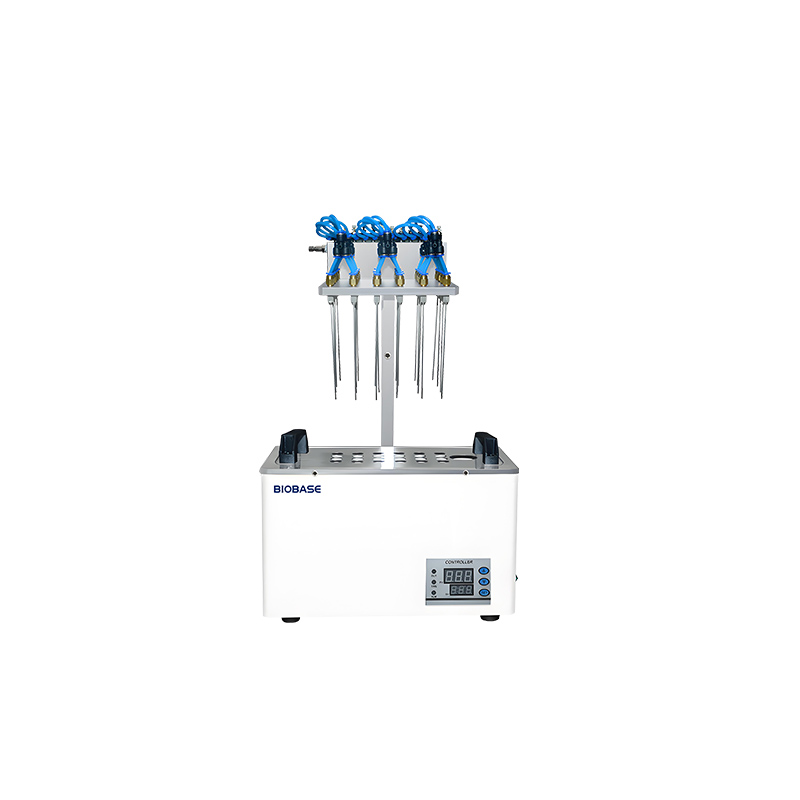

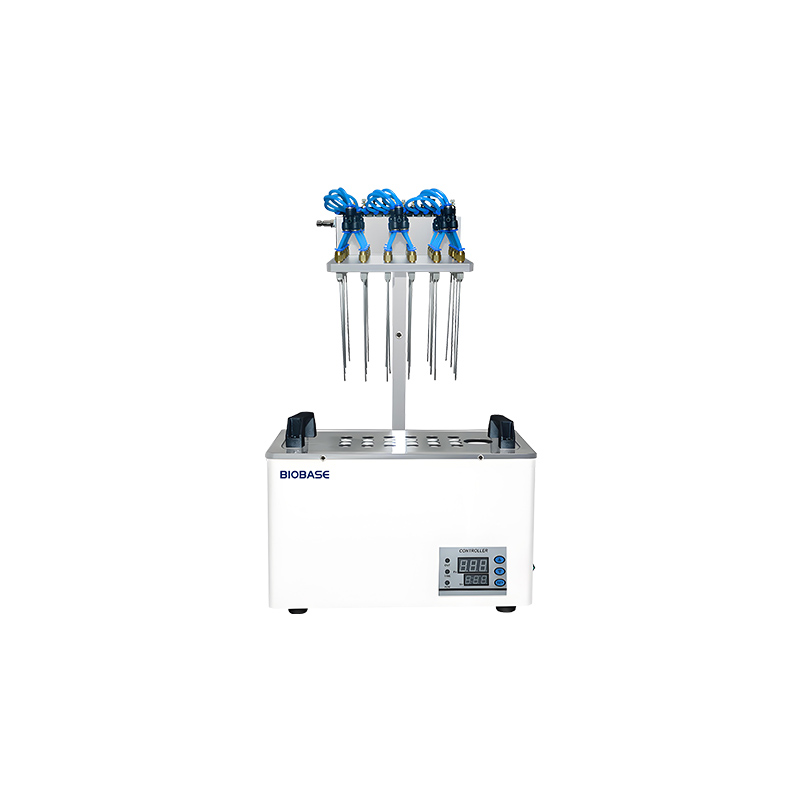

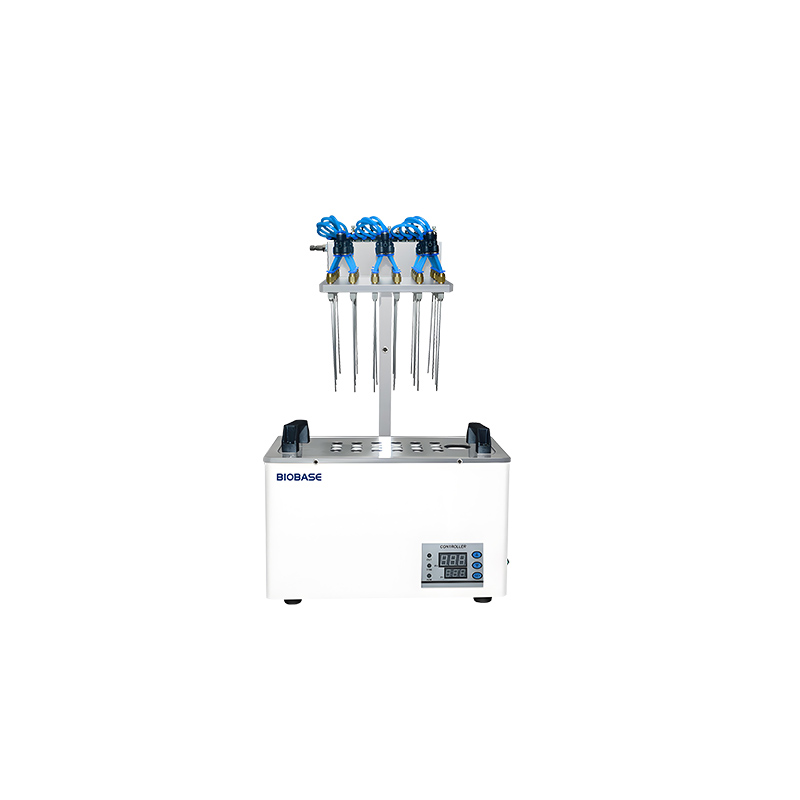

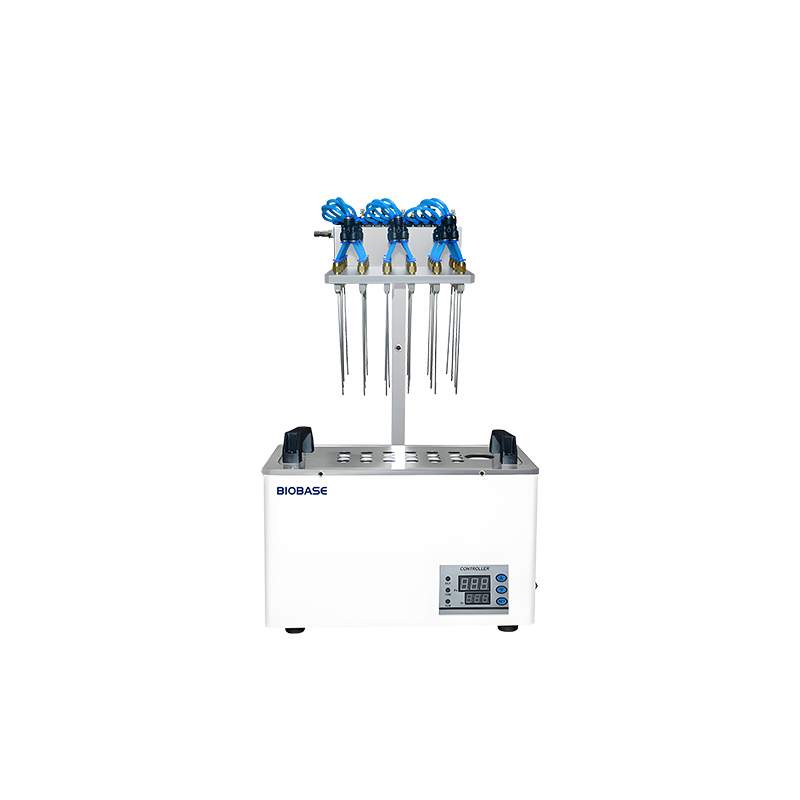

Sample Concentrator

Features：

1. The distribution chamber's gas channels can be combined or used individually, with independent control for each.The height of the distribution chamber can be adjusted as needed.

2. Individual gas flow adjustment for each channel, addressing the issue of inconsistent flow rates in traditional nitrogen blowers, and featuring a flexible self-balancing lifting system.

3. Digital temperature controller with dual digital display, using PID technology for regulation and capable of high-temperature alarm.

4. All solvent-contact parts are made of 316 stainless steel for durability and ease of cleaning.

5. The entire unit can be used inside a fume hood.

6. Optional gas flow meters and pressure regulators are available for each model.

7. Standard test tube rack is φ16.5mm; the hole diameter and arrangement pattern are customizable.



Technical Parameters：

Model	BK-SC12	BK-SC24	BK-SC36	BK-SC48
Heating Method	Water bath
Max Number of Samples	12	24	36	48
Temp. Control Range	RT~100℃
Temp. Accuracy	±1℃
Heating Time	20~25min(From 25℃ to 100℃)
Max Gas Usage	15L/min
Consumption	600W
Timing Range	1~999min
Needle Length	150mm
Needle Diameter	1mm
Power Supply	220V, 50/60Hz
External Size(W*D*H)	340*200*460mm
Packing Size(W*D*H)	500*280*410mm
Net Weight	7kg	7.5kg	7.5kg	8kg
Gross Weight	9kg	9.5kg	9.5kg	10kg

Sample Concentrator — professional solution in the Sample Concentration (Nitrogen Evaporator) category

Sample Concentrator is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Sample Concentrator

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Sample Concentrator fits easily into existing process lines and IT infrastructure.

Areas of application Sample Concentration (Nitrogen Evaporator)

Sample Concentration (Nitrogen Evaporator) solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Sample Concentrator allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Sample Concentrator you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
