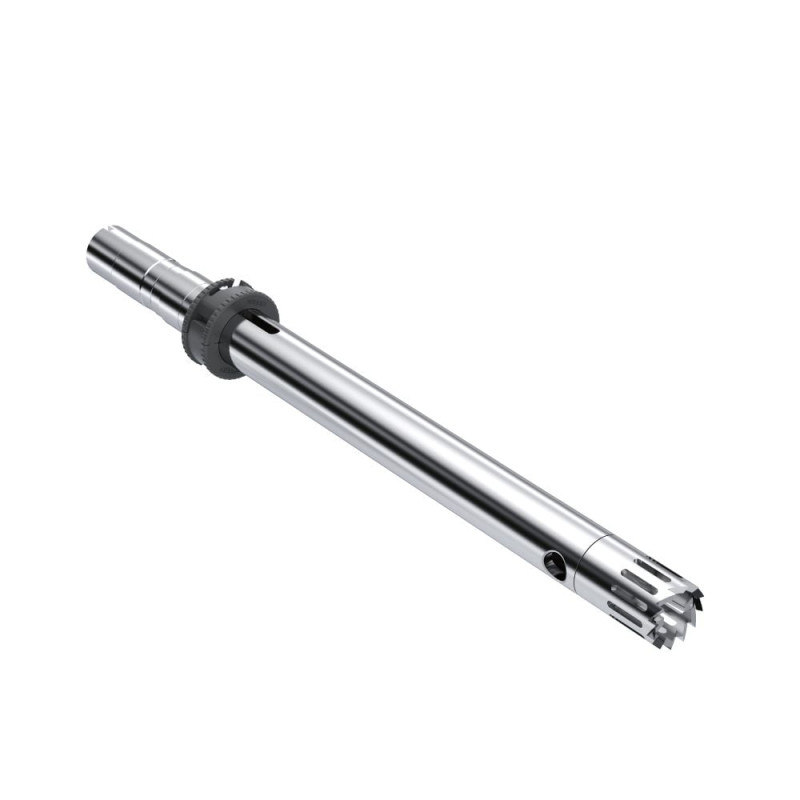

S 25 EC - C - 18 G - ST Dispersing tool

Dispersing tool S 25 EC-C-18G-ST is only compatible with the dispersers T 25 easy clean digital & control Cleaning status for easy clean tool: By turning and lowering the clamp, the shaft and rotor can be dropped down till the whole rotor comes out of the stator. Then the shaft tube of the tool can also be completely rinsed inside. Type of bearing: Ceramic plain bearing Product-touching material: AISL 316L, ceramics Solvent suitable: Yes Sterilizable: Yes, all methods Max. working temperature [°C]: 180 Shaft length [mm]: 191 Diameter stator / rotor [mm]: 18 / 13.4 Gap between [mm]: 0.25 Recommend emersion depth [mm]: 35 - 150 Recommend working range [mL]: 10 - 1500 Volume range (H2O) [l]: 0.01 - 1.5 Stator diameter [mm]: 18 Rotor diameter [mm]: 13.4 Gap between rotor and stator [mm]: 0.25 allowable Speed max. [rpm]: 25000 Circumferential speed max. [m/s]: 17.5 Immersion depth [mm]: 35 - 150 Shaft length [mm]: 191 Material in contact with medium: AISI 316L, ceramic pH range: 2 - 13 Suitable for solvents: yes Suitable for abrasive substances: yes Working temperature max. [°C]: 180 Sterilization methods: all methods Ultimate fineness, suspensions [µm]: 10 - 50 Ultimate fineness, emulsions [µm]: 1 - 10 Weight [kg]: 0.4

S 25 EC - C - 18 G - ST Dispersing tool — professional solution in the IKA®-Werke GmbH & Co. KG category

S 25 EC - C - 18 G - ST Dispersing tool is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why S 25 EC - C - 18 G - ST Dispersing tool

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: S 25 EC - C - 18 G - ST Dispersing tool fits easily into existing process lines and IT infrastructure.

Areas of application IKA®-Werke GmbH & Co. KG

IKA®-Werke GmbH & Co. KG solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing S 25 EC - C - 18 G - ST Dispersing tool allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with S 25 EC - C - 18 G - ST Dispersing tool you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
