Features
1. All parts in contact with materials are made of high borosilicate glass and polytetrafluoroethylene.
2. The main bracket is made of rust-proof aluminum alloy.
3. Integrated condenser with upright double-layer serpentine coil to ensure high recovery rate.
4. Rotation and heating power switch control.
5. Large LCD screen can display temperature and rotation speed at the same time.
6. Brushless rotating motor for smooth operation.
7. Electronic stepless speed regulation, fine adjustment by turning the knob, simple and easy to operate.
8. Rotating and heating double fuses have high safety protection performance.
Technical Parameters
Model | RE-5000 |
Rotary Bottle Volume | 5LΦ230mm/Φ50 Flange mouth |
Collecting Bottle Volume | 3LΦ195mm/35#ball mill mouth |
Rotary Speed | 0-200rpm/min |
Temp. Control Range | RT-99℃ |
Temp. Control Accuracy | ±1℃ |
Stroke Height | 90mm |
Condenser Size | 19#standard size |
Condenser Square Meter | 0.26㎡ |
Charging Valve | 19#standard size, Feeding nozzle (pagoda joint) outer diameter 10mm |
Vacuum Suction Nozzle | Pagoda connector outer diameter 10mm |
Condensation Coil Circulation Nozzle | Pagoda connector outer diameter 12mm |
Bath Size | Φ275*160H(mm),9.5L |
Product Size | 690*440*（825-915）mm |
Overall Power | 1560W |
Rotary Motor Power | 40W |
Lifting Motor Power | 20W |
Heating Power | 1500W |
Vacuum | 0.098Mpa |
Power Supply | Standard: 220V 50/60Hz, optional: 110V 50/60Hz |
Net Weight | 30KG |
Packing Size | 615*485*650mm |
Gross Weight | 48KG |
Appliable Vacuum | SHZ-DIII |
Appliable Recirculating Chiller | DLSB-5/20 |

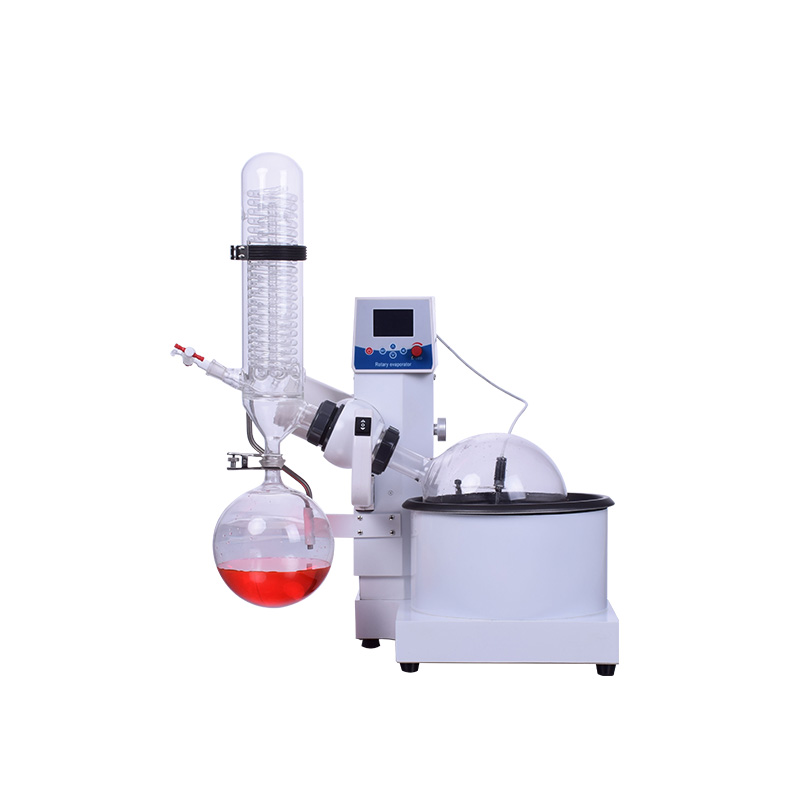

Rotary Evaporator RE-5000 — professional solution in the Rotary Evaporator category
Rotary Evaporator RE-5000 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Rotary Evaporator RE-5000
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Rotary Evaporator RE-5000 fits easily into existing process lines and IT infrastructure.
Areas of application Rotary Evaporator
Rotary Evaporator solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Rotary Evaporator RE-5000 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Rotary Evaporator RE-5000 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Rotary Evaporator RE-5000 to the cart or contact our manager. We will help integrate Rotary Evaporator into existing processes without downtime and unnecessary costs.
