Application:
Mainly used for concentration, crystallization, drying, separation and solvent recovery in chemical.
Features:
1. Stepless speed controller.
2. PID temperature adjustment.
3. Automatic lift control.
4. High evaporating and recovery collecting rate.
Technical Parameters:
Model | BK-RE-1A |
Rotary Bottle | 1L 24#(standard size） |
Collecting Bottle | 0.5L 24#(standard size） |
Glass Material | GG-17 |
Shelf Material | Spray anti-corrosion steel |
Heating Unit Size | 250*388*169mm |
Chamber Size | φ220*140mm |
Heating Power | 1KW |
Temp. Range | 0~99℃ |
Temp. Accuracy | ±1℃ |
Temp. Sensor | PT100 |
Vacuum | 0.096Mpa |
Rotary Motor | 30W |
Rotating Speed | 0~120rpm |
Lift | Motor |
Lifting Power | 15W |
Lifting Stroke | 150mm |
Speed Control | Stepless speed controller |
Sealing Method | Fluorine rubber skeleton oil seal |
Condenser | φ85*450mm |
Charging Valve | 19#(standard size) |
Power Supply | 220V, 50Hz(Standard); 220V, 60Hz(Optional) |
External Size(W*D*H) | 640*340*(860~1010)mm |
Package Size(W*D*H) | 740*550*580mm |
Gross Weight | 38kg |
Standard Accessory | 1L Rotary Bottle*1, 0.5L Collecting Bottle*1 |
Optional Accessory | Vacuum pump, Recirculating chiller, Transparent cover |

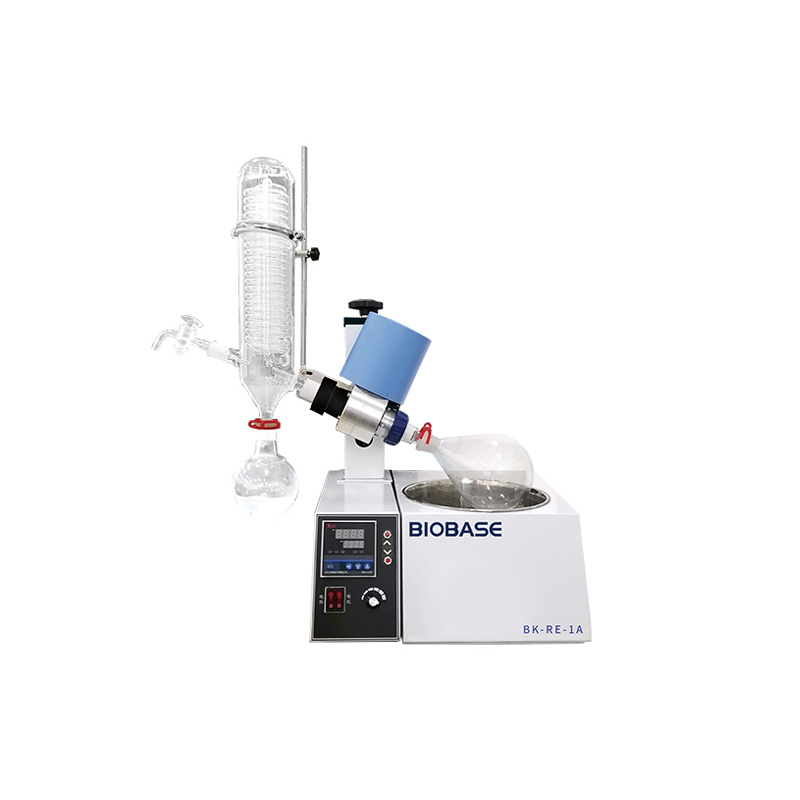

Rotary Evaporator BK-RE-1A — professional solution in the Rotary Evaporator category
Rotary Evaporator BK-RE-1A is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Rotary Evaporator BK-RE-1A
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Rotary Evaporator BK-RE-1A fits easily into existing process lines and IT infrastructure.
Areas of application Rotary Evaporator
Rotary Evaporator solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Rotary Evaporator BK-RE-1A allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Rotary Evaporator BK-RE-1A you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Rotary Evaporator BK-RE-1A to the cart or contact our manager. We will help integrate Rotary Evaporator into existing processes without downtime and unnecessary costs.
