RET control-visc white

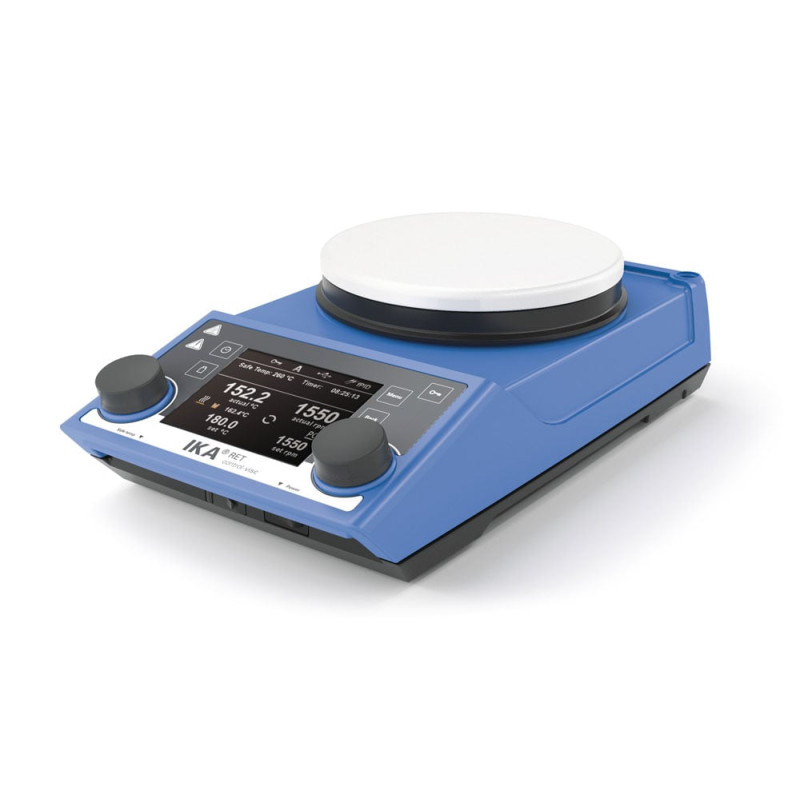

Magnetic stirrer RET control-visc white

WORLD'S FIRST PATENTED: Safe magnetic stirrer with heating and built-in balances. Clear multilingual TFT display simplifies setting of all parameters. Built-in temperature control function allows connection of a temperature probe, placed directly in the medium, for monitoring the medium temperature with high precision. PT 100 temperature sensor is included. Composite heating plate made of stainless steel with white ceramic coating, reaching a temperature of 340 °C, ensures fast heating and very good chemical resistance. RS 232 and USB interfaces allow control of the magnetic stirrer via PC and documentation of all test parameters. "Lock" function prevents accidental changes in speed and temperature settings. As a safety feature, the current temperature is displayed when the device is turned off but the surface is still hot. The display turns off automatically below 50 °C.

Built-in weighing function

BNC connector for pH electrode connection

Adjustable temperature control mode: fast heating and very precise temperature regulation

Dual sensor for simultaneous monitoring of coolant temperature and ambient temperature

Timer and countdown functions

Display of viscosity change trend

Detection of individual magnet

Intermittent operation

Several operating modes available

Protective circuit adjustable from 50 to 380°

Transparent protective cover included

Error code display for easy troubleshooting

Precise temperature and speed control via digital display; even when the function is turned off

Suitable for unsupervised operation

Sealed housing (IP 42) ensures long service life

Automatic shutdown of heating function if external temperature sensor is not immersed in the medium. Function can be selected, waiting time can be adjusted (Error 5)

Supply package:

• RET control-visc white
• PT 100.70 Temperature sensor
• IKAFLON® 30*
• IKAFLON® 40*
• Screw driver
• H 104 Cover for RET control
• USB Cable - USB A to Micro-B, 2 m

Technical specifications:

Number of stirring positions: 1

Maximum amount of substance stirred per stirring position (H2O) [L]: 20

Maximum load [kg]: 25

Motor power [W]: 9

Rotation direction: right

Set speed indicator: TFT

Actual speed indicator: TFT

Speed control: Rotary knob

Speed range [rpm]: 50 - 1700

Speed setting accuracy [rpm]: 10

Stirring rod length [mm]: 20 - 80

Self-heating of attachment at maximum stirring (RT:22°C/duration: 1 hour) [K]: +17

Heating power [W]: 600

Set temperature indicator: TFT

Actual temperature indicator: TFT

Temperature unit: °C / °F

Heating temperature range [°C]: Room temp. + attachment self-heating - 340

Heating control: Rotary knob

Temperature setting range [°C]: 0 - 340

Temperature setting resolution of heating plate [K]: 0.1

Connection for external temperature sensor: PT100/PT1000 (dual sensor)

Environment characteristics with temperature sensor: 1 L of M50 oil at H1500

Maximum medium temperature [°C]: 270

Temperature setting resolution of medium [K]: 0.1

Adjustable safety circuit [°C]: 50 - 380

Table plate material: technical enamel

Table plate dimensions [mm]: Ø 135

Automatic reverse rotation: no

Intermittent mode: yes

Viscosity trend measurement: yes

Stirring rod damage detection: yes

Timer: yes

pH measurement: yes / BNC connector (female)

Graph function: yes

Programs: yes

Sensor detection in medium: yes

Weighing function: yes

Weighing range [g]: 10-5000

Weighing accuracy: ±(0.3%+2) g

Max. load capacity weighing function [kg]: 5

Heating rate (1L H2O at H1500) [K/min]: 7

Dimensions (W x H x D) [mm]: 160 x 85 x 270

Weight [kg]: 2.7

Permissible ambient temperature [°C]: 5 - 40

Permissible relative humidity [%]: 80

Protection class according to DIN EN 60529: IP 42

RS 232 interface: yes

USB interface: Micro-USB

Analog output: no

Voltage [V]: 220 - 240 Frequency [Hz]: 50/60

Input power [W]: 650
