Features:
1. It is easy to operate, one key operation, automatic shutdown, quick water content and other values.
2. The heat dissipation unit adopts the aluminum alloy integrated heat dissipation panel to absorb the extra heat for effective heat dissipation.
3. Visual and transparent front window design, beautiful and generous, which can observe the moisture change in real time during the working process of the instrument.
4. Various data display modes: moisture value, initial value of sample, final value of sample, measurement time, initial value of temperature, final value of temperature.
5. 100 user-defined measurement methods, convenient and fast storage and retrieval, no need to set each time.
6. RS232 serial port, expandable computer communication, printer communication, PLC and network management.
Technical Parameters:
Model | BM-E50 | BM-E10 | BM-E01 |
Weighing Accuracy(d) | 0.005g | 0.001g | 0.0001g |
Moisture Readability | 0.01% | 0.01% | 0.001% |
| Moisture Range MC% | 0.00% | 0.00% | 0.000% |
Solid Content Range DC% | -100.00% | -100.00% | -100.000% |
Weight Sensor | HBM Strain gauge force | Electromagnetic force | Electromagnetic force |
Weighing Range | 124g(optional 220g/300g) |
Calibration Method | External weight calibration(Single-Point&Multi-Points) |
Repeatability | <3d |
Heating Source | Halogen lamp |
Temperature Sensor | PT-1000 temperature transmitter |
Heating Program | Standard heating, Step heating, Rapid heating, Soft heating |
Heating Temperature Rang | 40~200℃ |
Temperature Accuracy | 0.1℃ |
Heating Time Setting | 1~99 minutes by 1 minute |
Stop Mode | Timing, Manual, Automatic |
Measurement Data | 2004 sets |
Display Data | MC%(Moisture), DC%(Solid content), ATRO dry, ATRO wet, Sample weight, Moisture weight, Dryer sample weight, Tempreture, Time, Analysis curve |
Function | Custom measurement method, U disk system upgrade |
Display&Operating | 5-inch capacitive touch screen |
Sample Tray | 50 aluminum sample trays with 90mm diameter, optional stainless steel sample tray |
Sample Height | 24.5mm |
Sample Pan | Aluminum sample pan(50pcs), Stainless steel sample pan(4pcs) |
Thermal Protection | Aluminum high temperature radiator |
Baud Rate | 2400, 4800, 9600, 19200 |
Data Communication | RS232/RS485(can be connected to a computer, printer, PLC, etc.) |
Print Function | Optional printer(thermal, needle, adhesive, etc.) |
Use Environment | 1~38℃(18~25℃ ideal temperature) |
Consumption | 500W |
Power Supply | AC220V/110V, 50/60Hz |
External Size(W*D*H) | 315*210*205 |
Net Weight | 5.8kg | 8.8kg | 8.8kg |
Packing Size(W*D*H) | 520*380*410mm |
Gross Weight | 7.5kg | 15kg | 15kg |

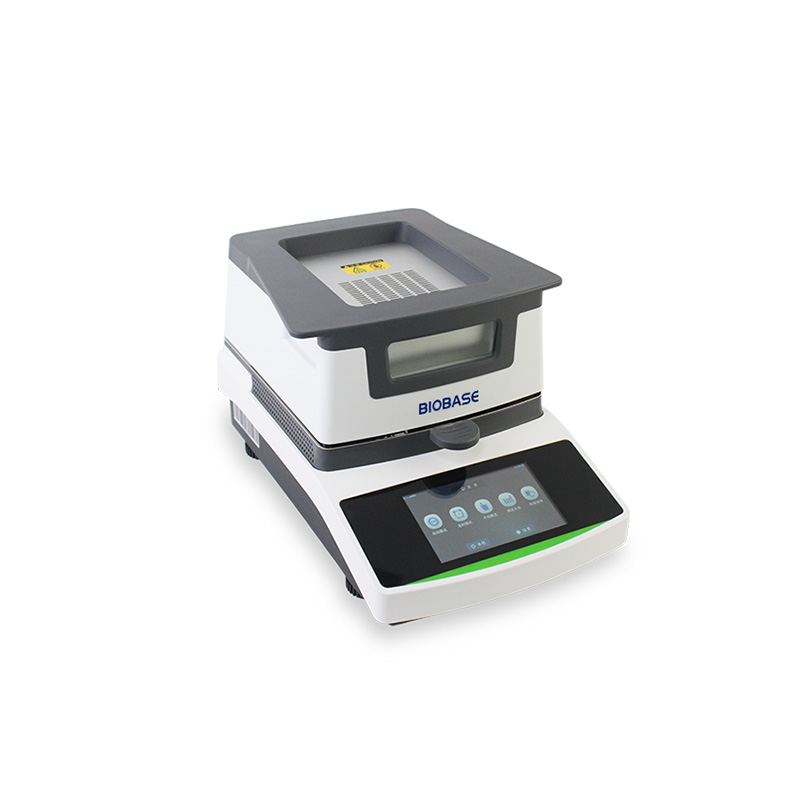

Rapid Moisture Meter BM-E50 BM-E10 BM-E01 — professional solution in the Laboratory Balance category
Rapid Moisture Meter BM-E50 BM-E10 BM-E01 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Rapid Moisture Meter BM-E50 BM-E10 BM-E01
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Rapid Moisture Meter BM-E50 BM-E10 BM-E01 fits easily into existing process lines and IT infrastructure.
Areas of application Laboratory Balance
Laboratory Balance solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Rapid Moisture Meter BM-E50 BM-E10 BM-E01 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Rapid Moisture Meter BM-E50 BM-E10 BM-E01 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Rapid Moisture Meter BM-E50 BM-E10 BM-E01 to the cart or contact our manager. We will help integrate Laboratory Balance into existing processes without downtime and unnecessary costs.
