Features:
1. Made of PP material, integrally welded.
2. Resistant to strong acid, alkali and strong corrosion.
3. Solid core physical and chemical board, PP board, ceramic board and other countertop materials are optional.
4. The inside of the deflector is equipped with a spray system, which can neutralize the acid gas in the exhaust gas and then discharge it.
5. The control panel can control the lighting system, circuit system, and air volume adjustment system.
6. Circulating water dilution system includes acid and alkali resistant circulating pump, water tank, water inlet and outlet structure, and complete circulating water circuit.
Technical Parameters:
Model | FH1000PL | FH1200PL | FH1500PL | FH1800PL |
External Size(W*D*H) | 1047*800*2450mm | 1247*800*2450mm | 1547*800*2450mm | 1847*800*2450mm |
Internal Size(W*D*H) | 787*500*700mm | 987*500*700mm | 1287*500*700mm | 1587*500*700mm |
Work Surface Height | 820mm |
Max. Opening | 740mm |
Material | Main Body: Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion. Work Table: Solid core physical and chemical board |
Airflow Velocity | 0.3~0.8m/s |
Exhaust volume | 560m³/h | 700m³/h | 920m³/h | 1130m³/h |
Consumption | 400W+370W(Pump) | 500W+370W(Pump) | 700W+370W(Pump) |
Waterproof Socket | Two, total load≤500W |
Noise | ≤68dB(A) |
Illumination | ≥400lx |
LED Lamp | 24W | 30W | 38W |
Blower | Built-in PP centrifugal blower(2 blowers for FH1800(P) only); Speed adjustable; 300W |
Front Window | Resistant to acid and alkali, Manual, 5mm toughened glass, height adjustable |
Operators | 1~2 | 1~2 | 2~3 | 2~3 |
Standard Accessory | LED light; Work table: Chemical resistant phenolic resin; 4.3 meters PVC duct(2 pcs of 4.3 meters PVC dust for FH1800(P) only), Diameter: 250mm; Pipe strap*2(4pcs for FH1800(P) only); Base cabinet; PP centrifugal blower*1(2 for FH1800(P) only) Waterproof socket*2; Water tap(PP); Gas tap(PP); Water sink |
Optional Accessory | PP work table, epoxy resin board or ceramic board; UV lamp; Electric glass door |
Power Supply | 220V, 50/60Hz(Standard); 110V, 60Hz(Optional) |
Package Size(W*D*H) | Main Body: 1188*938*1690mm Base Cabinet: 1188*888*1000mm | Main Body: 1388*938*1690mm Base Cabinet: 1388*888*1000mm | Main Body: 1688*938*1690mm Base Cabinet: 1688*888*1000mm | Main Body: 1988*938*1690mm Base Cabinet: 1988*888*1000mm |
Gross Weight | 227kg | 255kg | 295kg | 346kg |

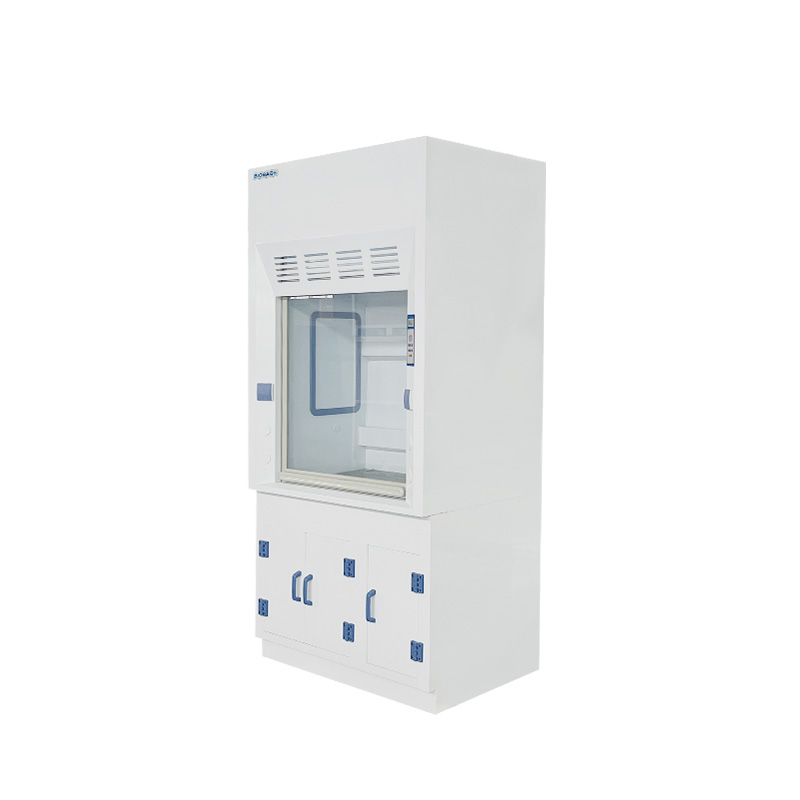

PP Spray Fume Hood FH1000PL FH1200PL FH1500PL FH1800PL — professional solution in the Fume Hood category
PP Spray Fume Hood FH1000PL FH1200PL FH1500PL FH1800PL is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why PP Spray Fume Hood FH1000PL FH1200PL FH1500PL FH1800PL
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: PP Spray Fume Hood FH1000PL FH1200PL FH1500PL FH1800PL fits easily into existing process lines and IT infrastructure.
Areas of application Fume Hood
Fume Hood solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing PP Spray Fume Hood FH1000PL FH1200PL FH1500PL FH1800PL allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with PP Spray Fume Hood FH1000PL FH1200PL FH1500PL FH1800PL you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add PP Spray Fume Hood FH1000PL FH1200PL FH1500PL FH1800PL to the cart or contact our manager. We will help integrate Fume Hood into existing processes without downtime and unnecessary costs.
