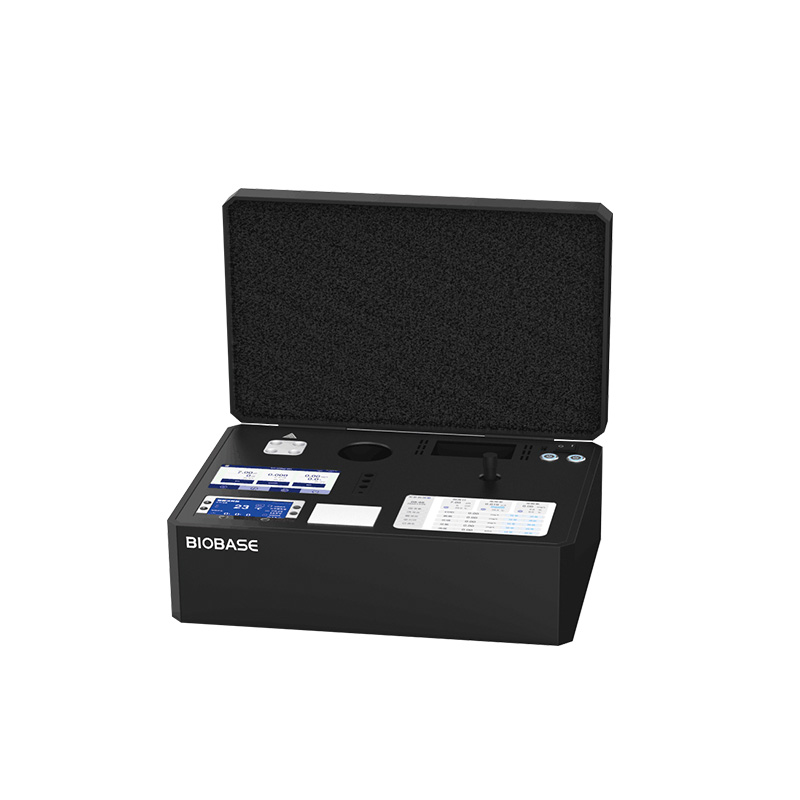

Portable Water Analyzer BK-WA1000

Features:

1. Narrowband Interference Technology + High Precision Optical Filtering System

The instrument utilizes narrowband interference technology and high precision optical filtering to filter out a large amount of stray light, thereby enhancing the purity of the light entering the system, avoiding the impact of instrument noise and drift, and improving the stability of the instrument.

2. Built-in Printer

The instrument is equipped with a one-click printing system, allowing for convenient printing without interrupting measurements, making it easy for customers to keep records for inspection by superiors.

3. Read-Only Results

The instrument has built-in standard curves for corresponding projects, eliminating the need for customers to calibrate themselves.  Concentrations can be read directly without the need for conversion.

4. Power-On Self-Check

The instrument's power-on self-check function comprehensively checks the operation of various systems within the instrument, ensuring its operational stability.

5. Electrochemical Water Quality Segmented Detection

The instrument uses an electrochemical water quality segmented detection function, capable of simultaneously measuring dissolved oxygen, pH, water quality, and other parameters, providing a quick and intuitive overview.

6. Dual Power Supply

The instrument adopts a dual power supply system, both portable and suitable for indoor use, with the ability to switch between the two power sources, ensuring the safety of the power supply and the stable operation of the instrument.

7. Large Capacity Storage Function

The instrument is equipped with an AMR9 chip of large capacity, making the instrument more sensitive and capable of storing more than 5000 measurement data and 200 curve data at the same time.  It also comes with a USB data transfer system for convenient data transfer for customers.

8. Power Failure Protection
The instrument has its own power failure protection function, effectively solving the problem of data loss due to power outages, ensuring the timeliness of the data at all times.



Technical Parameters:

Model		BK-WA1000
Water Quality Testing Items
Display Error		≤8%
Repeatability		≤±3%
Optical Stability		≤0.001A/10min
Light Source Life		100,000 hours
Measurement Time		10min
Number of Curves		200 can be set
Data Storage		5000 pieces can be stored
Wavelength Range		380~800nm
Display		7 inch color touch screen/5.6-inch omron button integrated screen
Printer		Built-in thermal printer
Reading Cuvette		Cuvette /Colorimetric tube
Electrochemical Test Items
pH	Range	-1.99~19.99pH
	Resolution	0.1/0.01
	Accuracy	±0.01pH
	Stability	±0.01 pH/3h
ORP	Range	-2000mV~0~2000mV
	Resolution	1mV
	Accuracy	±0.1% FSmV
Conductivity	Range	(0.00~20.00)μS/cm (20.0~200.0)μS/cm (200~2000)μS/cm  (2.00~20.00)mS/cm (20.0~200.0)mS/cm (200~2000)mS/cm(K=10)
	Resolution	0.01/0.1/1μS/cm, 0.01/0.1/1 mS/cm
	Accuracy	±1.0% F.S.
	Reference Temperature	25℃/20℃/18℃
	Cell Constant	K=0.1, 1, 10
TDS	Range	(0~100)g/L
	Resolution	0.01/0.1/1μS/cm, 0.01/0.1/1 mS/cm
	Accuracy	±1.0% F.S.
Salinity	Range	(0~100)ppt
	Resolution	0.01/0.1/1μS/cm, 0.01/0.1/1 mS/cm
	Accuracy	±1.0% F.S.
Resistivity	Range	(0~100)MΩ·cm
	Resolution	0.01/0.1/1μS/cm, 0.01/0.1/1 mS/cm
	Accuracy	±1.0% F.S.
DO	Range	(0~20.00)mg/L(ppm), (0~200.0)%
	Resolution	0.1/0.01 mg/L(ppm), 1/0.1 %
	Accuracy	±0.10 mg/L
	Stability	(±0.07mg/L)/1h
	Barometric Pressure Correction	(0~200)kPa, manual
	Salinity Correction	(0~45)ppt, manual
Other Specifications	Temperature Compensation	0~100°C/32~212°F, manual or automatic
	Memory	500 data sets, USB communication interface, wireless Bluetooth interface
	Power Requirements	AC220V±10%/50Hz
	Dimension	525*200*390mm
	Net Weight	17kg
	Packing Size	695*365*500mm
	Gross Weight	21kg

Portable Water Analyzer BK-WA1000 — professional solution in the Water Activity Meter category

Portable Water Analyzer BK-WA1000 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Portable Water Analyzer BK-WA1000

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Portable Water Analyzer BK-WA1000 fits easily into existing process lines and IT infrastructure.

Areas of application Water Activity Meter

Water Activity Meter solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Portable Water Analyzer BK-WA1000 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Portable Water Analyzer BK-WA1000 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
