Technical Parameters:
Model | BK-FD20S(Standard) | BK-FD20T(Stoppering) | BK-FD30S(Standard) | BK-FD30T(Stoppering) |
Freeze Drying Area | 0.3m² | 0.2m² | 0.4m² | 0.3m² |
Shelf Temperature | -50℃~+70℃(no-loading) |
Cold Trap Temperature | <-80℃(no-loading) |
Vacuum Degree | ≤1Pa(no-loading) |
Water Capture Capacity | ≥6 | ≥8 |
Cold Trap Volume | 14L | / | 26L |
Cold Trap Size(Diameter*H) | Φ200*460mm | / | Φ320*520mm |
Drying Chamber Size(W*D*H) | 330*325*470mm | 340*500*420mm | 480*380*540mm |
Shelf&Tray Size(W*D*H) | Shelf: 400*270*18mm
Tray: 395*265*25mm | Shelf: 300*340*18mm
Tray: 295*335*25mm |
Qty. of Shelf&Tray | Shelf: 3+1; Tray: 3 | Shelf: 2+1; Tray: 2 | Shelf: 4+1; Tray: 4 | Shelf: 3+1; Tray: 3 |
Sample Loading Capacity(Liquid) | 3L | 2L | 4L | 3L |
Height Between Trays | 70mm | 100mm | 50mm | 70mm |
Tray Temperature Difference | ±1℃ |
Refrigerant | R404A+R23 |
Condenser Cooling Mode | Air cooling |
Defrost Mode | Electric defrosting | Natural defrosting(optional electric defrosting) | Electric defrosting |
Stoppering Mode | / | Automatic | / | Automatic |
Total Qty. of Vial | Φ22mm | / | 440 | / | 654 |
Φ16mm | / | 868 | / | 1200 |
Φ12mm | / | 1554 | / | 2187 |
Vacuum Pump | 4L/S(14.4m³/h) | 6L/S(22m³/h) |
Electric Defrosting Consumption | 800W | 800W | / | 1000W |
Silicone Oil Heating Rods Consumption | 800W | 800W | 1000W | 1000W |
Hydraulic Pressure Station Consumption | / | 500W | / | 1000W |
Total Consumption | 3KW | 4KW | 4.5KW | 5.5KW |
Power Supply | AC220V, 50Hz/60Hz(single phase) |
Main Body Weight | 300kg | 400kg |
External Size(W*D*H) | 1033*781*1580mm | 928*825*1366mm | 1272*853*1679mm |
Packing Size(W*D*H)/Gross Weight | Main Body | 1150*900*1780mm/400kg | 1150*900*1905mm/400kg | 1050*945*1570mm/450kg | 1392*995*1880mm/651kg |
Vacuum Pump | 950*420*500mm(37kg) | 790*340*460mm(57kg) | 790*300*470(52kg) |
Optional: Import vacuum pump, Vacuum pump anti-return value, Eutectic point tester, Oil mist filtration system, Vacuum adjustment device.
Standard: USB port.

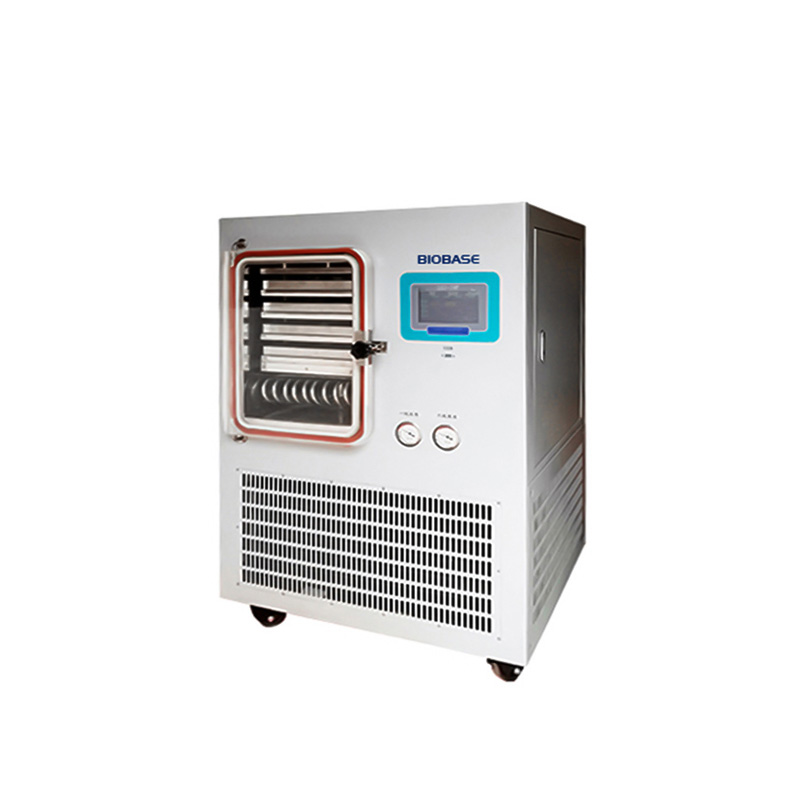

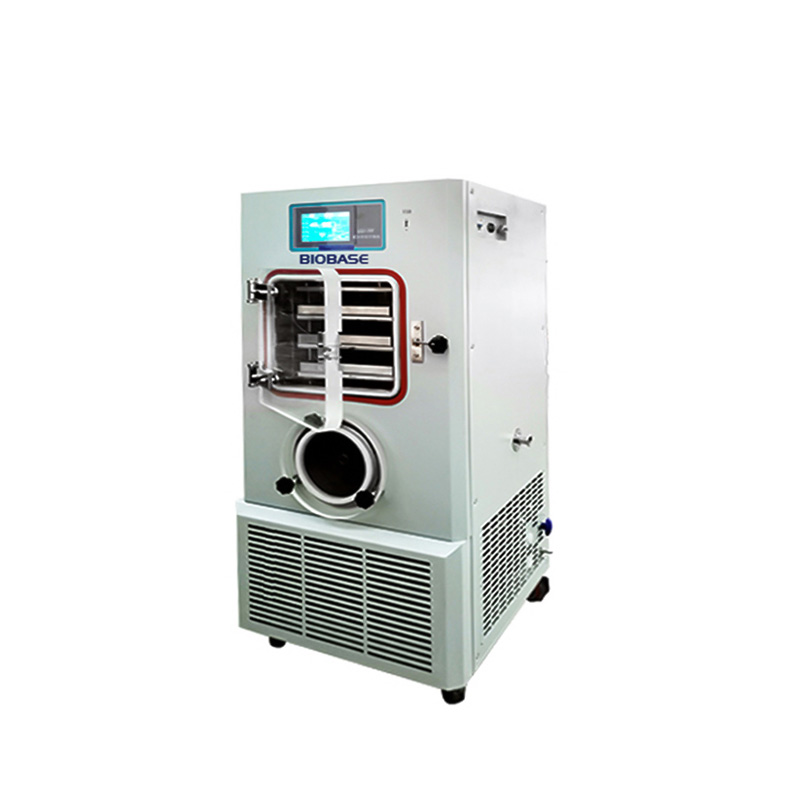

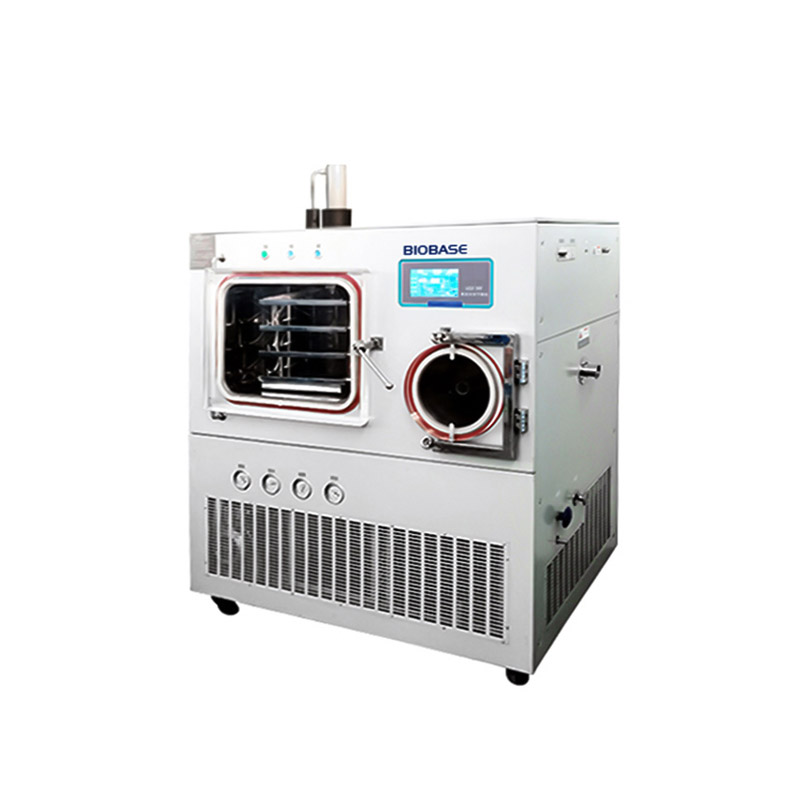

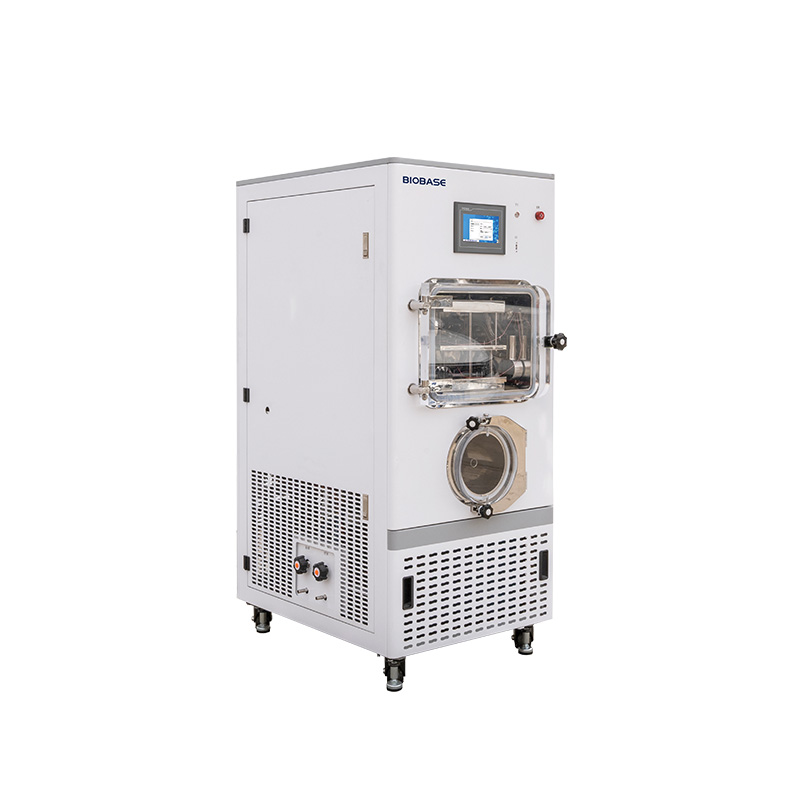

Pilot Freeze Dryer Large Freeze Dryer BK-FD20S, BK-FD20T, BK-FD30S, BK-FD30T — professional solution in the Freeze Dryer category
Pilot Freeze Dryer Large Freeze Dryer BK-FD20S, BK-FD20T, BK-FD30S, BK-FD30T is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Pilot Freeze Dryer Large Freeze Dryer BK-FD20S, BK-FD20T, BK-FD30S, BK-FD30T
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Pilot Freeze Dryer Large Freeze Dryer BK-FD20S, BK-FD20T, BK-FD30S, BK-FD30T fits easily into existing process lines and IT infrastructure.
Areas of application Freeze Dryer
Freeze Dryer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Pilot Freeze Dryer Large Freeze Dryer BK-FD20S, BK-FD20T, BK-FD30S, BK-FD30T allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Pilot Freeze Dryer Large Freeze Dryer BK-FD20S, BK-FD20T, BK-FD30S, BK-FD30T you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Pilot Freeze Dryer Large Freeze Dryer BK-FD20S, BK-FD20T, BK-FD30S, BK-FD30T to the cart or contact our manager. We will help integrate Freeze Dryer into existing processes without downtime and unnecessary costs.
