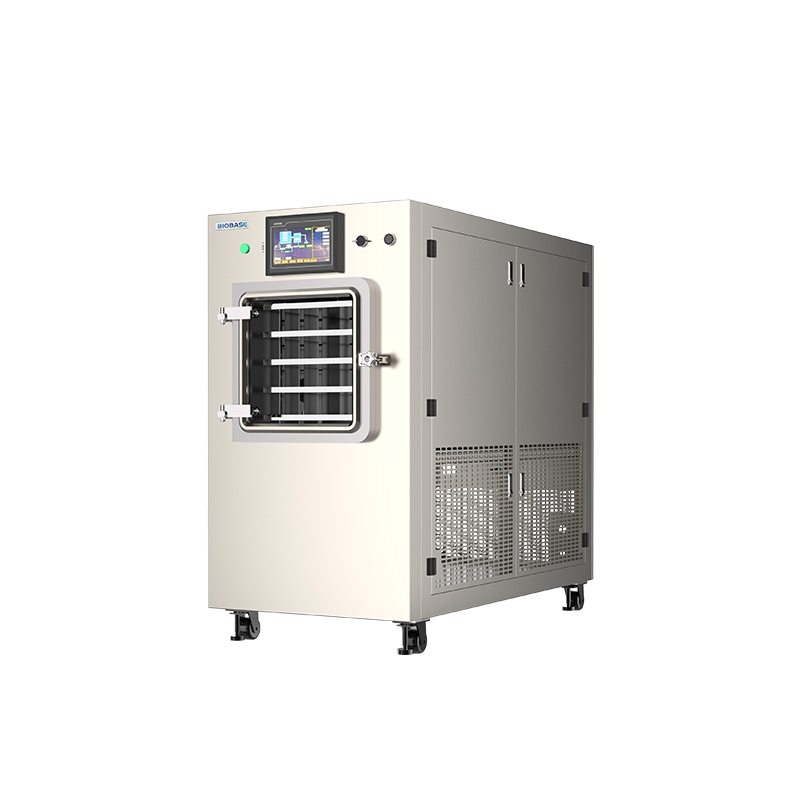

Pilot Freeze Dryer BK-PFD50S BK-PFD50T BK-PFD100S BK-PFD100T

Features:

1. Pre-freezing, drying in-situ, easy to operate, good drying effect.

2. Inflatable(discharge) valve adopts safety diaphragm valve, which can be connected to inert gas source, and is filled with inert gas after drying to extend the shelf life of the material.

3. Freeze-drying curve optimization control technology, which can control the cooling rate during the pre-freezing stage, and control the heating rate of the sample and the vacuum value of the current stage in the sublimation and analytical drying stages.

4. 10-inch true color touch screen.

5. Can save hundreds of process recipes, each group contains 50 temperature control sections to improve process optimization rate.

6. Intelligent data recording system, real-time recording and display of cold trap temperature curve, sample temperature curve, vacuum degree curve, export data can be browsed and printed by computer and various operations to facilitate process optimization and drying effect verification.

7. Flexible manual + automatic control mode, manual mode used for groping process, automatical mode used for batch production.

8. Real-time alarm display and historical alarm query function for fault diagnosis and equipment maintenance.

9. User level and password can be set and decentralized for operation management.

Technical Parameters:

Model	BK-PFD50S		BK-PFD50T	BK-PFD100S	BK-PFD100T
Type	Standard		Stoppering	Standard	Stoppering
Freeze Drying Area	0.7m2		0.5m2	1.03m2	1.15m2
Shelf Temperature	-55℃~+70℃(no-loading)
Cold Trap Temperature	<-80℃(no-loading)
Vacuum Degree	≤1Pa(no-loading)
Water Capture Capacity	≥10kg/24h			≥15kg/24h
Cold Trap Volume	40L
Cold Trap Size(Diameter*H)	Φ300*560mm
Drying Chamber Size(W*D*H)	410*410*560 mm		610*510*560 mm	580*410*560 mm	700*600*740 mm
Shelf  Size(W*D*H)	Shelf: 480*360*18mm		Shelf: 410*410*18mm	Shelf: 480*360*18mm	Shelf: 480*600*18mm
Qty. of Shelf&Tray	Shelf: 4+1,Tray: 4		Shelf: 3+1,Tray: 3	Shelf: 6+1,Tray: 6	Shelf: 4+1,Tray: 4
Sample Loading Capacity(Liquid)	7L		5L	10L	11L
Height Between Trays	70mm		70mm	100mm	100mm
Tray Temperature Difference	±1℃
Refrigerant	R404A+R23
Condenser Cooling Mode	Air cooling
Defrost Mode	Natural defrosting(Option electric defrosting)		Electric defrosting	Electric defrosting	Electric defrosting
Total Qty. of Vial	Ф12mm Ф16mm Ф22mm	/	3705 2058 1050	/	8624 4758 2460
Vacuum Pump	8L/S(29m3/h)			15L/S(54m3/h)
Optional Accessory	Import vacuum pump Vacuum pump anti-return valve Oil mist filtration system Vacuum adjustment device
Silicone Oil Heating Rods Consumption	1000W			1600W
Total Consumption	5.5KW		6.5KW	6.5KW	7.5KW
Power Supply	AC380V, 50Hz/60Hz(Three phase, Standard); AC220V, 50/60Hz(Single phase, Optional)
Main Body Weight	600kg		800kg	700kg	1000kg
External Size(W*D*H)	823*1008*1420mm		911*1405*1983mm	876*1190*1720mm	1823*1144*2014mm
Packing Size(W*D*H) And Gross Weight	Main Body	1223*1300*1720mm/630kg	1300*1700*2220mm/830kg	1276*1400*2020mm/730kg	2200*1444*2314mm/1030kg
	Vacuum Pump	820*350*520mm/75kg
