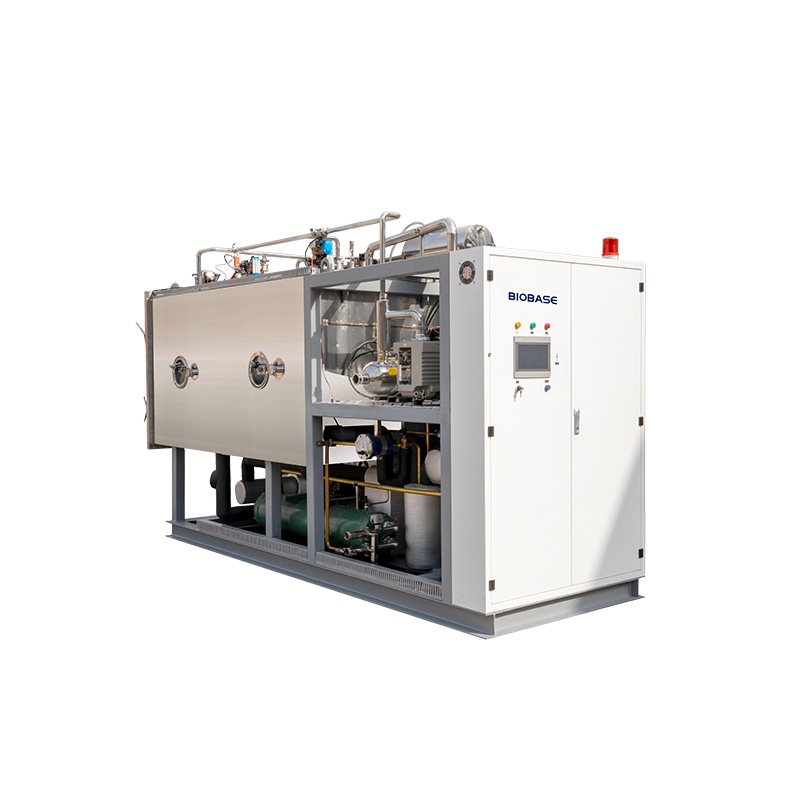

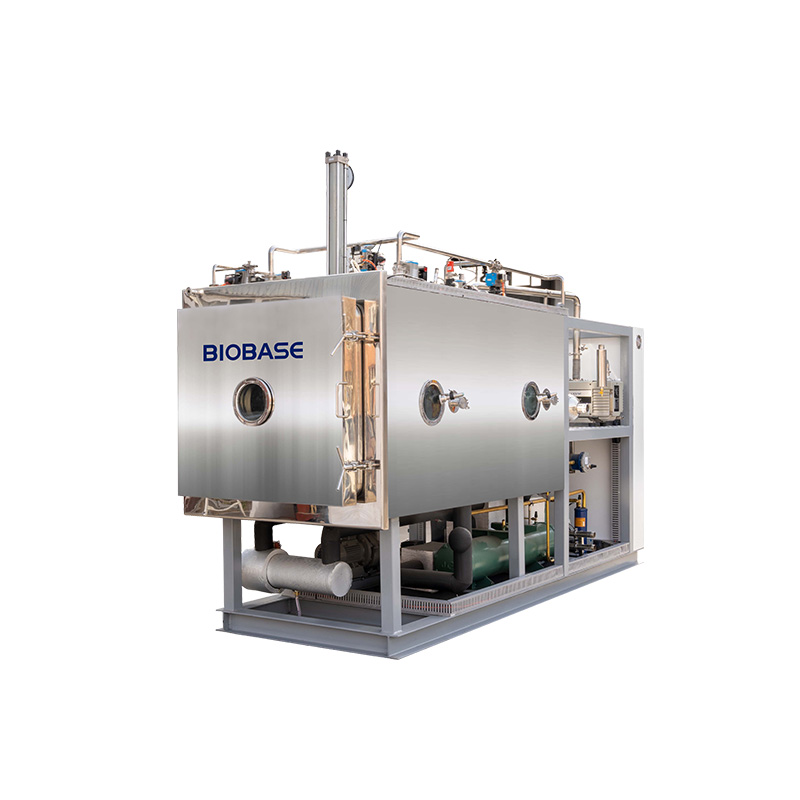

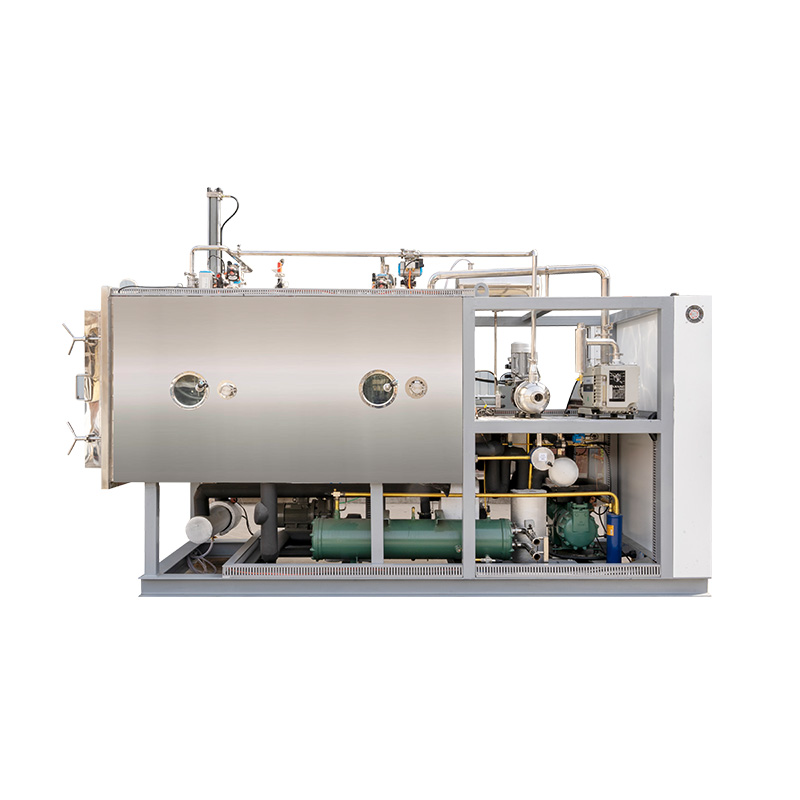

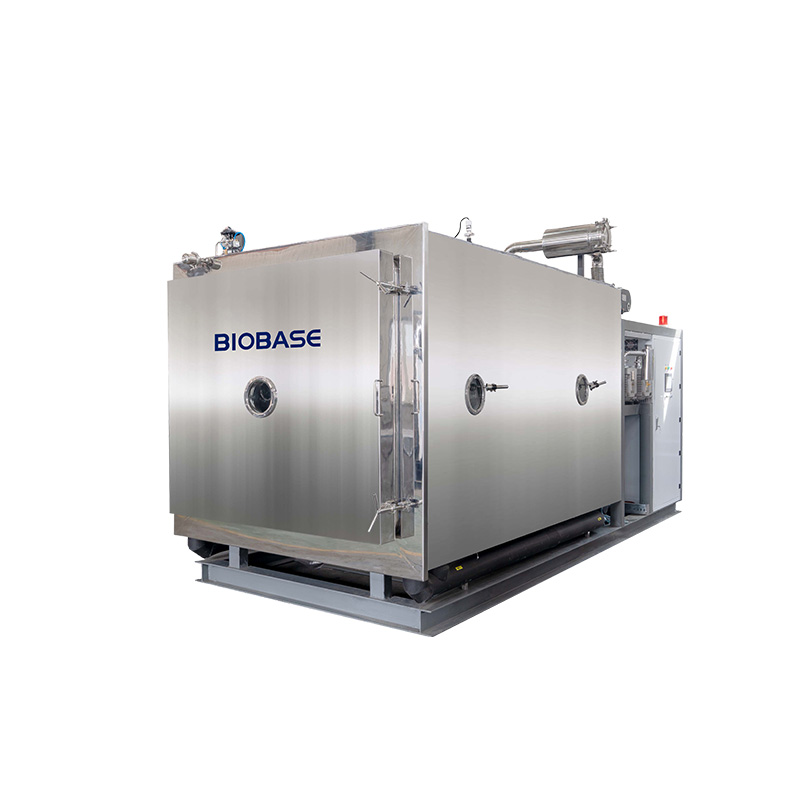

Pharmaceutical Freeze Dryer

Application:

Widely used in vaccine, traditional Chinese medicine, biopharmaceutical, biochemical drugs, biological agents, probiotics, extracts, nutritional supplements, diagnostic reagents, blood products and other freeze-dried products manufacturing.



Advantage:

1. The cabinet is processed in one piece, reducing the risk of leakage. The interior structure of the cabinet is simple, without dead corners, making it easy to clean and sterilize.

2. The plate layers are manufactured using patented welding technology, ensuring temperature uniformity and improving heat exchange efficiency.

3. The steam flow guiding device maximizes the effectiveness of the cold trap area. The cold trap coil has a large and even ice formation.

4. The vacuum system is high-performance, with a large exhaust capacity, significantly improving product sublimation and freeze-drying efficiency.

5. The refrigeration system operates independently in a closed loop. The Bitzer refrigeration unit has strong cooling capacity, low energy consumption, and a large reserve of cooling capacity.

6. Advanced PLC and SCADA systems enable operators to easily manage the freeze-drying system and complete complex freeze-drying process cycles.

7. Provide front-end equipment such as filling machines and automatic material handling systems according to customer requirements.

8. Pharmaceutical freeze dryers can be configured with CIP (Clean-in-Place) and SIP (Sterilize-in-Place) options as needed to meet GMP (Good Manufacturing Practices) requirements.

9. Customization available based on user requirements.



Parameter:

Model	BK-PFD5MS (Standard)	BK-PFD5MT (Stoppering)	BK-PFD10MS (Standard)	BK-PFD10MT (Stoppering)		BK-PFD20MS (Standard)
Freeze Drying Area(m2)	5.25		10.5		20.2
Vacuum Level(Pa)	≤1
Cold Trap Temperature(℃)	-75
Maximum ice capacity(kg/B)	＞100		＞200		＞400
Shelf Temperature Range(℃)	-50~+70
Shelf Size(W*D*H) (mm)	750*1000*20		990*1520*20		1220*1520*20
Number of Shelf Layers(pcs)	7+1		7+1		7+1
Stoppering Mode	/	automatic	/	automatic	/
Total Qty. Of Vial (φ16mm（2ml)）	22540		45360		84942
Dimensions(mm)	4000*1360*2800		5500*1670*2800		6500*1980*2800
Power Supply	AC380V 50Hz
Overall Power	24kw		46kw		85kw



Model	BK-PFD20MT (Stoppering)	BK-PFD30MS (Standard)	BK-PFD30MT (Stoppering)	BK-PFD40MS (Standard)	BK-PFD40MT (Stoppering)
Freeze Drying Area(m2)	20.2	30		41
Vacuum Level(Pa)	≤1
Cold Trap Temperature(℃)	-75
Maximum ice capacity(kg/B)	＞400	＞600		＞800
Shelf Temperature Range(℃)	-50~+70
Shelf Size(W*D*H) (mm)	1220*1520*20	1220*1520*20		1520*1800*20
Number of Shelf Layers(pcs)	7+1	10+1		15+1
Stoppering Mode	automatic	/	automatic	/	automatic
Total Qty. Of Vial (φ16mm（2ml)）	84942	131967		179955
Dimensions(mm)	6500*1980*2800	7500*2280*2900		7500*2280*3300
Power Supply	AC380V 50Hz
Overall Power	85kw	160kw		180kw



Pharmaceutical Freeze Dryer — professional solution in the Freeze Dryer category

Pharmaceutical Freeze Dryer is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Pharmaceutical Freeze Dryer

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Pharmaceutical Freeze Dryer fits easily into existing process lines and IT infrastructure.

Areas of application Freeze Dryer

Freeze Dryer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Pharmaceutical Freeze Dryer allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Pharmaceutical Freeze Dryer you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
