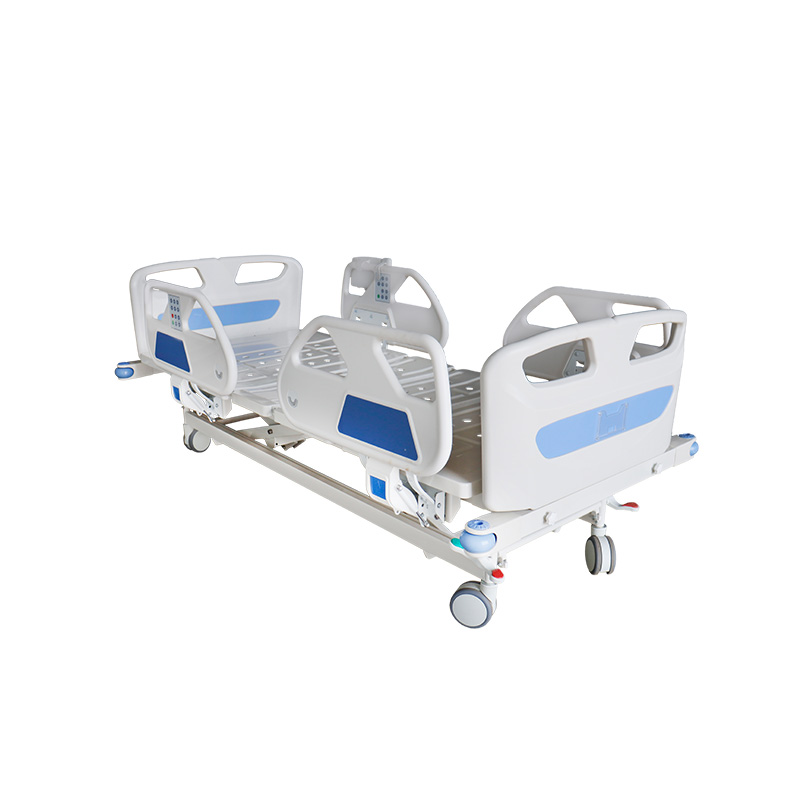

Multifunctional Electric Bed MF402D-22

Features:

1. Bed frame: It is welded with high-quality profile steel; electrostatic spray on the surface, firm, durable, beautiful and generous.

2. Bed board: It is made of high-quality cold-rolled steel plate, one time formed;  electrostatic spray on the surface, anti-corrosion, easy to clean.

3. Bed head and bed foot: They are made of ABS high-quality engineering plastics, one time molded, with beautiful appearance. Plug-in installation, removable and can be inserted into the bedside card, with a protective anti-collision wheel at the bottom.

4. Casters: 125MM luxury central control casters of well-known brand, flexible rotation, synchronous braking, convenient locking, safety and stability.

5. Guardrails: The lifting guardrail and the bed board are lifted synchronously, the angle display shows the angle of each part, the damper controls the speed and noise to lift easily. It provides safety protection to prevent patients from falling, the embedded key structure greatly improves the patient's autonomy, the patient can adjust the required position according to their own needs.

6. Weighing system: Weigh the patient's weight to provide clinical rescue solutions for medical staff.

7. Electronic control system: Motor of well-known brand and control system with stable operation and high safety.

8. Central control screen: Medical staff can control the whole bed function through the central operating system to provide patients with more comfortable postures.



Function:

9. OLED LCD screen: display and calibration

10. Measurement data: storage; pause display function

11. Key: backlight display

12. Measurement display unit switching: kg/lb



Technical Parameter:

Model	MF402D-22
Size (L*W*H) mm	2250*1080*500~800 (±10mm)
Back Panel Adjustable Angle Range	0°~70°
Thigh Panel Adjustable Angle Range	0°~30°
Calf Panel Adjustable Angle Range	0°~10°
Maximum backward tilt angle of the whole bed	≥12°
Maximum forward tilt angle of the whole bed	≥12°
Power supply	220V/110V, 50/60Hz
Safe Load	175kg
Protection Grade	IPX4
Device Class	Category II
Package Size (L*W*H) mm	2200*1200*730mm
Net Weight	175kg
Gross Weight	225kg

Multifunctional Electric Bed MF402D-22 — professional solution in the Hospital Bed category

Multifunctional Electric Bed MF402D-22 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Multifunctional Electric Bed MF402D-22

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Multifunctional Electric Bed MF402D-22 fits easily into existing process lines and IT infrastructure.

Areas of application Hospital Bed

Hospital Bed solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Multifunctional Electric Bed MF402D-22 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Multifunctional Electric Bed MF402D-22 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
