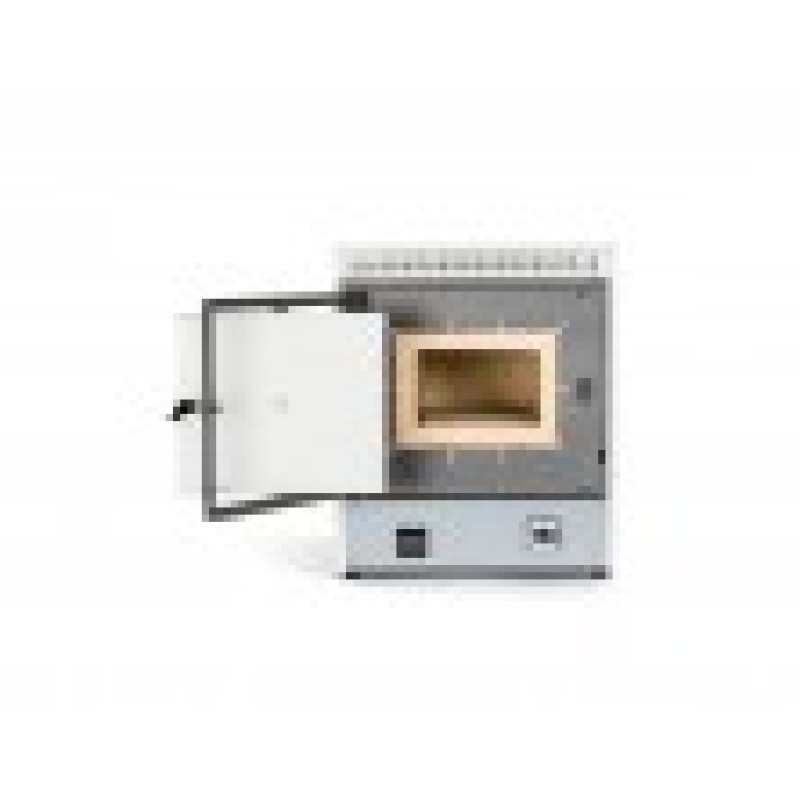

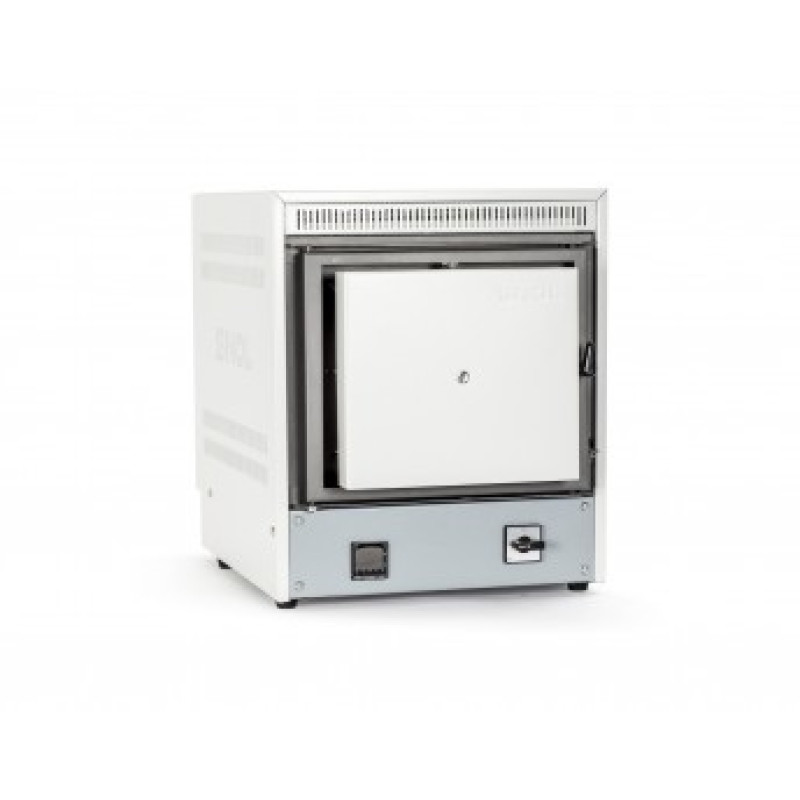

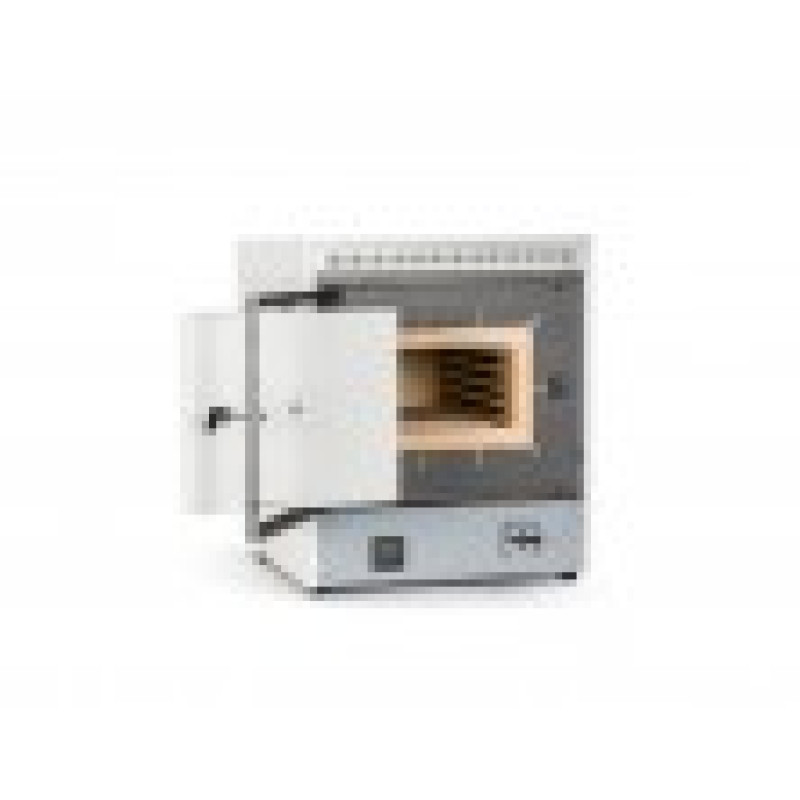

Muffle furnace SNOL 7.2/1100 LSC01
Description
SNOL 7.2/1100 LSC01
High-precision electric furnace witha hard ceramicchamberSNOL 7.2/1100is designed for hardening, tempering, normalizing and other heat treatment up to 1100°C.To eliminate gases or smoke released during heat treatment, the product can be additionally equipped with an exhaust system.The furnace is ideal for scientific laboratories, educational institutions, medicine and industry.
BASIC MODEL
Solid ceramic chamber,
Partially exposed heating elements on four sides around the chamber,
Outer casing made of sheet metal, powder coated in gray,
The doors open sideways,
Door switch,
The control panel is located under the oven part,
Microprocessor - temperature controller,
Ceramic bottom plate,
Low electricity consumption,
high-temperature inertness,
High degree of accuracy.
OPTIONS
Process observation window (o 35 mm) up to 1100 ° C
Chimney with fan for forced air extraction
Additional ceramic plates
Hummer
Digital timer
Overheating protection
Data logger
RS232/RS-485/USB interface
Temperature measurement calibration
System
Stove support table
Additional warranty 1 year
Specification
Technical specifications
Size
SNOL 7.2/1100 LSC01
Useful volume
Liter
7.2
Rated power not more than
kW
3.3
Rated supply voltage
IN
230
Rated frequency
Hz
50
number of phases
-
1
Operating temperature range
°C
T+10-1100
Maximum temperature
°C
1100
Working chamber material
-
Ceramic
Maximum heating time (free)
Min.
150
Temperature stability in the working chamber at nominal temperature in a thermostatic state without charge no more than
±°C
1
Temperature uniformity in the working space at nominal temperature in a steady state without charge not more than
±°C
10
Dimensions of the furnace working chamber:
width
mm
200
depth
mm
300
height
mm
130
External dimensions of the furnace:
Muffle furnace SNOL 7.2/1100 LSC01 — professional solution in the Муфельные печи category
Muffle furnace SNOL 7.2/1100 LSC01 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Muffle furnace SNOL 7.2/1100 LSC01
Reliability and durability: industrial-grade design and materials withstand intense loads.
Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
Process efficiency: optimizing staff time and increasing productivity at every stage.
Compliance with standards: manufactured taking into account current international requirements for the business segment.
Ease of integration: Muffle furnace SNOL 7.2/1100 LSC01 fits easily into existing process lines and IT infrastructure.
Areas of application Муфельные печи
Муфельные печи solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Muffle furnace SNOL 7.2/1100 LSC01 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
Industrial reliability of components and assemblies for long-term trouble-free operation.
Stable parameters that ensure repeatability of results and product quality.
Energy efficiency and optimized life cycle cost of ownership.
Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Muffle furnace SNOL 7.2/1100 LSC01 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Muffle furnace SNOL 7.2/1100 LSC01 to the cart or contact our manager. We will help integrate Муфельные печи into existing processes without downtime and unnecessary costs.
