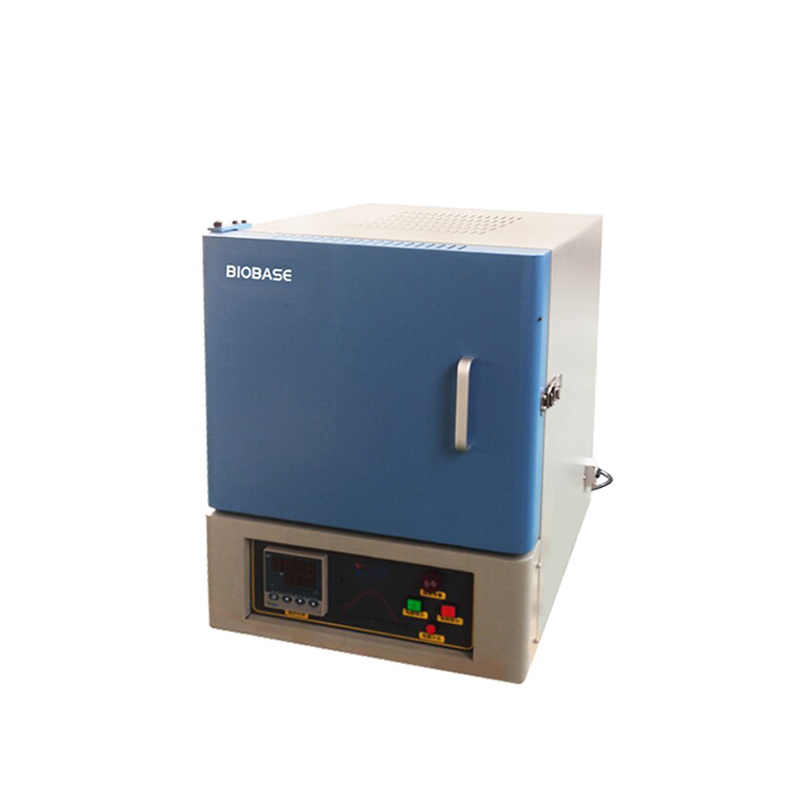

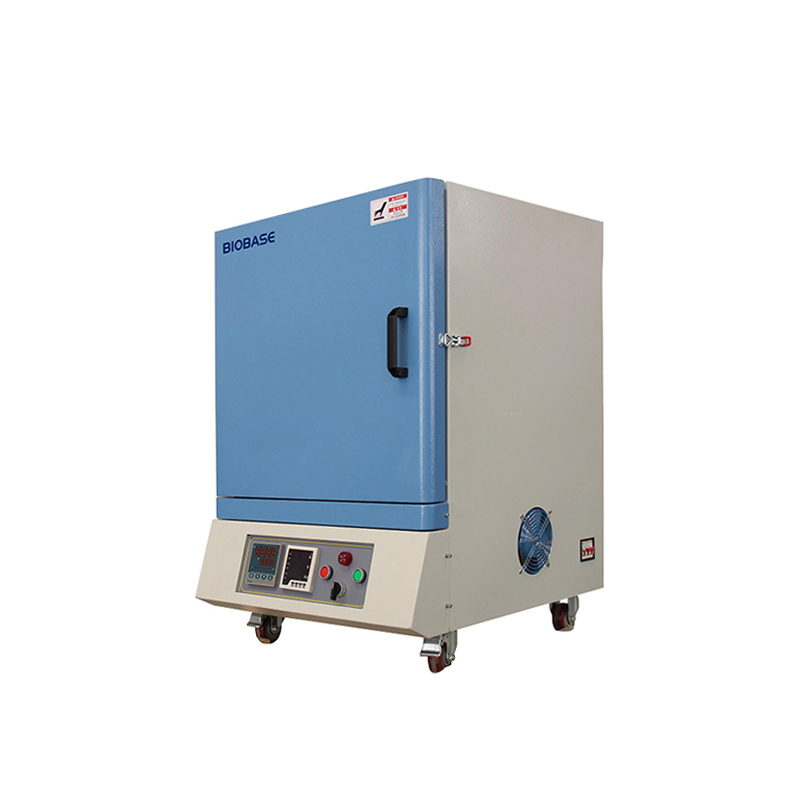

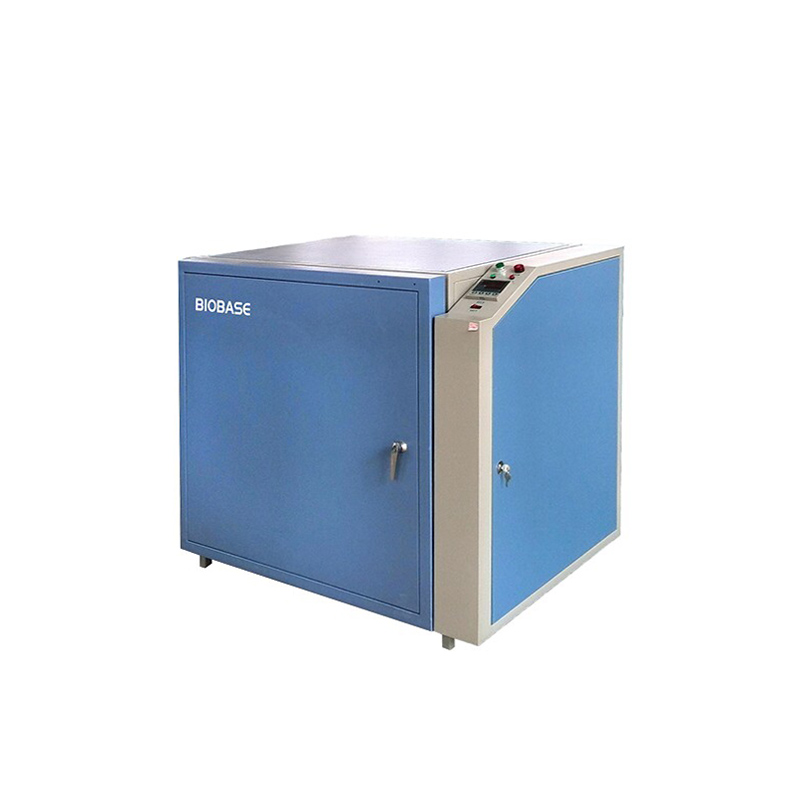

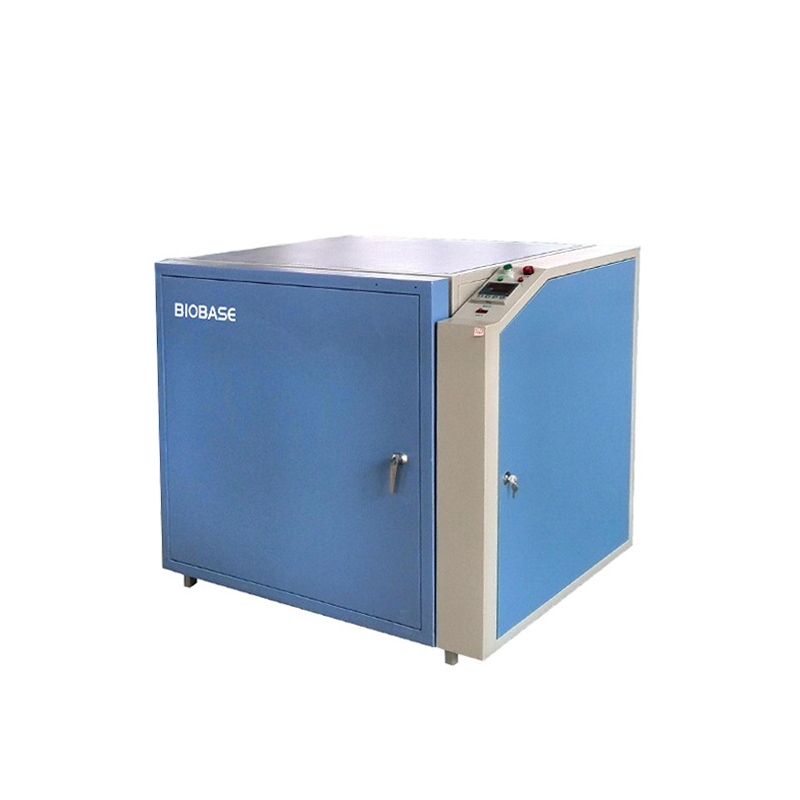

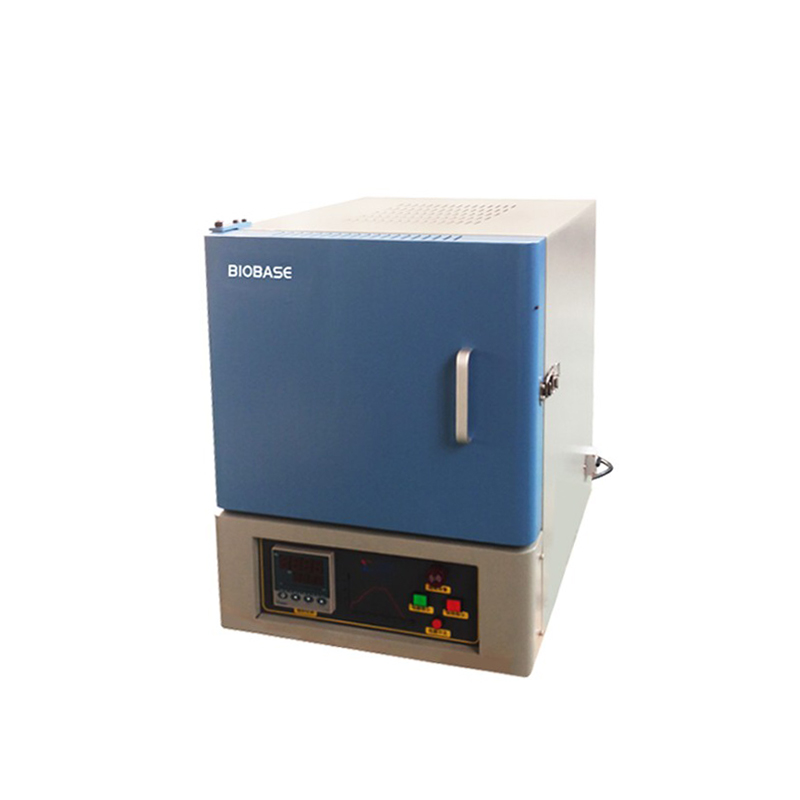

Muffle Furnace MX Series

Features:

1. Program controlling temperature for TP series.

2. Heating wire is set in four sides of the furnace, anti-corrosion, prevent contamination.

3. Special insulation design, low shell temperature.

4. SCR control, PID parameter self-setting.

5. Low energy consumption.

6. Multiple safety protection design:
Over-temperature alarm;

Power off when over-temperature/over-load. Manual or automatic switch without interference;

Built-in parameter password control function.

Technical Parameters:

Model		MX6-10T/TP	MX8-10T/TP	MX16-10T/TP	MX30-10T/TP	MX6-12T/TP	MX8-12T/TP	MX30-12T/TP
Max. Temp.(℃)		1000				1200
Capacity(L)		6	8	16	30	6	8	30
Temp. Accuracy		±1℃
Consumption(KW)		2.8	4	6	10	2.8	4	10
Power Supply		220/380V±10%, 50/60Hz; (110V only suitable for MX6-10T/TP)
Heating Rate		0~30℃/min
Rising Time(Empty)		30 minutes
Temp. Uniformity		±5℃
Material		External material: Cold rolled steel carbon steel spraying Internal material: Ceramic inner chamber
Heating Element		Nickel chromium alloy wire
Temp. Control		Intelligent temperature controller
Optional	Accessory	Temperature measuring hole; Exhaust chimney; Furnace bottom plate
	Functions	Automatically power off once the door is opened; 30 programmable periods(only for T Type)
Internal Size(W'D*H)mm		180*230*150	200*300*120	250*400*160	300*500*200	180*230*150	200*300*120	300*500*200
External Size(WD*H)mm		500*510*540	500*580*660	550*690*700	770*820*580	480*500*660	500*580*660	770*820*580
Package Size(WD*H)mm		630*700*870	630*800*870	680"910*870	870*1110*990	630*700*870	630*800*870	870*1110*990
Gross Weight(kg)		82	84	111	146	82	84	146



Model		MX8-13T/TP	MX10-13T/TP	MX6-16TP	MX11-16TP	MX6-17TP	MX11-17TP
Max. Temp.(°C)		1300		1600		1700
Capacity(L)		8	10	6	11	6	11
Temp. Accuracy		±1℃
Consumption(KW)		4		6	8	5	8
Power Supply		220/380V±10%, 50/60Hz
Heating Rate		0~30°C/min
Rising Time(Empty)		30 minutes
Temp. Uniformity		±5°C
Material		External material: Cold rolled steel carbon steel spraying    Internal material: Ceramic inner chamber
Heating Element		Nickel chromium alloy wire
Temp. Control		Intelligent temperature controller
Optional	Accessory	Temperature measuring hole; Exhaust chimney; Furnace bottom plate
	Functions	Automatically power off once the door is opened; 30 programmable periods(only for T Type)
Internal Size(W*D*H)mm		200*300*120	200*300*180	150*300*120	200*300*180	150*300*120	200*300*180
External Size(W*D*H)mm		630*650*730	600*640*850	650*750*1000	700*750*1200	650*750*1000	700*750*1200
Package Size(W*D*H)mm		710*910*920	770*860*1050	920*800*1150	1100*1050*1350	800*920*1150	1100*1050*1350
Gross Weight(kg)		119	130	237	280	237	280





Muffle Furnace MX Series — professional solution in the Muffle Furnace category

Muffle Furnace MX Series is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Muffle Furnace MX Series

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Muffle Furnace MX Series fits easily into existing process lines and IT infrastructure.

Areas of application Muffle Furnace

Muffle Furnace solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Muffle Furnace MX Series allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Muffle Furnace MX Series you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
