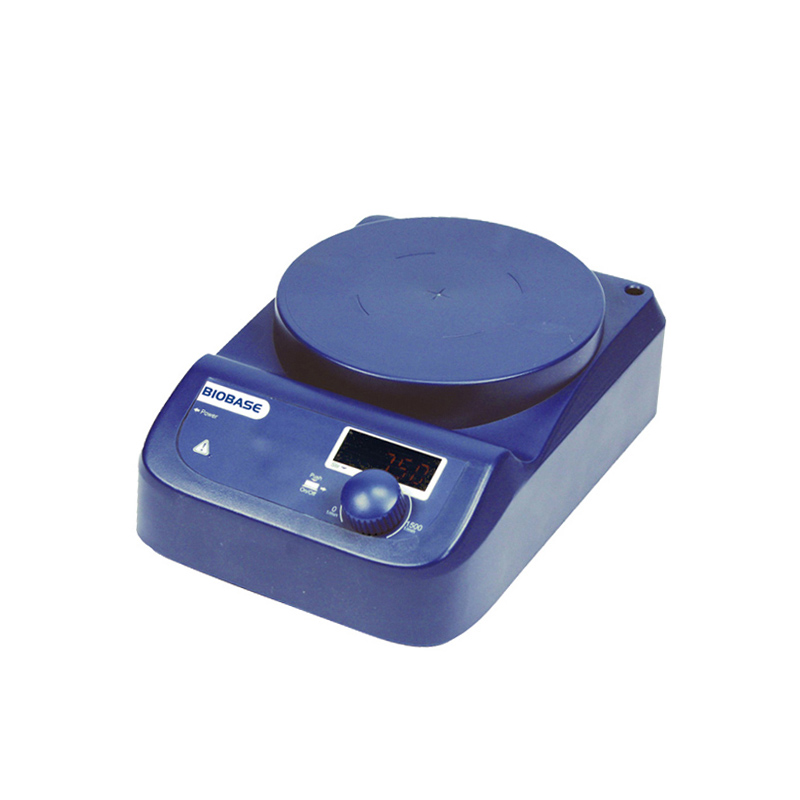

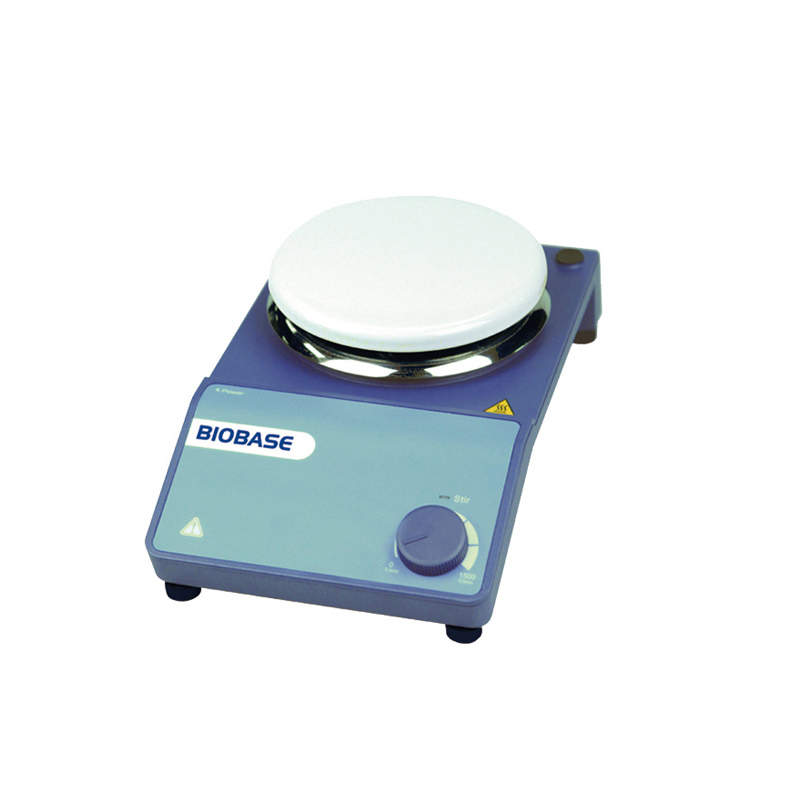

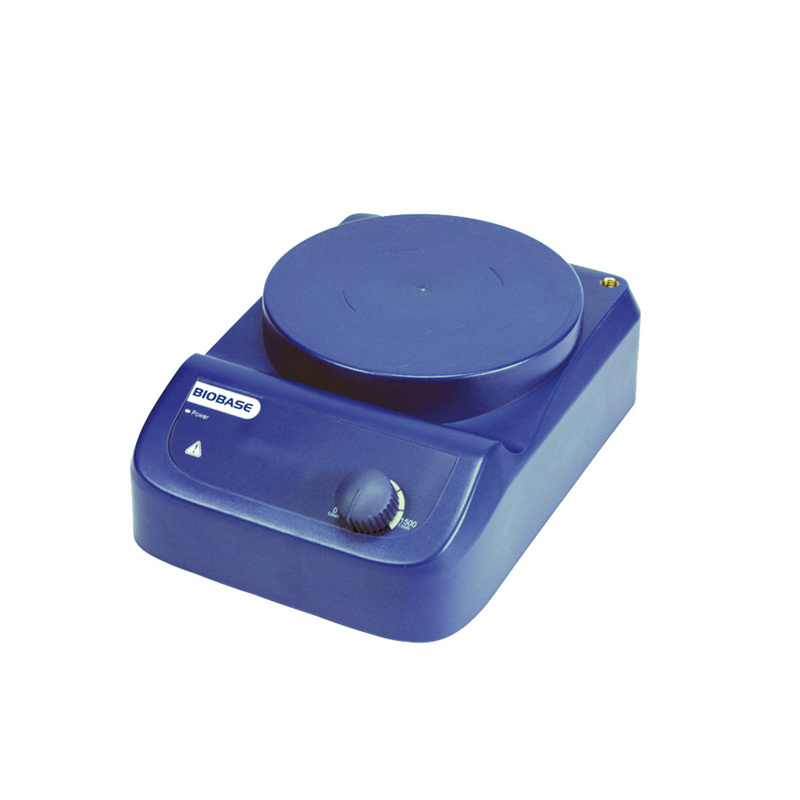

Magnetic Stirrer MS Series

Technical Parameters:

Model	MS-S	MS-PA	MS-PB
Work Plate Size	Ø135mm(5 inch)
Item No.	8030211000	8030284200	8030294000
Work Plate Material	Stainless steel with ceramic coated	Nylon+GF
Max. Stirring Capacity	20L	3L
Motor Type	Brushless DC motor
Motor Input	18W	5W
Motor Output	10W	3W
Speed Range	0~1500rpm
Speed Display	Scale	LED	Scale
Max. Stirrer Bar Length	80mm	50mm
Working Environment	5~40°C, 80%RH	10~40°C, 80%RH	5~40°C, 80%RH
Protection Type	IP21	IP42
Power Consumption	30W	15W	10W
Power Supply	AC110~240V, 50/60Hz
External Size(W*D*H)	160*280*85mm	150*260*80mm
Package Size(W*D*H)	470*250*240mm	300*240*220mm
Gross Weight	3kg

Magnetic Stirrer MS Series — professional solution in the Stirrer category

Magnetic Stirrer MS Series is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Magnetic Stirrer MS Series

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Magnetic Stirrer MS Series fits easily into existing process lines and IT infrastructure.

Areas of application Stirrer

Stirrer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Magnetic Stirrer MS Series allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Magnetic Stirrer MS Series you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
