Features:
1. Horizontal structure of grinding pots.
2. Special gear with low noise.
Technical Parameters:
Model | BKBM-H2L |
Capacity | 2L |
Volume of Each Capacity | 50~500ml |
Pot Quantity | 4pcs |
Running Time Range | 1~9999min |
Reciprocal Running Time | 1~999min |
Adjustable Speed Revolution | Revolution | 35~335rpm |
Rotation | 70~670rpm |
Noise | 60±5dB |
Transmission Mode | Gear drive |
Working Mode | 2 or 4 pots can be used each time |
Maximum Sample Volume(Material+Grinding Ball) | 2/3 of the volume of the ball mill tank |
Feed Size | Soft and Crispy material<10mm, Other materials<3mm |
Out-put Granularity | Minimum Granularity can be reached to 0.1pm |
Adjusting Mode of Rotate Speed | Frequency converter with stepless speed regulation |
Speed Control Mode | Frequency control |
Consumption | 0.75KW |
Power Supply | AC110/220V±10%, 50/60Hz |
External Size(W*D*H)mm | 700*570*520 |
Package Size(W*D*H)mm | 800*610*670 |
Net Weight(kg) | 86 |
Gross Weight(kg) | 150 |
Note: Both pot and ball are optional. For a ball mill with a capacity of 2L, if the matching mill pot specification is 25ml or 50ml, you need to purchase a base holder separately. |
Optional:

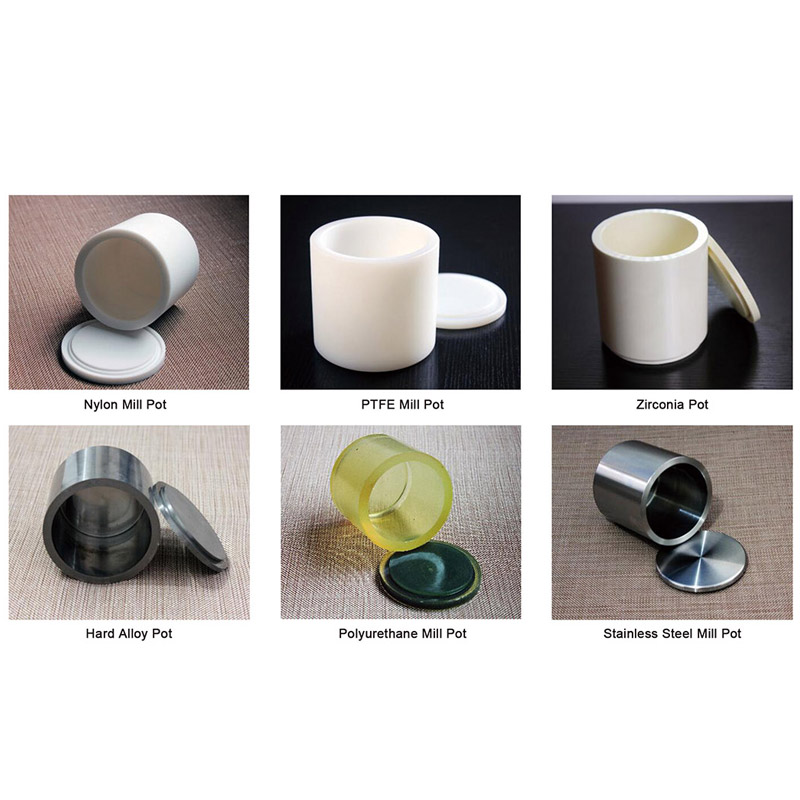

Selection of pot's material: Pot's material has no pollution to the grinding materials and no effect to the appearance of powder.
Technical Parameters:
Category&Request of Grinding Material | Reference for Mill Pots' Material Option |
Soil and other Materials which impurities are not allowed to be brought. | Agate Pot |
Metal and non-metal materials which impurities are not allowed to be brought. | Zirconia Pot |
High hardness materials like diamond, hard alloy. | Hard Alloy Pot |
Strong acid and strong alkali substances, and materials under high temperature. | PTFE Mill Pot |
Iron and steel minerals, impurities are not highly sensitive materials. | 304 Stainless Steel Mill Pot |
Pigment material, and materials which can be processed at high temperature. | Nylon Mill Pot |
Containing aluminum material like ceramic glaze. | Corundum Pot |
Electronic material like lithium battery. | Polyurethane Mill Pot |
Easily oxidized materials which need to be protected by special gas. | Vacuum Mill Pot |

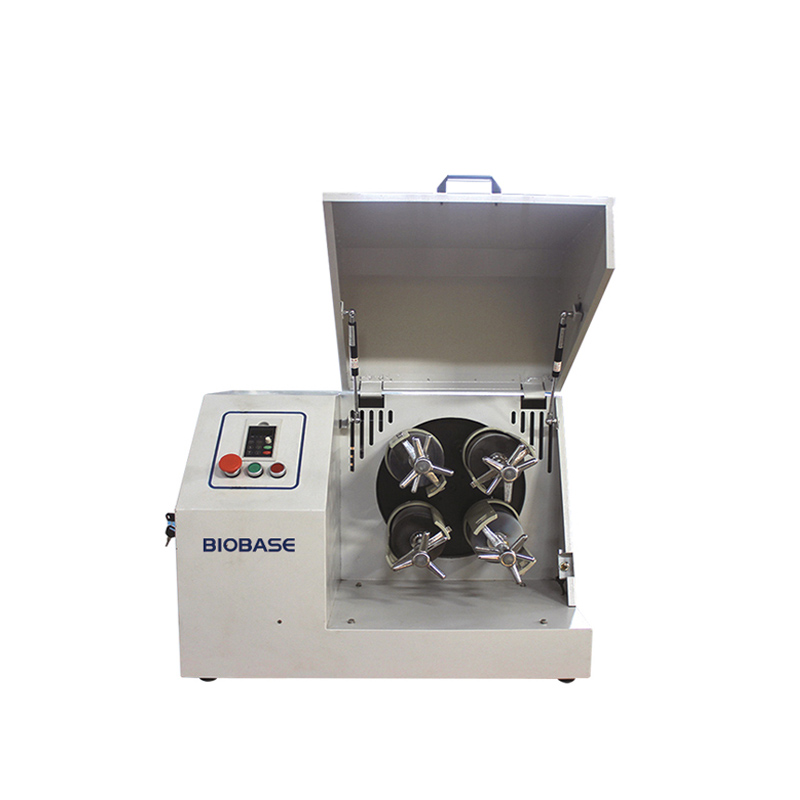

Light Horizontal Planetary Ball Mill — professional solution in the Ball Mill category
Light Horizontal Planetary Ball Mill is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Light Horizontal Planetary Ball Mill
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Light Horizontal Planetary Ball Mill fits easily into existing process lines and IT infrastructure.
Areas of application Ball Mill
Ball Mill solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Light Horizontal Planetary Ball Mill allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Light Horizontal Planetary Ball Mill you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Light Horizontal Planetary Ball Mill to the cart or contact our manager. We will help integrate Ball Mill into existing processes without downtime and unnecessary costs.
