Features:
1. Microcomputer control, test parameters can be set, automatic testing process.
2. Hold time, test pressure, and pressure replenishment ratio can all be pre-set for one-touch operation throughout the testing process.
3. Sealed chamber is made of high quality plexiglass tubing with 15mm thickness.
4. Automatic pressure release and purge upon completion of testing, saving operational time.
5. Imported pressure sensors paired with precision relays for rapid response and stable pressure control. Integrated calibration module supports multi-point calibration for third-party verification.
6. The instrument features an integrated compressed air filtration and pressure regulation system, with an external design for easy drainage and debris removal, ensuring the safe operation of internal components.
7. To ensure uninterrupted operation, the instrument utilizes a three-power-source independent supply mode: separate power supplies for the main controller, pressure reception module, and pressure control module.
Technical Parameters:
Model | BK-ST134 |
Vacuum Degree Range | -90~0kPa |
Vacuum Accuracy Class | Class 0.5 |
Resolution | 0.1kPa |
Pressure Acquisition Rate | 2ms |
Pressure Replenishment Response Speed | 5ms |
Original Air Pressure | 0.5~0.7MPa(User-supplied, optional) |
Original Air Connection | Φ6 polyurethane pipes |
Control Method | Microcomputer control, automatic test procedure |
Display | LCD display |
Vacuum Storage Time | 0~6000s(Can be enlarged) |
Data Output Mode | Thermosensitive or needle type printer(Optional) |
Effective Size of Vacuum Chamber | Standard: Φ270*210mm(H) Optional: Φ360*585mm(H) and Φ460*330mm(H) Note: Customization is available for other sizes |
Power Supply | AC220V, 50/60Hz; 110V, 50/60Hz(Optional) |
Standard Accessories | Main machine, vacuum chamber, air tube, technical documents |
Optional Accessories | Air compressor, sample holder |
External Size(W*D*H) | Main machine: 420*320*120mm Vacuum chamber: 300*350mm(H)(Standard) |
Package Size(W*D*H) | Main machine: 530*430*250mm Vacuum chamber: 370*370*420mm |
Net Weight | 16kg |
Gross Weight | 23kg |

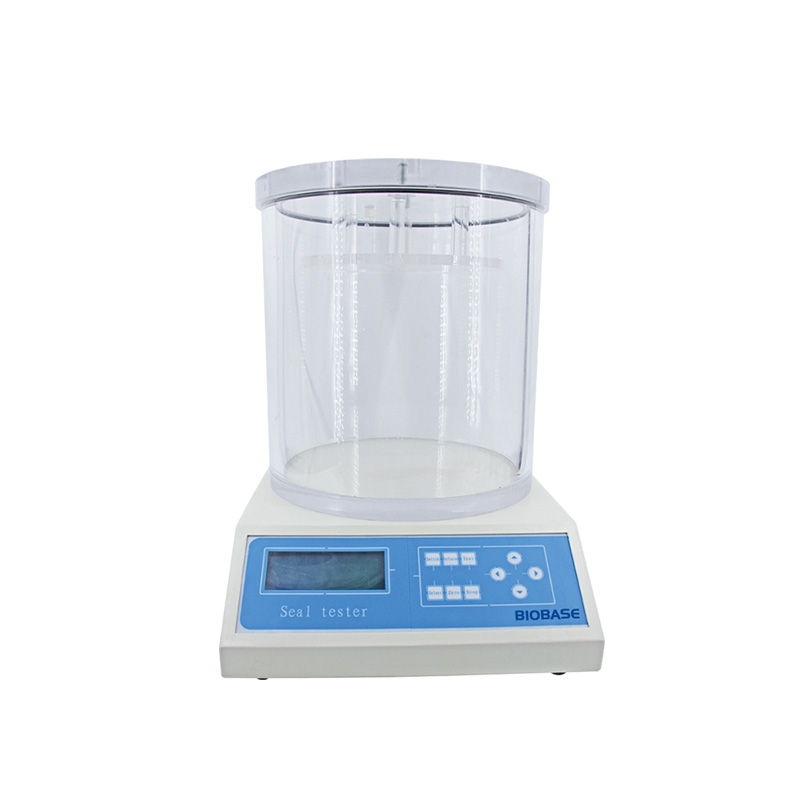

Leakage Tester-BK-ST134 — professional solution in the Leakage Tester category
Leakage Tester-BK-ST134 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Leakage Tester-BK-ST134
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Leakage Tester-BK-ST134 fits easily into existing process lines and IT infrastructure.
Areas of application Leakage Tester
Leakage Tester solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Leakage Tester-BK-ST134 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Leakage Tester-BK-ST134 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Leakage Tester-BK-ST134 to the cart or contact our manager. We will help integrate Leakage Tester into existing processes without downtime and unnecessary costs.
