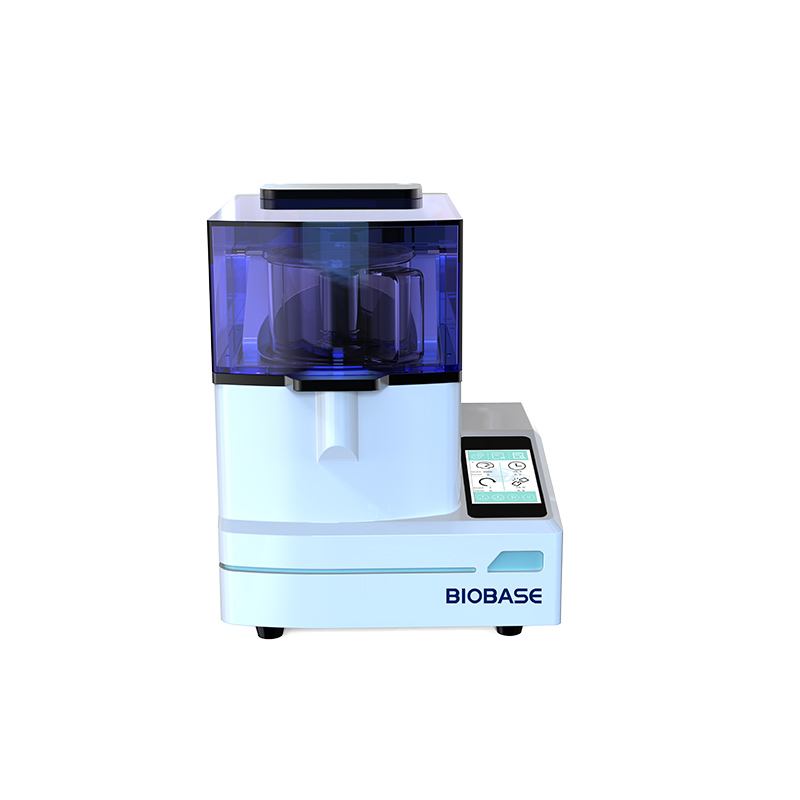

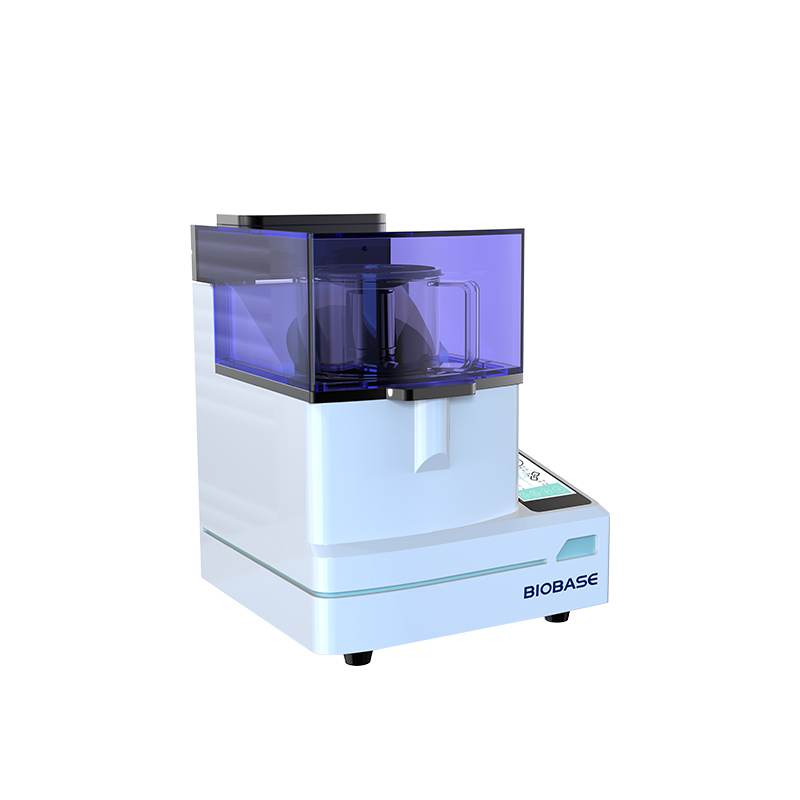

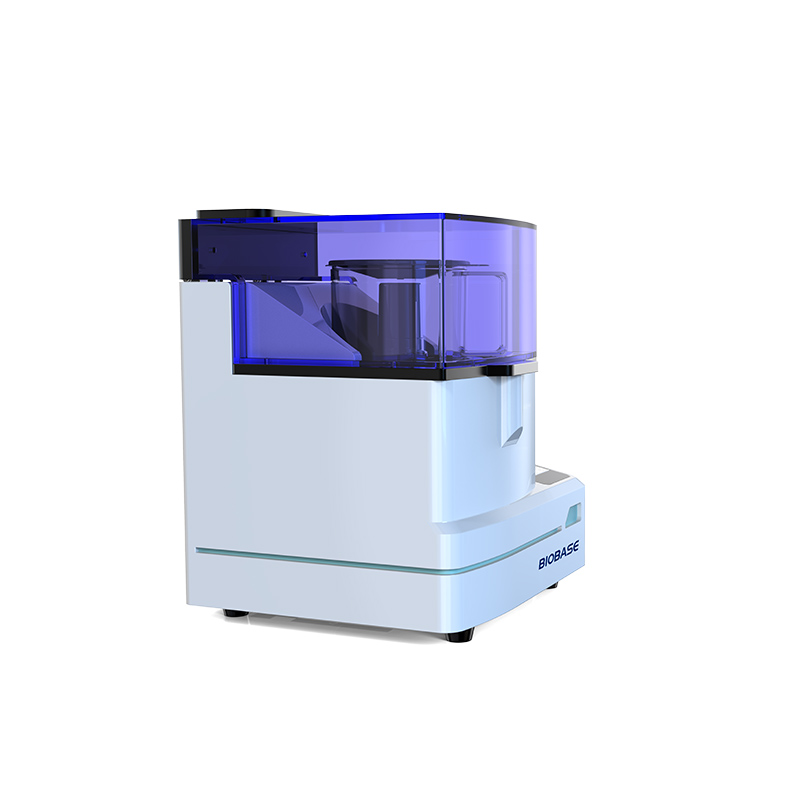

Knife Mill BK-KM800

Principle:

The blade is positioned at the center of the bottom of the grinding cup, with a certain height spacing maintained between the blades. Driven by a motor with a power of up to 2000 watts, the blade begins to rotate. Through the cutting action of the sharp steel blade, reliable grinding and homogenization effects are achieved, enabling both coarse and fine grinding of samples. Even difficult-to-process samples can be pulverized into homogenized samples suitable for analysis in just tens of seconds.

Application:

Agriculture: Plant seeds, grains, feed, etc.

Biology: Animal tissues, plant leaves, seedlings, and buds, etc.

Food: Melons, fruits, vegetables, frozen foods, preserved fruits, dried nuts, meat, fish, etc.



Features:

1. The electronic control system is equipped with click function, program settings, method memory and storage functions, effectively ensuring the repeatability and homogenized sample preparation results.

2. Simple to operate with fast startup.

3. Adopts an industrial motor, delivering powerful performance(2000 watts) with controllable rotation speed.

4. Features digital display for parameter settings and can store 20 groups of commonly used programs.

5. Offers grinding cups made of various materials for selection, and accessories can undergo high-temperature and high-pressure sterilization.

6. The instrument is equipped with a safety protection lock to ensure operator safety, ensuring safe and reliable operation.

7. The serrated blade enables better homogenization of hard samples and high-fat samples, improving grinding efficiency.

8. Runs at high speed for fast grinding, with forward/reverse rotation modes and an intermittent mode(interruptible).

9. Can be configured with a gravity top cover and a weight-reduction top cover to compress the grinding chamber space, preventing samples from slipping and sticking to the container’s inner wall due to high-speed rotation, thus avoiding incomplete sample crushing.

10. Can be configured with a gravity top cover featuring an overflow channel. When processing samples with extremely high liquid content, this top cover ensures the sample is guided back to the grinding chamber’s center via the overflow channel during grinding. This allows the sample to be repeatedly cut and crushed while preventing outflow.



Technical Parameters:

Model	BK-KM800
Sample Types	Dry, soft, elastic, fibrous, medium-hard, containing fat, water, or oil
Sample Volume	≤700mL
Speed	1000~15000rpm
Final Sample Size	≤300μm
Grinding Time Setting	0~9999s adjustable
Knife Head	Stainless steel knife head, stainless steel serrated knife head, titanium knife head
Rotor Material	Stainless steel, titanium
Operating Modes	Forward/reverse rotation mode, intermittent mode
Storage Parameters	20 groups
Power Supply	AC220V, 50/60Hz(Standard); AC110V, 60Hz(Optional, External Transformer)
Consumption	2000W
Accessories	Grinding cup: Stainless steel, PP, PC(capable of high-temperature and high-pressure sterilization, choose one of three as standard)
External Size(W*D*H)mm	400*350*550
Packing Size(W*D*H)mm	410*400*590
Net Weight(kg)	23
Gross Weight(kg)	28

Knife Mill BK-KM800 — professional solution in the Ball Mill category

Knife Mill BK-KM800 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Knife Mill BK-KM800

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Knife Mill BK-KM800 fits easily into existing process lines and IT infrastructure.

Areas of application Ball Mill

Ball Mill solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Knife Mill BK-KM800 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Knife Mill BK-KM800 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
