IKA Plate (RCT digital)

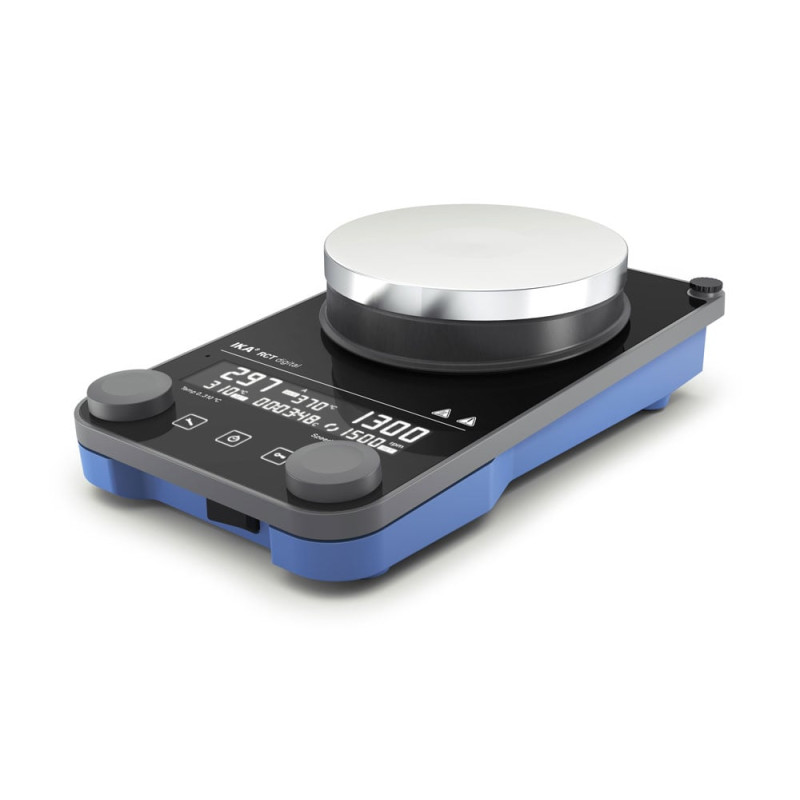

Magnetic stirrer IKA Plate (RCT digital)

The IKA Plate Stirrer (RCT digital) has a round top made of aluminum alloy. It stirs volumes up to 20 L (H2o) and operates at speeds from 50 to 1500 rpm.

Some of its features: IKA emphasizes ease of use through simple design: reduced shapes and controls correspond to the modernity of smartphones: IKA not only focuses on tempered glass due to visibility, chemical resistance and safety, but also visually changes the game of magnetic stirrers with glass surfaces. The IKA Plate Stirrer (RCT digital) improves over time with regular firmware updates. Using Alnico magnet technology, the IKA Plate Stirrer (RCT digital) achieves excellent temperature stability and high residual induction. It also provides maximum vortex. The built-in timer and counter function supports the control of kinetics and sensitive reactions; the IKA SmartTemp® function protects users intelligently and predictably.

Automatic switch-off of the magnetic stirrer if the connected external temperature sensor is not immersed in the medium. The function is selectable, the waiting time is adjustable (Error 5). The PT 1000.60 temperature sensor is included in the delivery.

Delivery set:

• IKA Plate (RCT digital)
• PT 1000.60 Temperature sensor
• IKAFLON® 30*
• IKAFLON® 40*
• Screwdriver
• USB A-B Cable

Technical specifications:

Number of positions for mixing: 1

Maximum amount of mixing liquid per mixing position (H2O) [l]: 20

Maximum load [kg]: 25

Motor power [W]: 9

Direction of rotation: right / left

Speed setpoint indicator: LCD display

Actual speed value indicator: LCD display

Speed adjustment: rotary knob

Speed range [rpm]: 50 - 1500

Speed setting accuracy [rpm]: 10

Stirrer length [mm]: 30 - 80

Self-heating of the nozzle at maximum stirring (speed: 22°C/duration: 1 h) [K]: +17

Thermal power [W]: 600

Temperature setpoint indicator: LCD display

Actual temperature value indicator: LCD display

Temperature unit: °C / °F

Heating temperature range [°C]: Room temp. + self-heating of the device - 310

Heating control: Rotary knob

Temperature setting range [°C]: 0 - 310

Heating plate temperature setting resolution [K]: 1

Connection for external temperature sensor: PT1000, ETS-D5, ETS-D6

Ambient temperature setting resolution [K]: 1

Adjustable safety circuit [°C]: 50 - 370

Setting plate material: Aluminum alloy

Plate setting dimensions [mm]: Ø 135

Automatic reverse rotation: yes

Periodic mode: yes

Viscosity trend measurement: yes

Mixing plate damage detection: no

Timer: yes

Timer display: LCD display

Min. time setting [s]: 1

Max. time setting [min]: 143940

pH measurement: no

Graphics function: no

Programs: no

Sensor detection in the environment: yes

Weighing function: no

Adjustment plate illumination: no

Speed deviation (no load, rated voltage, at 1500 rpm + 25 °C) [%]: ±2

Heating rate (1 l H2O at H1500) [K/min]: 6.5

Heating plate temperature control accuracy (at 100°C) [K]: ±5

Temperature control accuracy with external... PT1000 (500 ml H2O in 600 ml beaker, 40 mm stirrer, 600 rpm, 50°C) [K]: ±0.5

Temperature control accuracy with ETS-D5 (500 ml H2O in 600 ml beaker, 40 mm stirrer, 600 rpm, 50°C) [K]: ±0.5

Temperature control accuracy with ETS-D6 (500 ml H2O in 600 ml beaker, 40 mm stirrer, 600 rpm, 50°C) [K]: ±0.2

Dimensions (W x H x D) [mm]: 160 x 85 x 270

Weight [kg]: 2.4

Permissible ambient temperature [°C]: 5 - 40

Permissible relative humidity [%]: 80

Protection class according to DIN EN 60529: IP 42

RS 232 Interface: yes

USB interface: USB-B

Analog output: no

Voltage [V]: 220 - 230 Frequency [Hz]: 50/60

Input power [W]: 650

Standby input power [W]: 1.6
