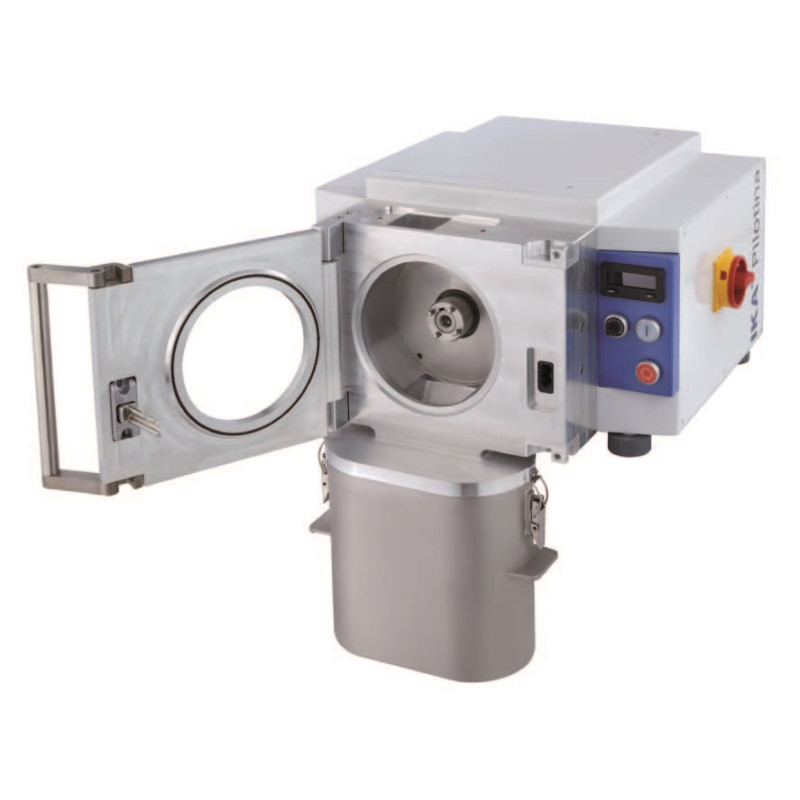

IKA Pilotina MU - universal mill for grinding dry products

IKA Pilotina is a mill for grinding dry products in pilot volumes, available in three different configurations:

IKA Pilotina MU - universal mill

IKA Pilotina MU is the perfect combination of the qualities of MC and MI mills.

If you have a variety of materials that require both a cutting and impact mill to grind, the IKA Pilotina MU will be the best choice.

The modular design of the MU mill allows you to easily and quickly change the impact rotor to the cutting rotor and vice versa. Advantages of using the MU: one machine, two grinding principles, without any compromises on the quality of grinding and the final result. Thanks to the powerful 3 kW frequency-controlled drive with a digital display, the peripheral speed of the tool can be adjusted according to the desired grinding (crushing) process.

Regardless of the configuration of the mill, it is distinguished by:

ease of operation

Reproduces grinding quality

Adaptation to customer requirements

Security

All of these characteristics apply to all configurations of this dry grinding system.

Pilotina MC, based on a cutting mechanism, and Pilotina MI, based on a percussion mechanism, are very easy to operate. After turning on the main toggle switch that regulates the connection to the mains, further operation is connected only with two buttons responsible for starting and stopping the device. The size of the final particles is regulated by the size of the holes in the filters. They can be easily installed or replaced manually without additional tools. Thanks to these simple actions, the desired product of consistently high quality is guaranteed.

For a wide range of dry products, the Pilotina MU universal mill is recommended. This model is capable of both cutting and crushing the material. In addition, the Pilotina MU has the ability to adjust the speed of rotation of the grinding tool in accordance with the properties of the processed material.

But, regardless of the customer's requirements, user safety comes first at IKA! That is why the Pilotina can only start working with the door closed, and it cannot be opened until the machine has come to a complete stop. The design prevents the user from coming into contact with the grinding tool during loading and unloading.

Of course, IKA offers a wide range of accessories for these shredders. Let us know what you would like to purchase for your work and we will fulfill your wishes.

Technical data

Engine power 1.5 kW

Rotation speed 3000 rpm

Throughput approx. 80 kg/h

Tip speed 22 m/s

Charging strength, max. 6 Mohs

Charging size, max. approx. 25 mm

Protection degree IP 55

IKA Pilotina MU - universal mill for grinding dry products — professional solution in the Дробильное оборудование category

IKA Pilotina MU - universal mill for grinding dry products is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why IKA Pilotina MU - universal mill for grinding dry products

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: IKA Pilotina MU - universal mill for grinding dry products fits easily into existing process lines and IT infrastructure.

Areas of application Дробильное оборудование

Дробильное оборудование solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing IKA Pilotina MU - universal mill for grinding dry products allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with IKA Pilotina MU - universal mill for grinding dry products you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
