IKA myPlate

IKA myPlate magnetic stirrer

The IKA myPlate combines the excellent technical features of the popular and proven IKA magnetic stirrers colored and large squid with the possibility of creative individualization.

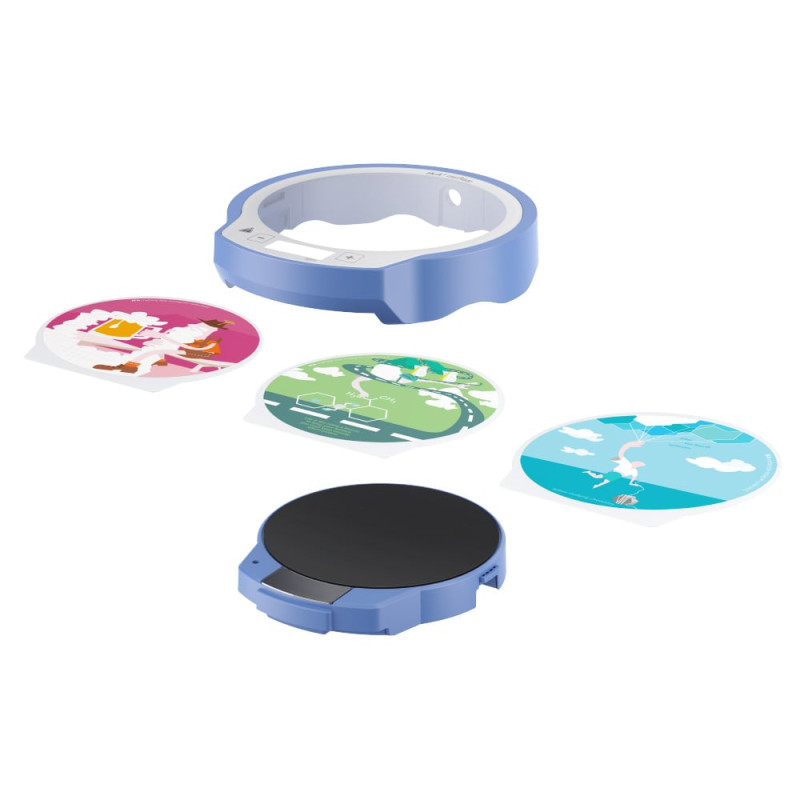

Personal interchangeable frame

Create your own IKA myPlate stirrer platform. You get a device with a decorative image template that can be easily replaced thanks to the convenient exchangeable frame. Some people have family photos on their desks - you turn one of the best magnetic stirrers from your daily lab work into a canvas for your favorite photos.

Proven high functionality

In addition to mixing samples with the IKA myPlate on the creative surface, you get all the benefits of this powerful stirrer as you are used to from IKA.

- High chemical resistance

- Electronically controlled engine

- Digital speed indicator

- Speed range from 100 to 2500 rpm.

Delivery set:

• IKA myPlate
• Blank photo papers (10 pcs.)

Technical specifications:

Number of mixing positions: 1

Maximum mixing quantity per mixing position (H2O) [l]: 1.5

Maximum load [kg]: 3

Motor power [W]: 2

Direction of rotation: left

Set speed indicator: LED

Actual speed indicator: LED

Speed adjustment: touch button

Speed range [rpm]: 100 - 2500

Speed setting accuracy [rpm]: 10

Max. mixer length [mm]: 30

Self-heating of the mounting plate max. mixing (room temperature: 22°C/duration: 1 h) [K]: +2

Tabletop material: glass

Tabletop dimensions [mm]: Ø 135

Automatic reverse rotation: no

Periodic mode: no

Viscosity trend measurement: no

Stirring plate break detection: no

Timer: no

pH measurement: no

Graphics function: no

Programs: no

Sensor detection in the environment: no

Weighing function: no

Tabletop illumination: no

Battery powered: no

Dimensions (W x H x D) [mm]: 152 x 30 x 164

Weight [kg]: 0.76

Permissible ambient temperature [°C]: 5 - 40

Permissible relative humidity [%]: 80

Protection class according to DIN EN 60529: IP 54

RS 232 interface: no

USB interface: no

Analog output: no

Voltage [V]: 100 - 240 Frequency [Hz]: 50/60

Input power [W]: 4

Standby input power [W]: 1

DC voltage [V=]: 12

Current consumption [mA]: 300

IKA myPlate — professional solution in the Magnetic stirrers category

IKA myPlate is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why IKA myPlate

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: IKA myPlate fits easily into existing process lines and IT infrastructure.

Areas of application Magnetic stirrers

Magnetic stirrers solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing IKA myPlate allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with IKA myPlate you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
