I-MAG Industry stirrer

Magnetic stirrer I-MAG Industry stirrer

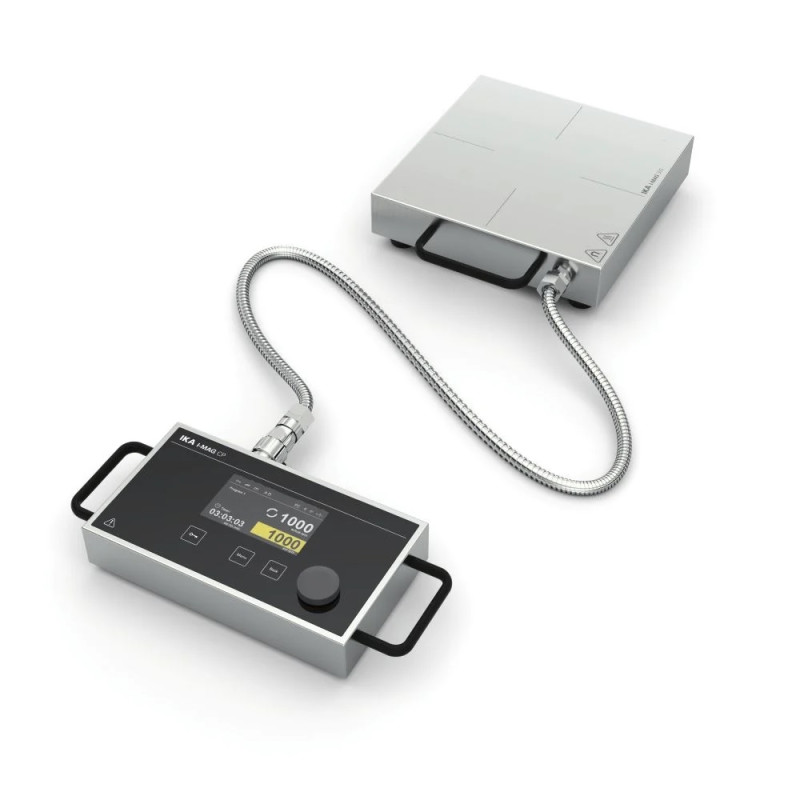

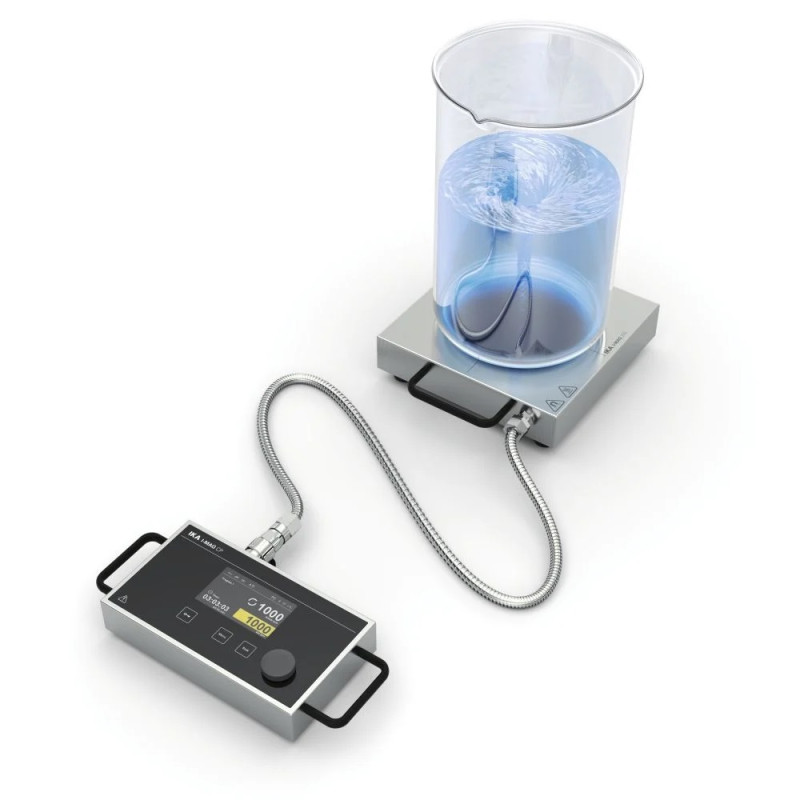

I-MAG is a powerful yet compact magnetic stirrer for use in laboratory and production environments.

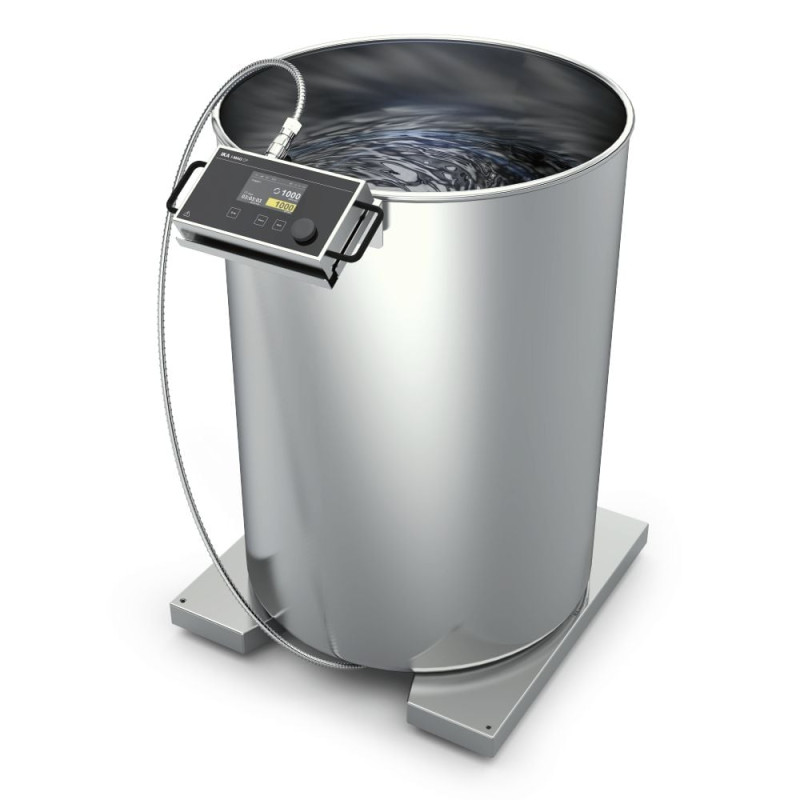

In combination with the I-MAG SP mounting frames for large tanks, which are available as accessories, up to 300 liters of water can be efficiently mixed. The wired control unit (controller) ensures convenient operation and easy integration, for example, into process engineering systems.

The robust drive unit (protection class IP 64) consists of a high-torque, wear-resistant motor and a magnetic coupling with high-performance neodymium magnets. This allows for efficient mixing of viscous media and mixing in tanks with a greater distance between the installation surface and the agitator (e.g. double-walled containers or tanks with an insulated bottom).

To reliably achieve high speeds even under difficult conditions, the I-MAG has an adjustable start-up speed that prevents the magnetic stirrer from breaking off during the acceleration phase. Process reliability is further enhanced by the integrated magnetic stirrer coupling detection. In the event of a magnetic coupling break-off or failure, the user is notified via the control panel.

The I-MAG controller has a variety of digital and analog interfaces. Equipped in this way, the device can be operated, for example, via a foot switch or control button, or it can be integrated into a network via USB/LAN/WIFI. Using the appropriate software (e.g. labworldsoft® 6), the I-MAG can be integrated into an automated production process.

Additional features:

- Drive with very high protection class IP 64: unrestricted use even in difficult environmental conditions thanks to closed stainless steel housing

- Electronically controlled motor for very stable speed even under load for reproducible results

- Reliable and ergonomic mounting of the controller directly on the tank or via a stand rod using the I-MAG UHC universal holder (available as an accessory)

- Multilingual menu navigation

Dimensions (W x H x D):

Drive unit: 260 x 70 x 300 mm

Control unit: 165 x 65 x 335 mm

Delivery set:

• I-MAG Industry stirrer
• IKAFLON 90 slide (1 pc.)
• USB A-B Cable
• Adapter for analog interface (3 pcs.)

Technical specifications:

Number of mixing positions: 1

Speed deviation [rpm]: ±10

Maximum mixing quantity per mixing position (H2O) [l]: 300

Maximum load [kg]: 75

Maximum mixing quantity (without I-MAG SP expansion platform) [l]: 50

Motor power [W]: 90

Direction of rotation: right / left

Set speed indicator: TFT

Actual speed display: TFT

Speed control: Rotary knob

Speed range [rpm]: 100 - 1500

Speed setting accuracy [rpm]: 10

Stirrer length [mm]: 30 - 140

Self-heating of the mounting plate at maximum stirring (quantity: 22°C/duration: 1 h) [K]: +26

Min. operating temperature (with external cooling) [°C]: 5

Max. operating temperature (with external heating) [°C]: 70

Table top material: stainless steel 1.4301

Tabletop dimensions [mm]: 260 x 260

Automatic reverse rotation: yes

Periodic mode: yes

Viscosity trend measurement: no

Stirring rod damage detection: yes

Timer: yes Timer display: TFT

Time setting range [min]: 1 - 14399

Graphics function: no Programs: yes

Weighing function: no

Tabletop lighting: no

Battery powered: no

Analog pedal control: yes

Cable from controller to device [mm]: 2000

Dimensions (W x H x D) [mm]: 260 x 70 x 300

Weight [kg]: 8

Permissible ambient temperature [°C]: 5 - 40

Permissible relative humidity [%]: 80

Protection class according to DIN EN 60529: IP 64 (drive unit) / IP 22 (control unit)

RS 232 interface: yes

USB interface: USB-B

WiFi interface: yes

Analog output: yes

Analog input: yes

Voltage [V]: 100 - 240 Frequency [Hz]: 50/60

Input power [W]: 140

Standby input power [W]: 5
