HPH
The HPH high-pressure homogenizer is a flow disperser for the energy-saving and continuous production of ultrafine emulsions. While the dispersion in other IKA flow machines is based on the rotor-stator principle of grinding and mixing, an even better homogenizing effect is achieved in the HPH machine by spontaneous decompression of the liquid from a pressure of 2000 bar to ambient pressure. With equal energy consumption, the IKA HPH homogenizer produces significantly finer emulsions than classic gear dispersers. The use of high-pressure homogenizers is recommended for production tasks that require particle grinding to the nanorange. At the same time, it is necessary to take into account the lower productivity of high-pressure homogenizers compared to traditional dispersers.

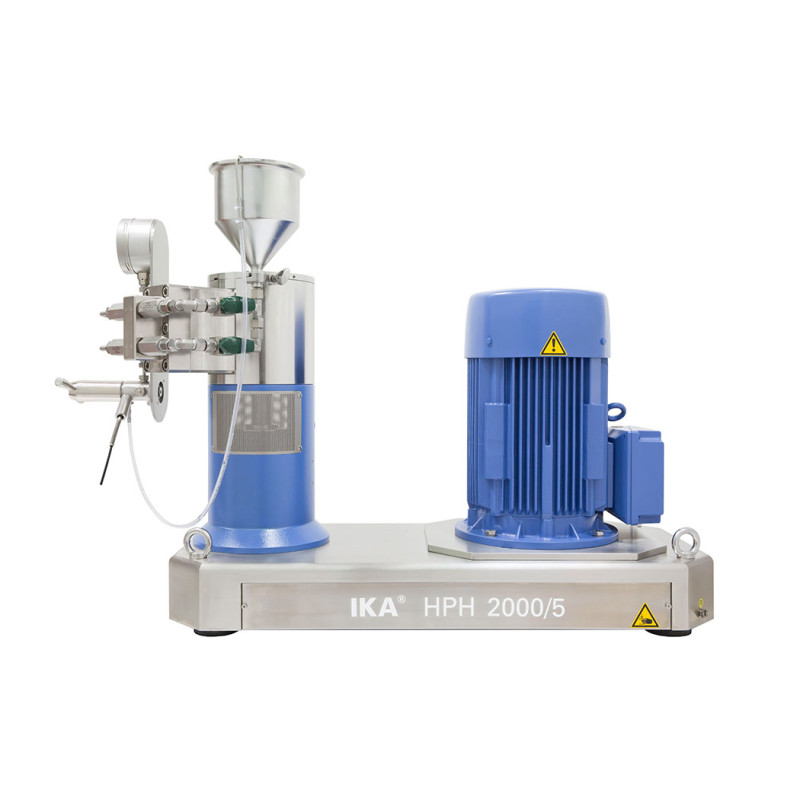

The high-pressure homogenizer consists of a high-pressure piston pump and a homogenizing pressure valve. The pressure in the homogenizer is created by one or more piston pumps, which, using ceramic pistons, provide a volumetric flow rate that is independent of pressure and virtually pulsation-free. The required homogenization pressure is set by smooth adjustment. The pressure is released through the adjustable gap of the homogenizing valve. A sharp decrease in pressure in a moving liquid causes high turbulence and cavitation, which grinds the product.
IKA high-pressure homogenizers are designed to meet the individual needs of customers. It is possible to supply homogenizers in two sizes with one or more pistons of different diameters. The machines in the supply program thus differ in the maximum possible homogenization pressure (800 or 2,000 bar), the minimum permissible volume of the processed product (from 10 ml), the homogenization results and the productivity.
Advantages of the IKA HPH high-pressure homogenizer: - The maximum possible use of energy allows for particle grinding down to 0.1 microns.
- Proven design and long service life
- Very low noise level
- Processing samples from 10 ml
- Various sizes and versions are available with capacities from 2 to 100 l/h.
- A reliable drive that can be used for industrial production

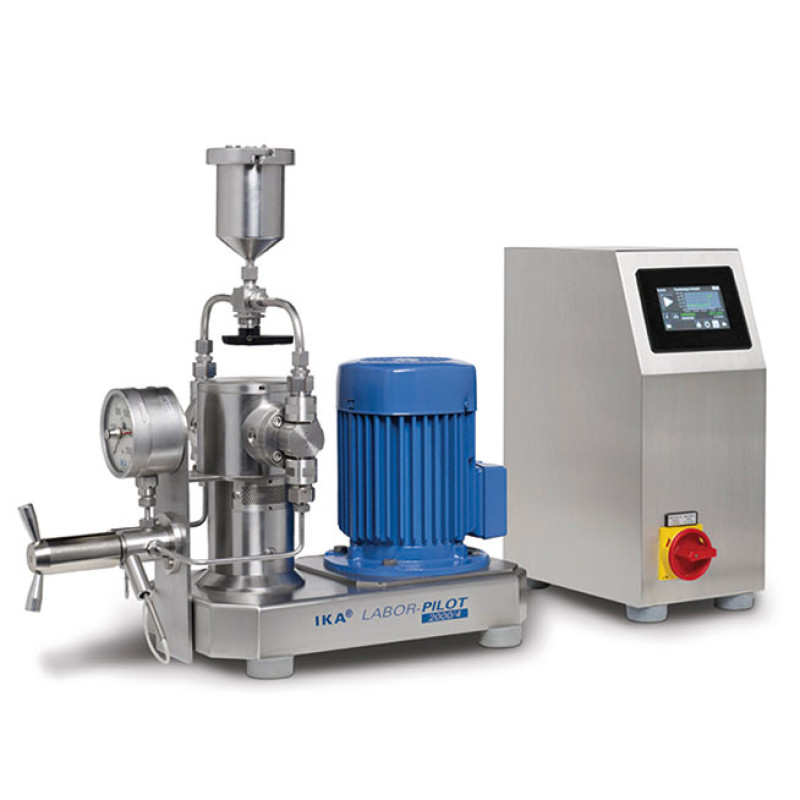

- Upon request, a controller can be supplied to adjust the speed of the drive shaft in order to adapt the machine's throughput to the fluidity of the medium.
- All parts in contact with the product are made of stainless steel and ceramic
- Lack of seals in the product processing area
- All parts in contact with the product can be sterilized in an autoclave. FDA certificates for materials used in the production of the machine are available upon request.
Areas of application of the HPH high-pressure homogenizer: The HPH homogenizer is suitable for many applications in the food, pharmaceutical and biotechnology industries where the quality of homogenization requires particle grinding down to the nanorange. For example: - cell destruction in biotechnology
- production of homogenized milk products
- production of infusion solutions
- microfibrillar cellulose production
- production of all types of microemulsions
HPH High Pressure Homogenizer — professional solution in the Гомогенизатор высокого давления category
HPH High Pressure Homogenizer is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why HPH High Pressure Homogenizer
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: HPH High Pressure Homogenizer fits easily into existing process lines and IT infrastructure.
Areas of application Гомогенизатор высокого давления
Гомогенизатор высокого давления solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing HPH High Pressure Homogenizer allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with HPH High Pressure Homogenizer you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add HPH High Pressure Homogenizer to the cart or contact our manager. We will help integrate Гомогенизатор высокого давления into existing processes without downtime and unnecessary costs.
