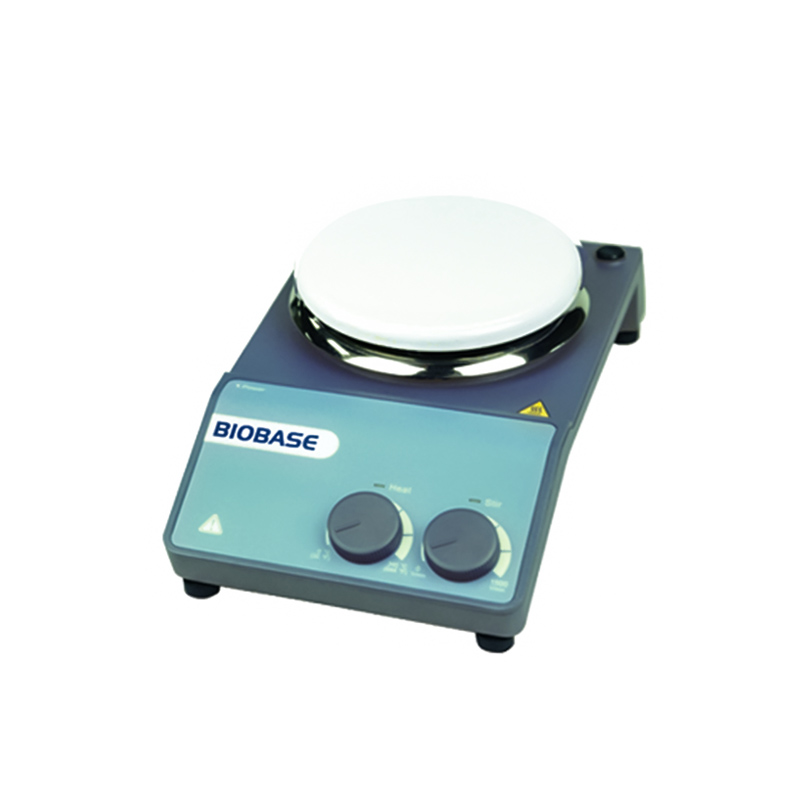

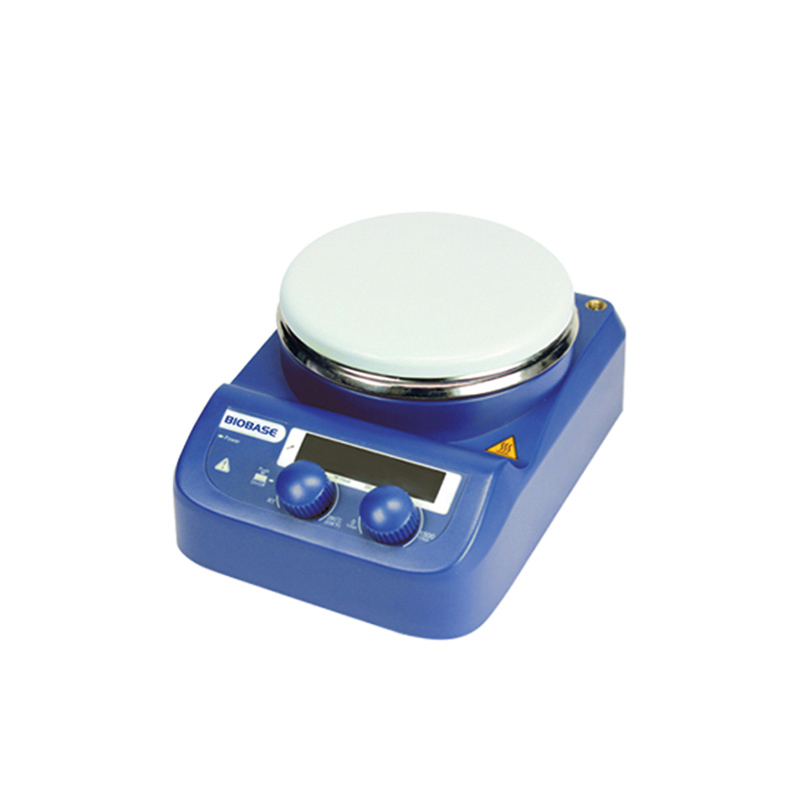

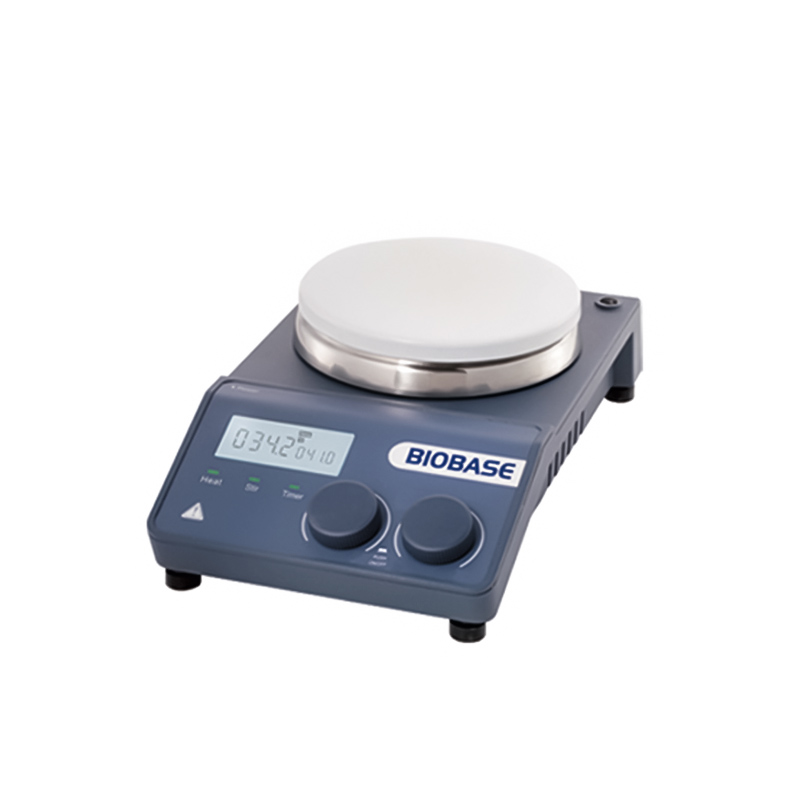

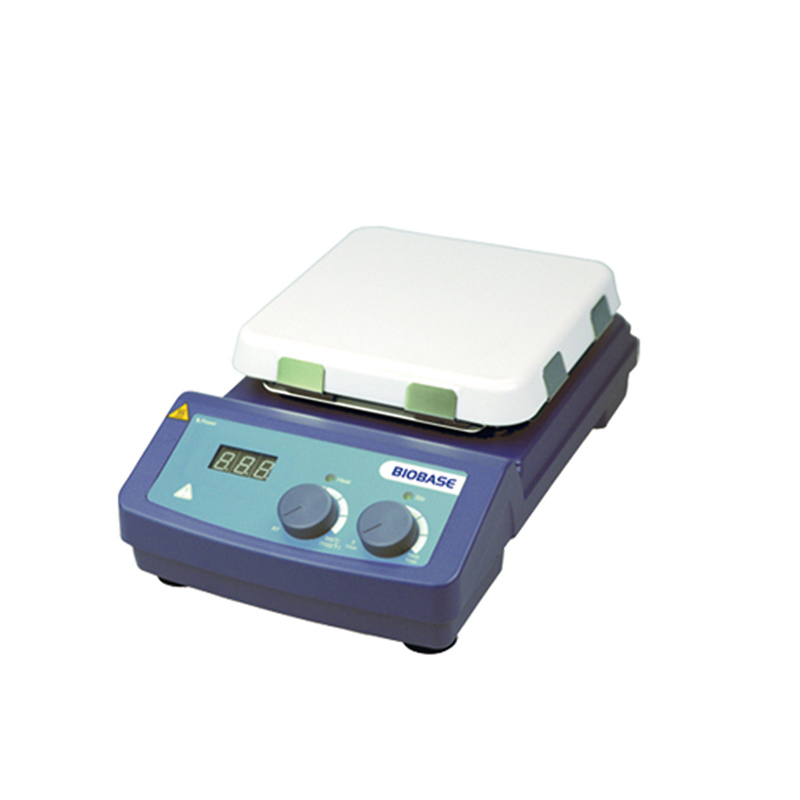

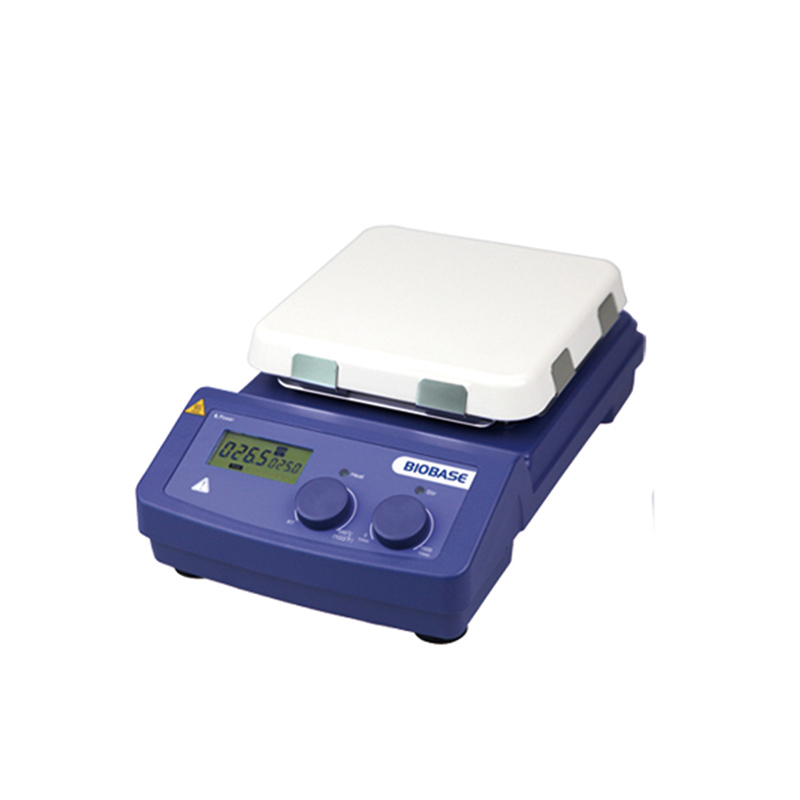

Hotplate Magnetic Stirrer MS Series

Technical Parameters:

Model	MS7-H550-Pro	MS7-H550-S	MS-H-ProA	MS-H-Prot	MS-H-S	MS-H280-Pro
Item No.	8030122111	8030122211	8060221110	8030201110	8030211010	8030101212
Work Plate Size	184*184mm(7 inch)		φ135mm(5 inch)
Work Plate Material	Glass ceramic		Aluminum	Stainless steel with ceramic coated
Max. Stirring Capacity	20L	10L	20L			3L
Motor Type	Brushless DC motor	Shaded pole motor	Brushless DC motor
Motor Input	18W	15W	18W			5W
Motor Output	10W	1.5W	10W			3W
Speed Range	100~1500rpm	0~1500rpm	100~1500rpm		0~1500rpm	200~1500rpm
Speed Display	LCD	Scale	LCD		Scale	LED
Speed Display Accuracy	±1rpm	/	±1rpm		/
Heating Output	1000W		600W	500W
Heating Temp. Range	RT-550°C, increment 1°C	RT-550°C, increment 5°C	RT-340°C, increment 1°C		RT-340°C	RT-280°C,  increment 1°C
Control Temp. Accuracy	±1°C(<100°C) ±1%(>100°C)	±10°C	±1°C(<100°C) ±1%(>100°C)		/	±1°C(<100°C) ±1%(>100°C)
Overheating Protection	580°C		420°C			320°C
Temp. Display	LCD	LED	LCD		Scale	LED
Display Temp. Accuracy	±0.1 °C	±1°C	±0.1 °C		/	±1°C
Timing Range	/		1~99h59min		/
Optional Accessory	PT1000(accuracy ±0.2°C)				/	PT1000(accuracy ±0.2°C)
Residual Heat Warning	50°C				/	50°C
Max. Stirrer Bar Length	80mm					50mm
Interface	RS232	/	RS232	/		/
Protection Type	IP21					IP42
Working Environment	5~40°C, 80%RH
Power Consumption	1050W	1030W	720W	550W	530W	515W
Power Supply	AC110/220V±10%, 50/60Hz(Customizable)
External Size(W*D*H)	215*360*112mm		160*280*100mm
Package Size(W*D*H)	490*350*260mm		470*250*240mm			300*240*220mm
Gross Weight	7kg		4kg		3.5kg	3kg





Hotplate Magnetic Stirrer MS Series — professional solution in the Stirrer category

Hotplate Magnetic Stirrer MS Series is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Hotplate Magnetic Stirrer MS Series

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Hotplate Magnetic Stirrer MS Series fits easily into existing process lines and IT infrastructure.

Areas of application Stirrer

Stirrer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Hotplate Magnetic Stirrer MS Series allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Hotplate Magnetic Stirrer MS Series you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
