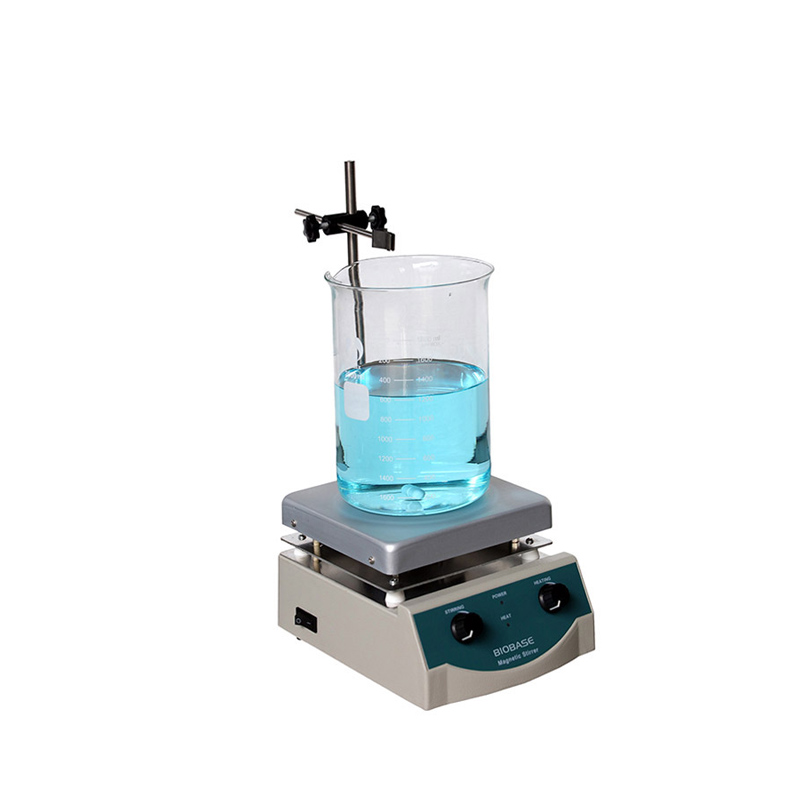

Hotplate Magnetic Stirrer BS Series

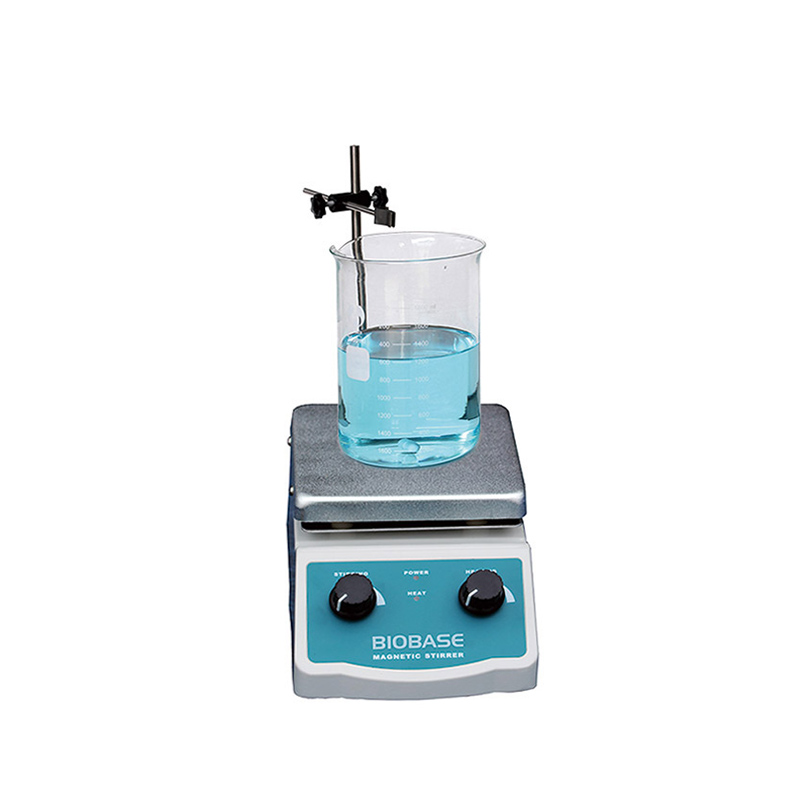

Features of BS-2H/3H:

1. Cast Aluminum with surface spraying plate.

2. Max. Temp.: 380°C, max. speed: 2000rpm.

3. Heating and stirring can proceed simultaneously.

4. Heating power and stirring speed is steplessly adjusted.

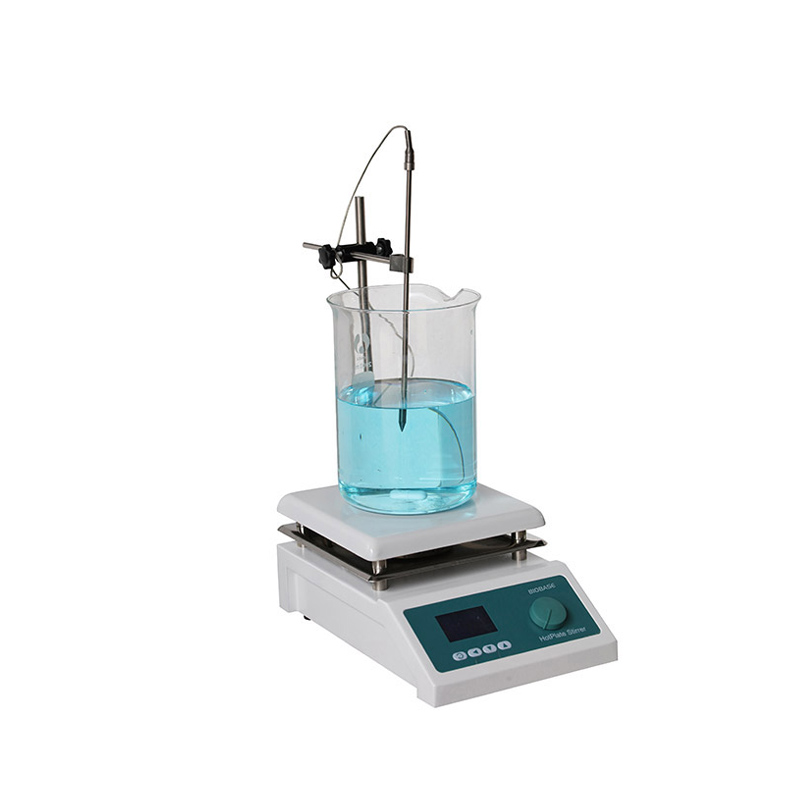

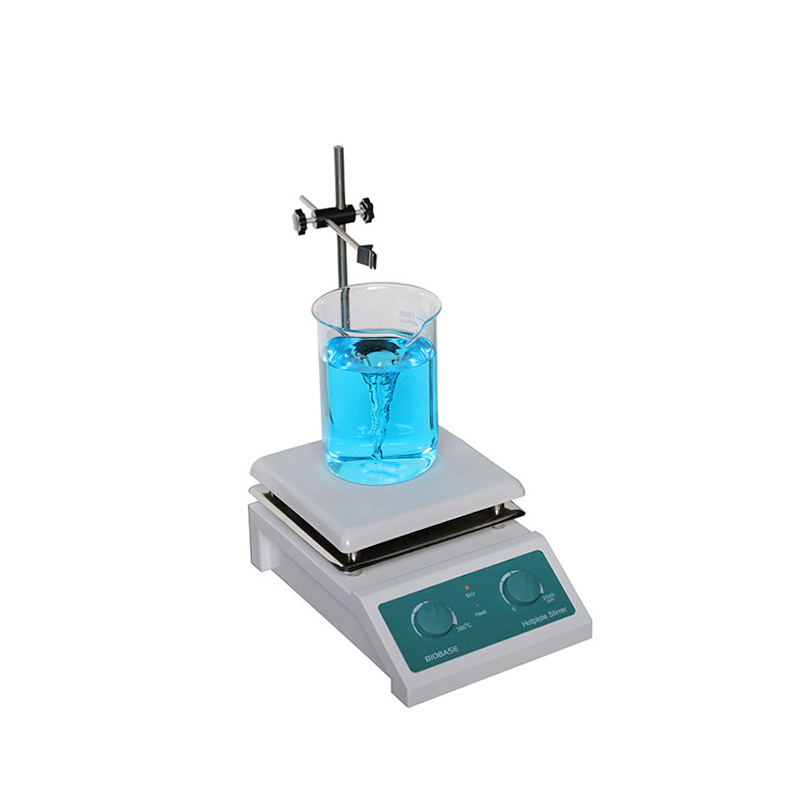

Features of BS-4H/4HC:
1. Ceramic plate.

2. PT100 sensor is standard for BS-4HC.

3. With the adjustable rack and stirrer bar.

4. Max. Temp.: 380°C, max. speed: 2000rpm.

5. Heating and stirring can proceed simultaneously.

6. Heating power and stirring speed is steplessly adjusted.

7. Enclosed hot plate with flame protection, fast warm-up and durability.



Technical Parameters:

Model	BS-2H	BS-3H	BS-4H	BS-4HC
Work Plate Size	120*120mm	170*170mm	190*190mm
Plate Load(kg)	3	10
Work Plate Material	Cast Aluminum with surface spraying		Ceramic
Max. Stirring Capacity	2L	5L
Speed Range	100~2000rpm		200~2000rpm
Heating Temp	380°C			350 °C
Power Consumption	180W	500W	600W
Power Supply	AC110/220V±10%, 50/60Hz
Standard Accessory	Adjustable rack, stirrer bar; PT100 sensor(only for BS-4HC)
External Size(W*D*H)mm	200*120*90	265*185*190	320*190*125
Package Size(W*D*H)mm	250*180*120	280*210*220	390*240*230
Net Weight(kg)	1.9	2.2	5
Gross Weight(kg)	3	3.4	6





Hotplate Magnetic Stirrer BS Series — professional solution in the Stirrer category

Hotplate Magnetic Stirrer BS Series is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Hotplate Magnetic Stirrer BS Series

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Hotplate Magnetic Stirrer BS Series fits easily into existing process lines and IT infrastructure.

Areas of application Stirrer

Stirrer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Hotplate Magnetic Stirrer BS Series allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Hotplate Magnetic Stirrer BS Series you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
