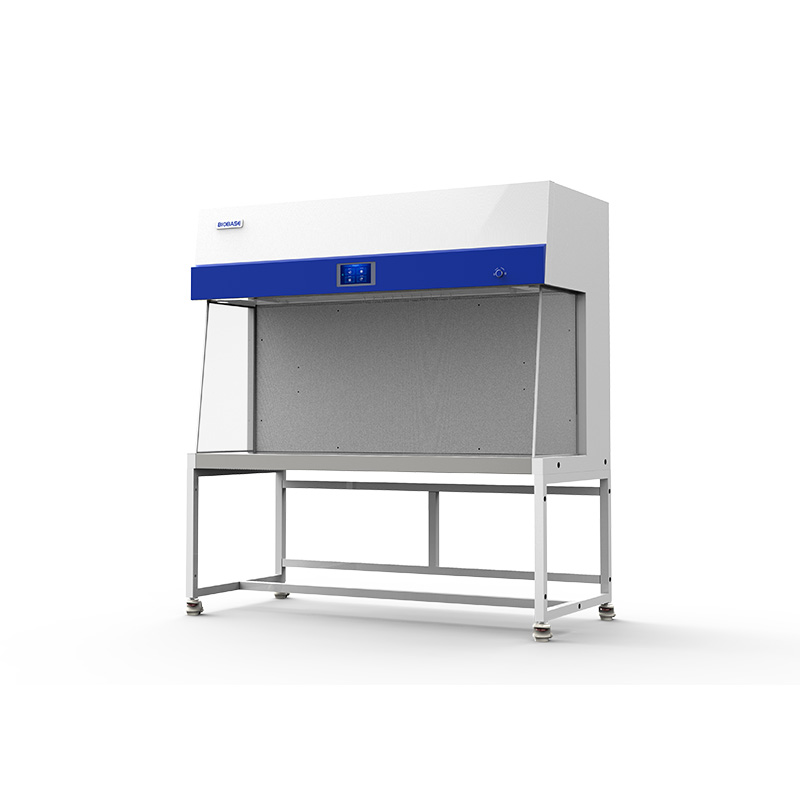

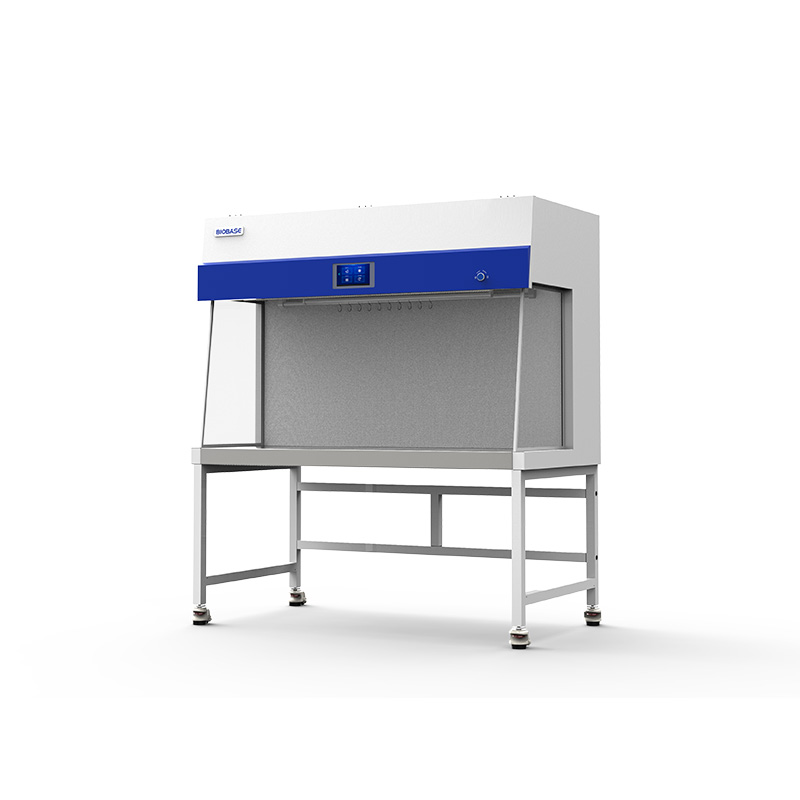

Horizontal Laminar Flow Cabinet BKCB-H

Features:
1. The cabinet is designed with a 10° inclination angle, the operation perspective is wide and more humanized.

2. Made of high quality cold rolled steel plate material, welding structure, surface electrostatic spraying, enhancing the stability of the cabinet.

3. Equipped with initial effect filter, which can preliminarily filter large particulate matter, thus improving the service life of the high efficiency filter.

4. Work surface is made of high quality 304 stainless steel material, beautiful and corrosion resistance.

5. The base bracket and casters are integrated design, which can be moved safely through the casters and can also be fixed and leveled.

6. 7-inch color touch screen, real-time display of running status(air flow direction, air velocity, machine running time, UV lamp running time, high efficiency filter running time, high efficiency filter running resistance, operating area temperature and humidity, clock display) at a glance.

7. With the function of appointment timing, it can automatically set the time of starting and shutting down the laminar flow cabinet and the disinfection time of ultraviolet lamp.

8. With a key disinfection function, convenient and fast, greatly saving the work time and improving the work efficiency.

9. Perfect alarm system:

(1) Ultra-high filter pressure alarm: when the filter resistance increases, sound alarm will be issued;

(2) Filter failure replacement alarm: when the filter service life expires, there will be a filter replacement sound alarm.



Technical Parameters:

Model	BKCB-H1500	BKCB-H1800
Flow Mode	Horizontal flow
Number of Users	1~2	1~3
Rated Power	1000VA(including operating area socket load 500VA)	2000VA(including operating area socket load 500VA)
Power Supply	220V±10%, 50Hz(Standard); 110±10%V, 60Hz(Optional)
Airflow Velocity	0.2m/s~0.45m/s
Noise	≤65dB(A)
Lighting	≥300lx
Vibration	≤5μm(rms)
Safety	Colonies Number≤0.5CFU/30min
Clean Grade	ISO level 5(100 levels)
Filtration Efficiency	HEPA(H14) high efficiency filter, filtration efficiency for 0.3μm particle≥99.995%
Work Surface Height	750mm(Customized)

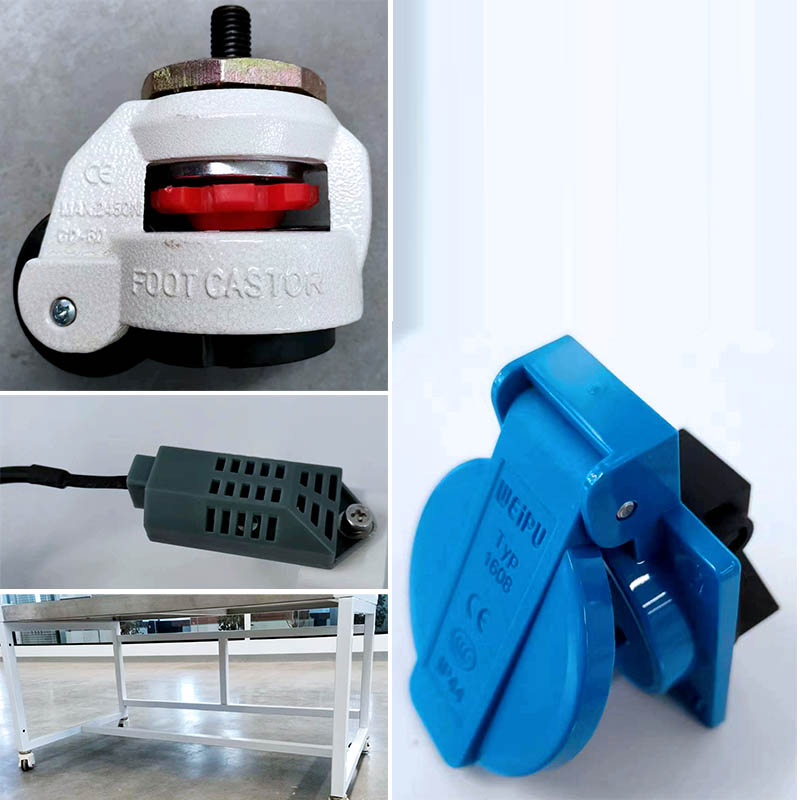

Standard Accessory	LED lamp*2, UV lamp*2, Base stand, Waterproof socket*2, Temperature and humidity sensor
Optional Accessory	Armrest*2
Net Weight	220kg	260kg
Gross Weight	299kg	355kg
External Size(W*D*H)	1500*800*1730mm	1800*800*1930mm
Internal Size(W*D*H)	1400*500*600mm	1700*500*730mm
Package Size(W*D*H)	1760*1010*1340mm	2060*1010*1500mm



Horizontal Laminar Flow Cabinet BKCB-H — professional solution in the Laminar Flow Cabinet category

Horizontal Laminar Flow Cabinet BKCB-H is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Horizontal Laminar Flow Cabinet BKCB-H

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Horizontal Laminar Flow Cabinet BKCB-H fits easily into existing process lines and IT infrastructure.

Areas of application Laminar Flow Cabinet

Laminar Flow Cabinet solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Horizontal Laminar Flow Cabinet BKCB-H allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Horizontal Laminar Flow Cabinet BKCB-H you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
