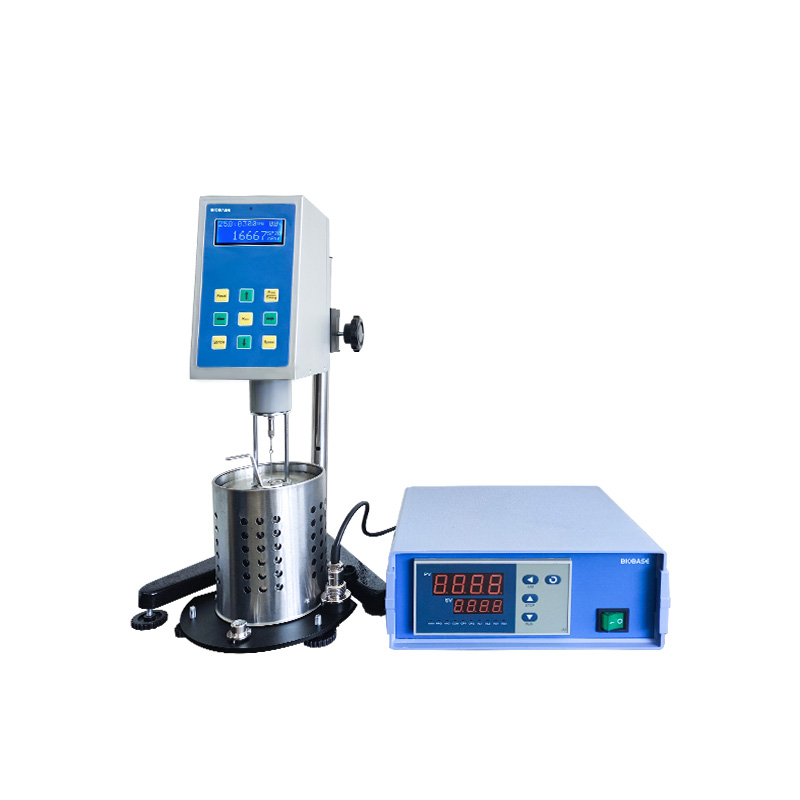

High-temperature Viscometer

Features：
1. The measured data can be displayed directly on the LCD screen without secondary calculation. < VSoft Viscometer Data Collection,Analysis and Graphing Software > can also be selected to realize data acquisition and analysis and to compile the viscosity-temperature curve

2. High subdivision stepper motor, accurate and stable speed

3. LCD liquid crystal with blue backlight function can directly display the viscosity, speed, percentile torque, spindle number and the maximum viscosity and temperature of the selected spindle at the current speed. BDV-2 series can also show shear rate and shear stress. Viscosity value shows continuous change, beyond the measurement range there is an alarm sound prompt

4. High-temperature furnace uses embedded integral heating, uniform heating and small thermal inertia

Technical Parameters:

Model		BDV-1H	BDV-1HB	BDV-1L	BDV-2H		BDV-2HB	BDV-2L
Measuring Range(mPa·s)		100~10,000,000	800~80,000,000	10~1,000,000	50~10,000,000		400~80,000,000	5~1,000,000
Rotating Speed(RPM)		0.1~99.9(Stepless Gear)			0.1~200(Stepless Gear)
Number of Spindles		Spindles(21, 27, 28, 29) are equipped with the product
Measurement Accuracy		±1% full scale range in use
Repeatability		±0.5% full scale range in use
Sample Capacity(mL)		10~20
Temperature Control Range		10℃ above ambient~300℃
Power Supply	Viscometer	AC110~220V, 50/60Hz
	Heating Furnace	AC220V, 50/60Hz; 110V, 60Hz(Optional)
LCD Display	Viscometer	The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value				The LCD screen can display the viscosity, speed, torque spindle, temperature，shear rate, shear force and the maximum viscosity can be measured in the current spindle  speed value
	Temperature Controller	Display setting temperature and actual measuring temperature
Standard Accessories		Spindles(21, 27, 28, 29), temperature controller, heating furnace, RTD temperature probe
Optional Accessories		Ultra-low viscosity adapter, spindles(L0, R1, R2, R3, R4, R5, R6, R7)(For BDV-1H, BDV-1HB, BDV-2H, BDV-2HB), spindles (L0, L1, L2, L3, L4, L5) (For BDV-1L, BDV-2L), data acquisition, analysis, and plotting software, DV programmable download software, constant temperature bath, standard solution(25℃), WR1401 viscometer wireless remote control
Packing Size(L*W*H)	Viscometer	400*350*560mm
	Temperature Controller	400*350*380mm
Gross Weight		15kg

High-temperature Viscometer — professional solution in the Viscometer category

High-temperature Viscometer is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why High-temperature Viscometer

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: High-temperature Viscometer fits easily into existing process lines and IT infrastructure.

Areas of application Viscometer

Viscometer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing High-temperature Viscometer allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with High-temperature Viscometer you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
