Features:
1. The ultrasonic controller has the function of power adjustment, and the output power can be continuously adjusted to meet the requirements of various sample objects.
2. Equipped with display working status, easy to observe the working condition of ultrasonic controller.
3. BK25P-30JX special high shear force working head can meet the processing volume of 2~10L, which is suitable for different sample processing requirements.
4. Providing a linear speed of 47m/s for sample homogenization.
5. Two-way support bar design combined with dual-hole position fixed clamps composed of integrated lift adjustment system to make your experiments, reliable and safer.
Technical Parameters:
Model | BH-2000 |
Capacity | 2~10L |
Timing Range | 0~99h59m59s |
Display | 7 inches touch screen display |
Temperature Range | -10~199℃ |
Consumption Regulation | Automatic recognition |
Working Head Size | Φ40*250mm |
Working Head Type | Slub type |
Minimum Immersion Depth | 150~300mm |
Emulsification Display | LCD display |
Emulsification Speed | 4000~26000rpm adjustable |
Emulsification Head Material | 316L |
Emulsification Head Diameter | Stator outer diameter 30mm |
Maximum Shear Speed | 47m/s |
Emulsification Input Consumption | 1050W |
Emulsification Output Consumption | 750W |
Drive motor | Brushless DC motor |
Consumption | 2000W |
Power Supply | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) |
Packing Size(L*W*H) | 810*410*150mm, 540*310*410mm |
Gross Weight | 13kg, 19kg |
Optional Accessories:
Working Head:
Model | Capacity(ml) | Viscosity | Material |
BK25P-30JX(Standard) | 250~10000 | 15000 | 316 |
BK25P-30JQ | 250~8000 | 15000 | 316 |
Variator Pole:
Type | Specification(Diameter*Length) | Capacity | Consumption Adjustment Mode |
Type 1(Standard) | Φ40*250mm | 500~5000ml | Automatic adjustment |
Type 2 | Φ40*370mm | 1000~8000ml | Automatic adjustment |
Type 3 | Φ40*490mm | 1000~10000ml | Automatic adjustment |

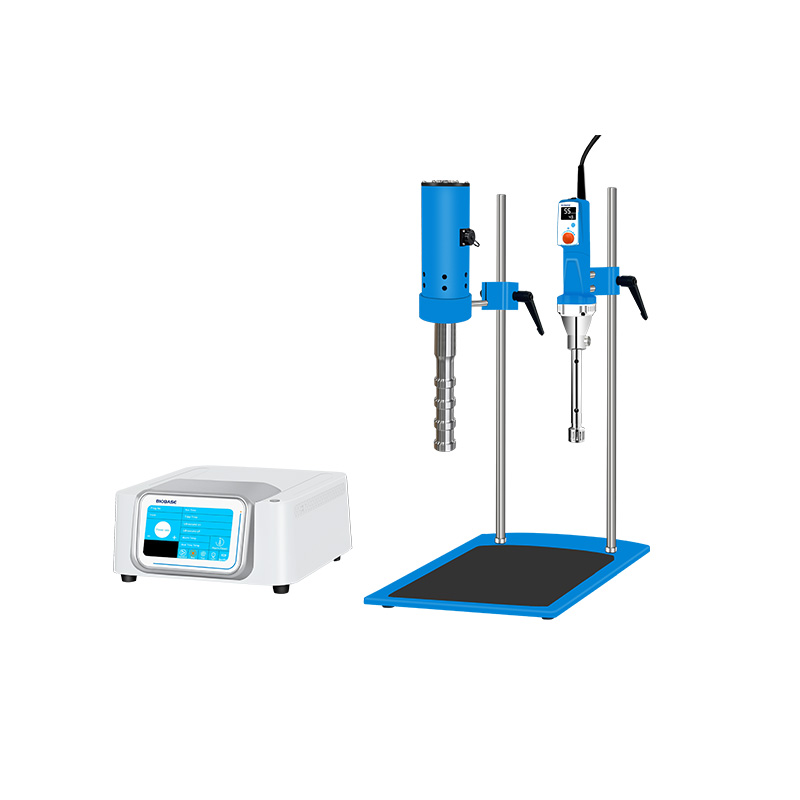

High Speed Ultrasonic Homogenizer — professional solution in the Homogenizer category
High Speed Ultrasonic Homogenizer is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why High Speed Ultrasonic Homogenizer
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: High Speed Ultrasonic Homogenizer fits easily into existing process lines and IT infrastructure.
Areas of application Homogenizer
Homogenizer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing High Speed Ultrasonic Homogenizer allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with High Speed Ultrasonic Homogenizer you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add High Speed Ultrasonic Homogenizer to the cart or contact our manager. We will help integrate Homogenizer into existing processes without downtime and unnecessary costs.
