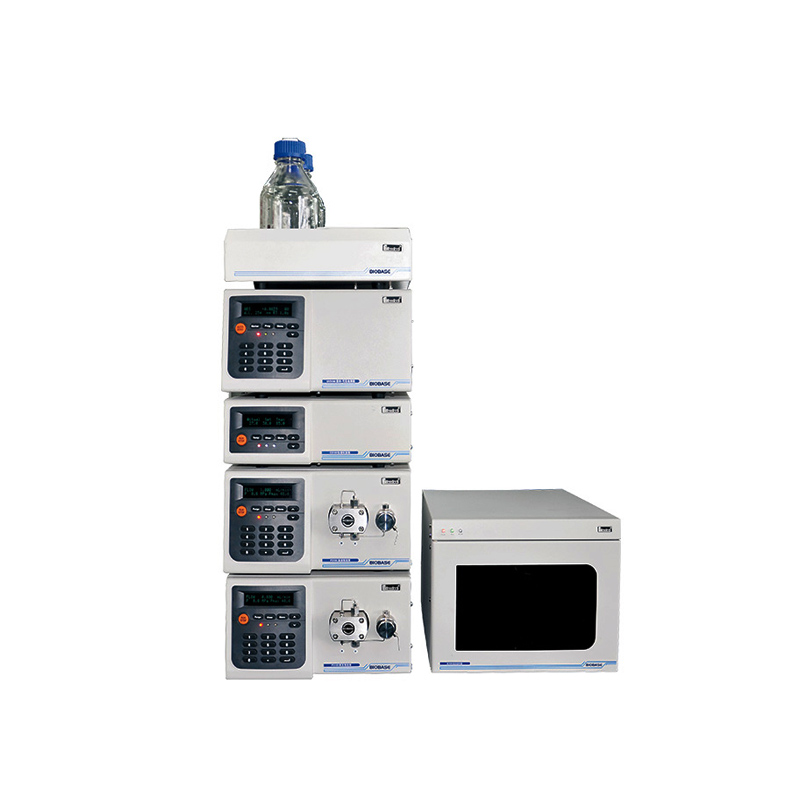

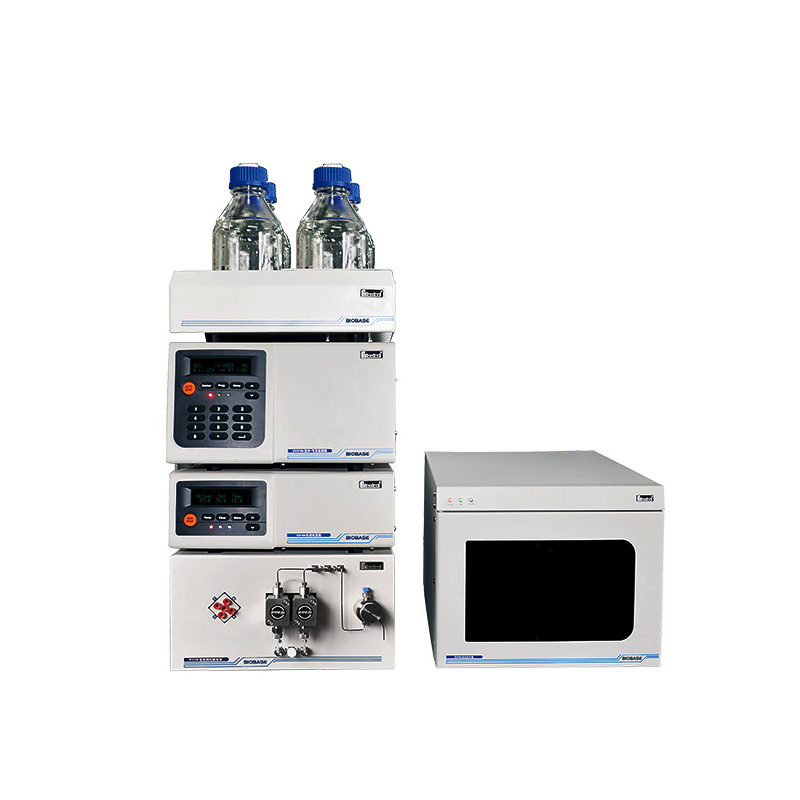

High Performance LiquidChromatography System EClassical 3100

Characteristics:

1. Comprehensive and flexible

Isocratic system, binary gradient system, quaternary gradient system is available.

Detection capabilities include DAD, UV/Vis, FL, RI and ELSD.

2. Stable and reliable

Advanced USB chip and optoelectronic isolation technology ensuring stable communication.

3. Simple and safe

Powerful software makes it simple to control, capture, manage and analyze.

Real-time pressure display, maximum and minimum pressure warning ensure the security.

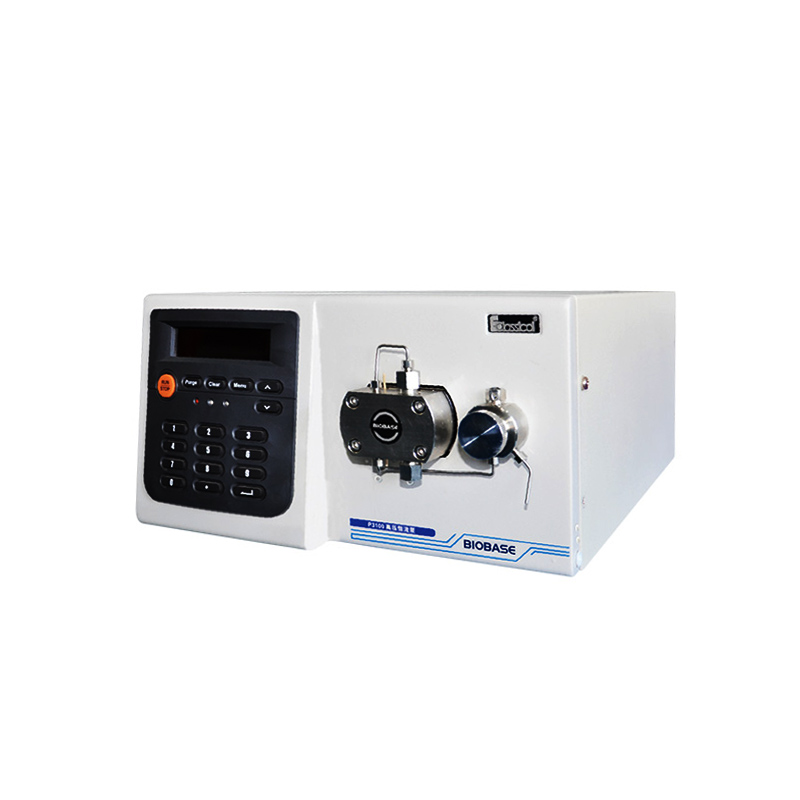

P3100 High-Pressure Constant Flow Pump:

Flow Range	0.001~10.000mL/min(step 0.001mL/min)
Accuracy	≤±0.2%
Precision	≤0.06%RSD
Pressure Range	0~45MPa
Power	AC220V±10%, 50Hz; 80W
Dimensions/Weight	420*300*175mm(L* W*H)/12kg

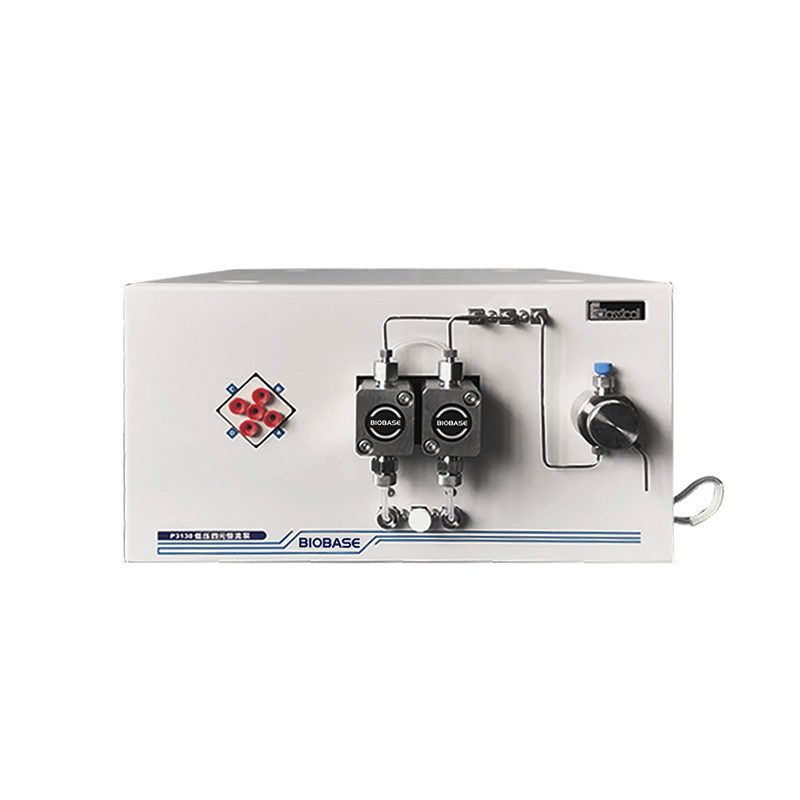

P3130 Low-Pressure Quaternary Constant Flow Pump:

Flow Range	0.001~10.000mL/min(step 0.001mL/min)
Gradient Accuracy	≤±1%
Retention Time Repeatability	≤0.1%
Maximum Working Pressure	63MPa
Communication Methods	UDP Network Communication
Mixed Volume	750μL
Power	AC220V±10%, 50Hz; 100W
Dimensions/Weight	400*300*180mm(L* W*H)/15kg

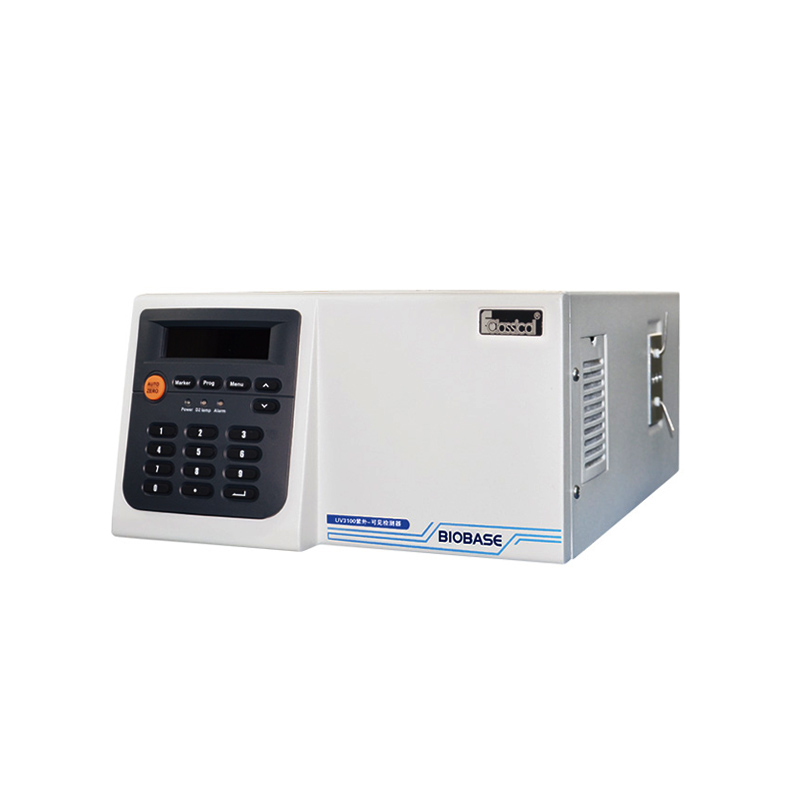

UV3100 UV-Vis Detector:

Linear	2.0AU
Wavelength Range	190~700nm
Noise	≤±0.5x10^-5AU
Drift	≤1.0x10^-4 AU/h
Cell	Analytical: Optical path 10mm, 11µL Semi-prep Scale: Optical path 2mm, 6µL
Power	AC220V±10%, 50Hz; 100W
Dimensions/Weight	420*300*175mm(L*W*H)/16kg

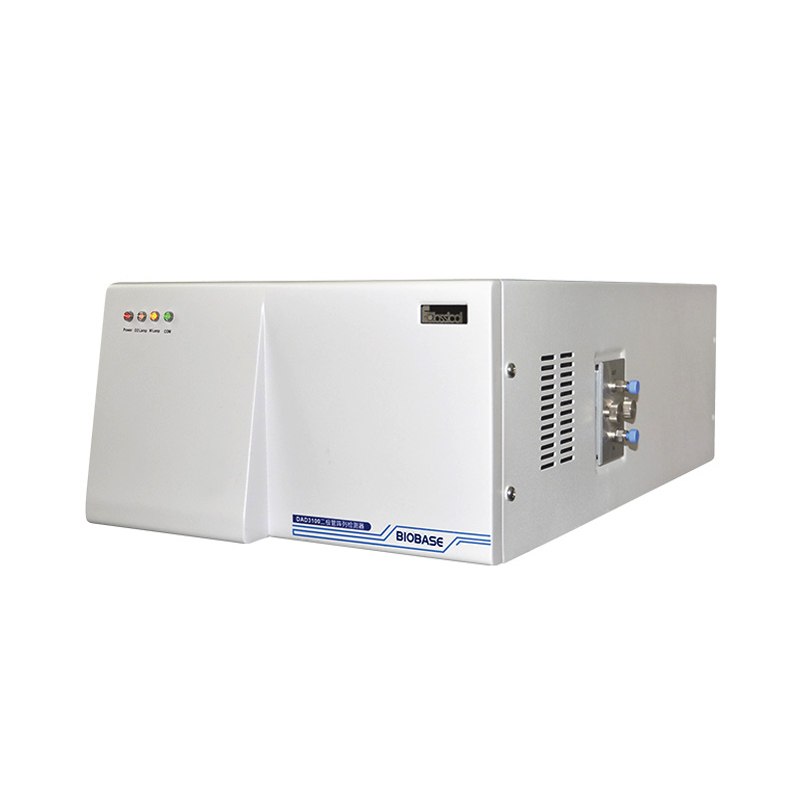

DAD3100 Diode Array Detector:

Linear	≥2.0AU
Wavelength Range	190~800nm
Noise	≤±1.0x10^-5AU
Drift	≤2.0x10^-4AU/h
Power	AC220V±10%, 50Hz; 180W
Dimensions/Weight	500*300*175mm(L*W*H)/18kg

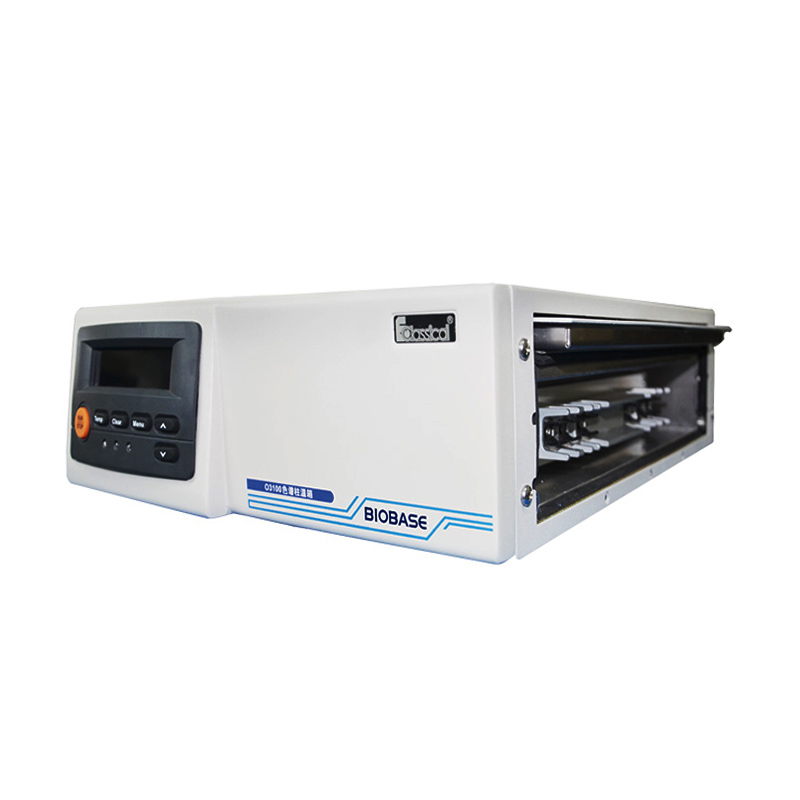

O3100 Column Oven:

Temperature Range	Ambient +5℃～85℃
Accuracy	±0.3℃
Precision	≤0.1℃
Power	AC220V±10%, 50Hz; 130W
Dimensions /Weight	420*300*120mm(L* W*H)/7kg

Technical Parameters:

Model	EClassical 3100(Type I)	EClassical 3100(Type II)	EClassical 3100(Type III)	EClassical 3100(Type IV)
Pump	P3100*1	P3100*2	P3130*1(With mixer)
Detector	UV3100*1			DAD3100 512*1
Gradient Mixer	/	TD-1-15*1	/
Solvent Bottle Tray	TP3100*1
Sampler Injector	Rheodyne 7725i*1
Column	Supersil ODS2 5μm ID4.6*200mm *1
Workstation	Kromstation*1			Kromstation+PDA
AD Adapter	/			AD adapter+startup kit
Valve Mounting Frame	ZJ-1*1		ZJ-4*1
Degasser	/		DG3110*1
System Kit	EClassical 3100*1
Power Supply	AC220V±10%, 50Hz
Optional Accessory	500ml Solvent bottle*2, Column, Column Oven, S3100 Auto-sampler，Degasser		500ml Solvent bottle*4, Column, Column Oven, S3100 Auto-sampler
Package Size(W*D*H)	600*440*380mm*2 580*400*280mm*1	600*440*380mm*3 580*400*280mm*1	600*440*380mm*2 320*190*230mm*1 500*360*210mm*1	600*440*380mm*2 330*200*260mm*1 600*400*240mm*1
Gross Weight	40kg	55kg	45kg	49kg
