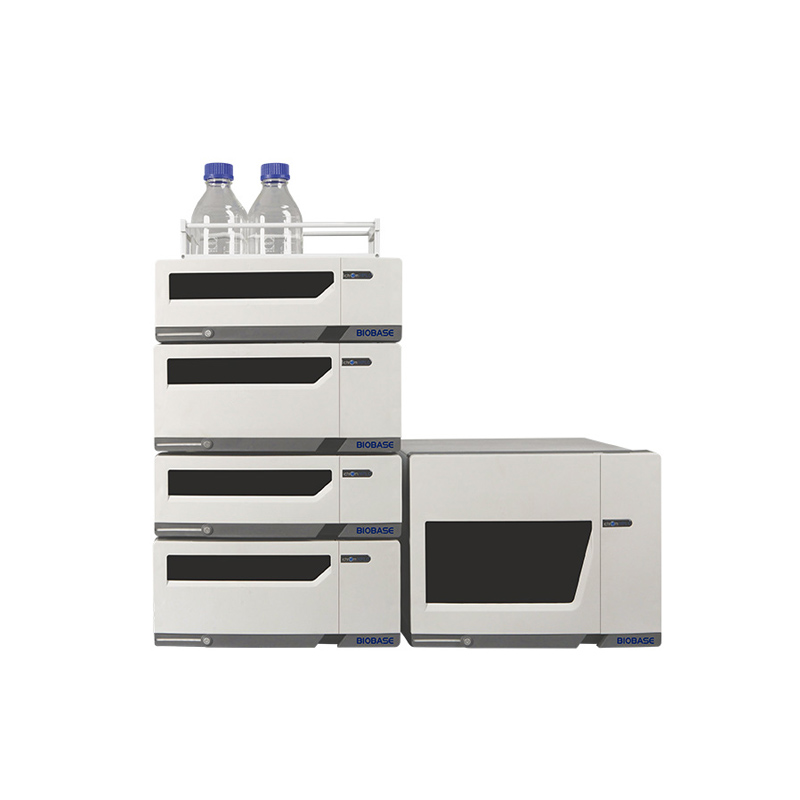

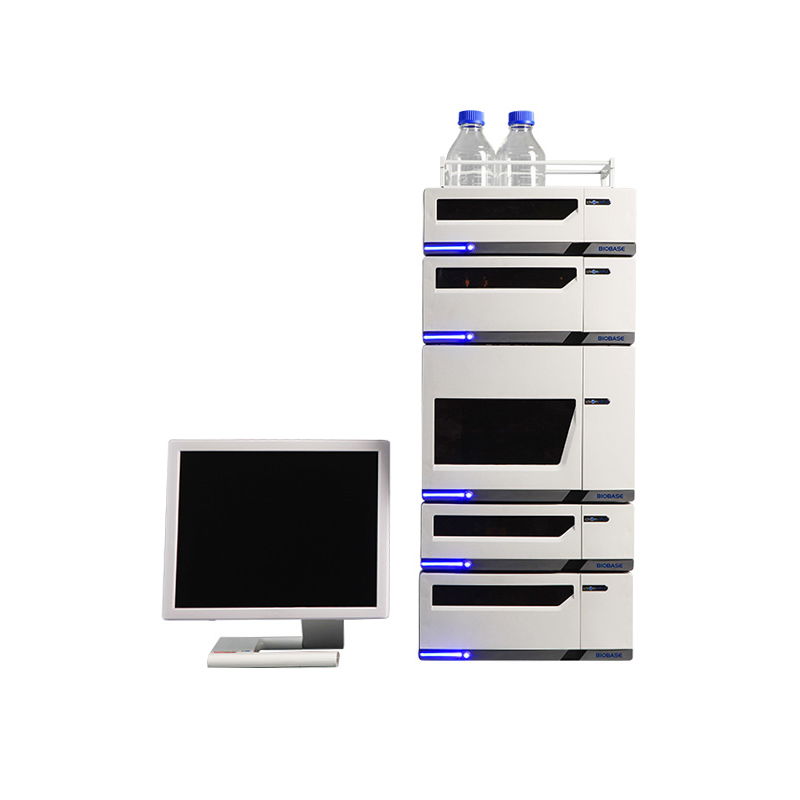

High Performance Liquid Chromatography System iChrom 5100

Features:

1. High integrated SPI, I2C bus and ARM micro-controller technology Poston floating design makes more stable flow.

2. Intellectualized sequence analysis and batch processing functions bringing more convenience.

3. Automatic wavelength positioning and excellent wavelength accuracy.

4. Enable 21 CFR Part 11 compliance.

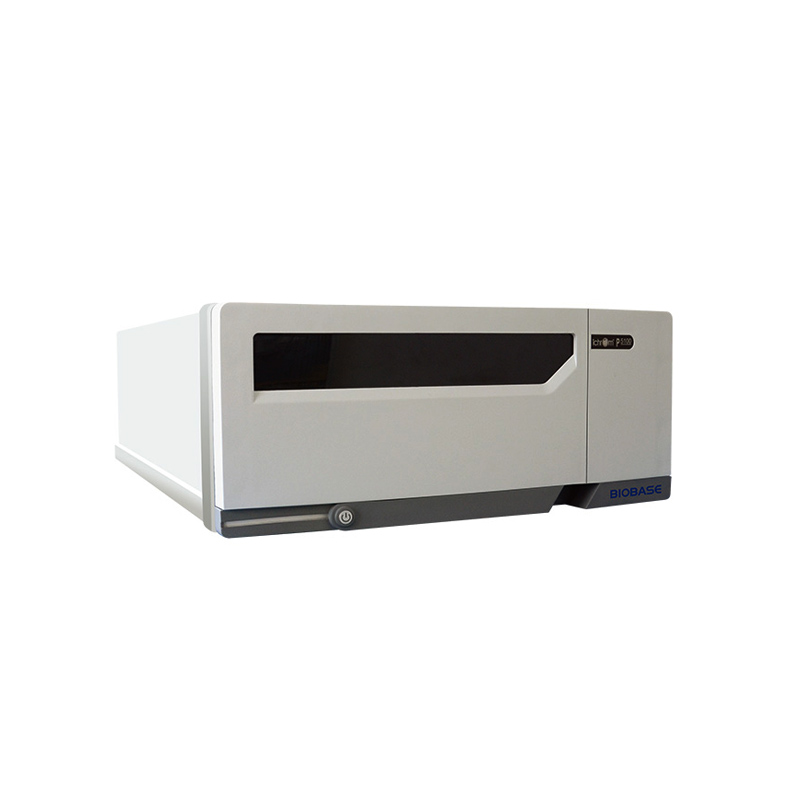

P5100 Series Pumps:

P5101 high pressure pump; P5102 high pressure binary pump; P5103 low pressure quaternary pump

Flow Range	0.001~10.000mL/min(step 0.001mL/min)
Accuracy	≤±0.2%
Precision	≤0.06%RSD
Pressure Range	0~63MPa
Power	AC220V±10%, 50Hz; 100W
Dimensions/Weight	540*400*160mm(L* W*H)/25kg

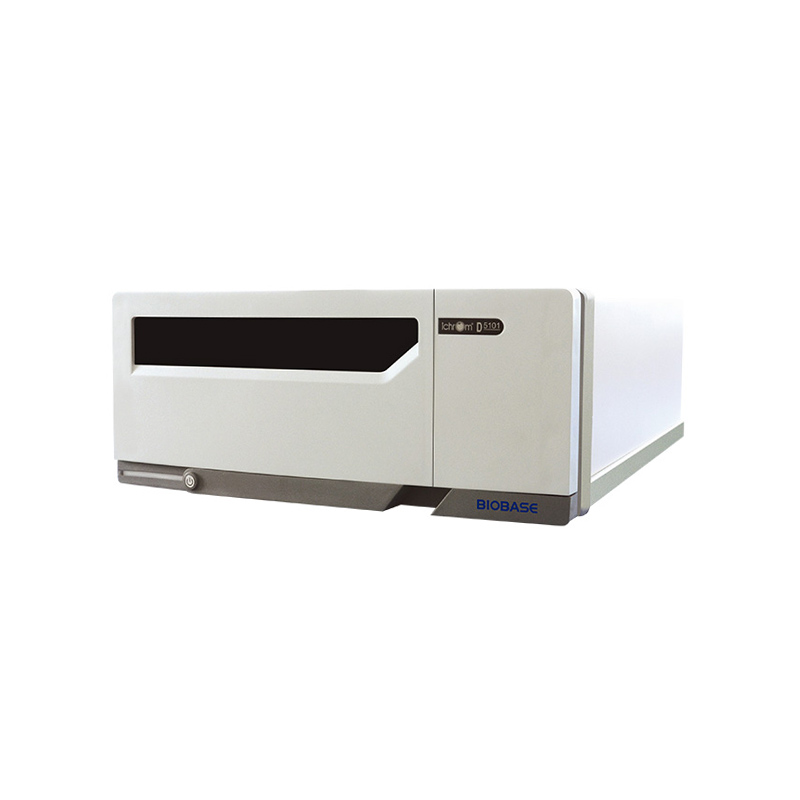

D5101 UV-VIS Detector:

Linearity	≥2.0AU
Wavelength Range	190~800nm
Noise	≤±0.25x10^-5AU
Drift	≤0.5x10^-4AU/h
Power	AC220V±10%, 50Hz; 100W
Dimensions/Weight	540*400*160mm(L*W*H)/16kg

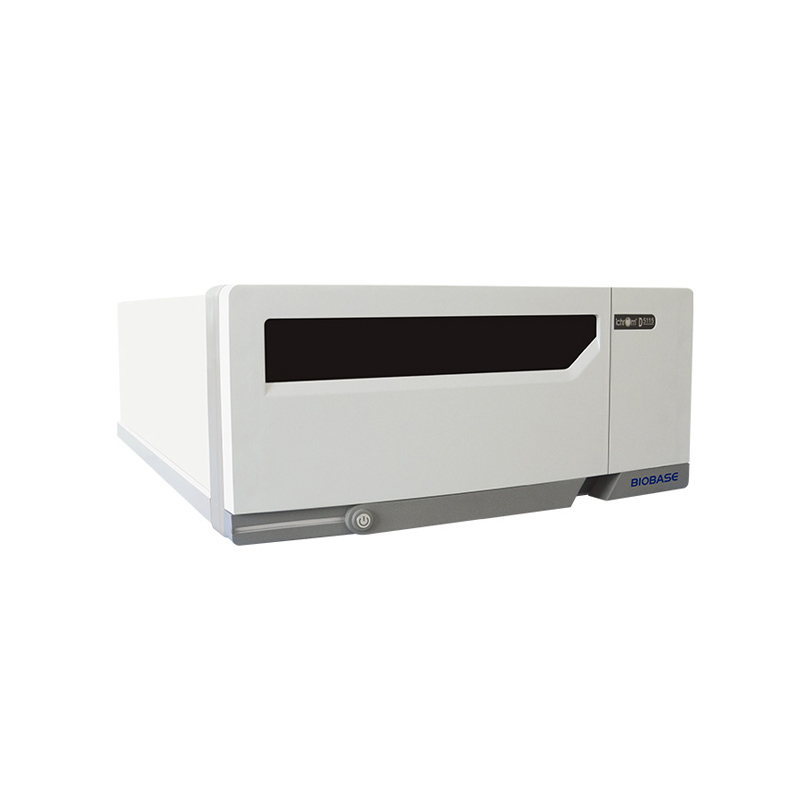

D5115/5116 Diode Array Detector:

Linearity	≥2.0AU
Wavelength Range	190~800nm
Noise	≤±1.0x10^-5AU
Drift	≤2.0x10^-4AU/h
Power	AC220V±10%, 50Hz; 100W
Dimensions/Weight	540*400*160mm(L* W*H)/16kg

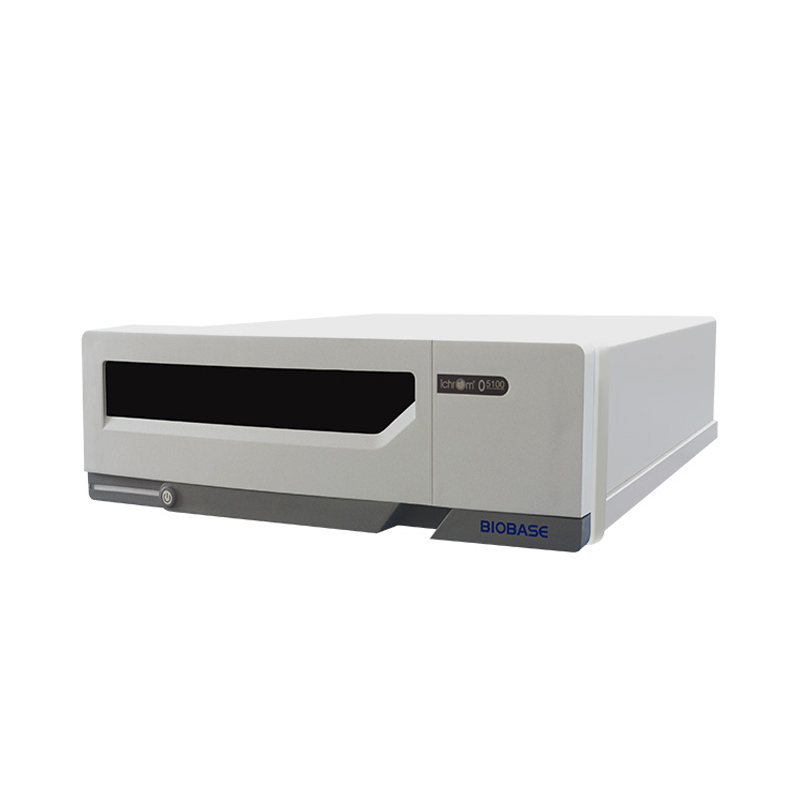

O5101 Column Oven:

Temperature Range	Ambient +5℃~85℃
Accuracy	±0.1℃
Precision	≤0.1℃
Power	AC220V±10%, 50Hz; 130W
Dimensions/Weight	540*400*120mm(L* W*H)/15kg

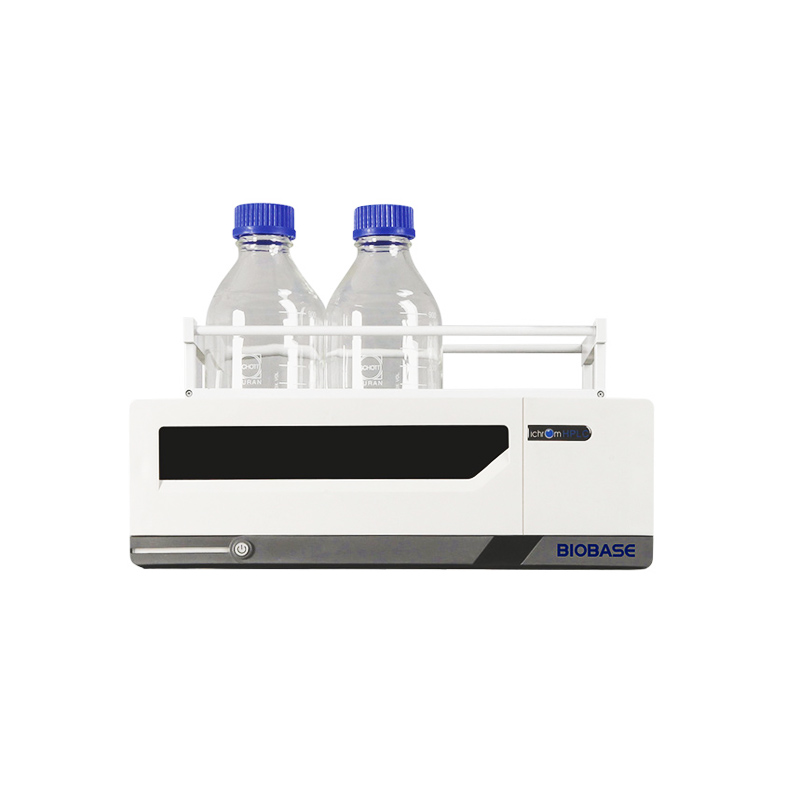

M5100 System Controller:

M5100 system controller integrates data communication hub, power distribution hub, solvent tray, and on-line degassing.

M5101 System controller for BK5100.

M5102 System controller for BK5100 with binary on-line degassing.

M5103 System controller for BK5100 with quaternary on-line degassing use with P5103.

On-line Degasser	2~4
Wetted Materials	PEEK, Teflon® AF
Power	AC220V±10%, 50Hz; 30W
Dimensions /Weight	540*400*120mm(L* W*H)/10kg

Technical Parameters:

Model	iChrom 5100(Type I)	iChrom 5100(Type II)	iChrom 5100(Type III)	iChrom 5100(Type IV)
Pump	P5101*1	P5102*1	P5103*1
Detector	D5101*1			DAD5115 512 *1
System Controller	M5101*1		M5103*1
Sampler Injector	Rheodyne 7725i*1
Column	Supersil ODS2 5μm ID4.6*200mm*1
Workstation	Kromstation*1			Kromstation+PDA
Valve Mounting Frame	VB5101*1
System Kit	iChrom 5100*1
Power Supply	AC220V±10%, 50Hz
Optional Accessory	500ml Solvent Bottle*2, Column, Column Oven, S5100 Auto-sampler, M5102 System Controller(for iChrom 5100(Type II))		500ml Solvent Bottle*4, Column, Column Oven, S5100 Auto-sampler
Package Size(W*D*H)	700*570*350mm*2 700*570*310mm*1
Gross Weight	66kg	75kg	77kg	77kg





High Performance Liquid Chromatography System iChrom 5100 — professional solution in the High Performance Liquid Chromatography category

High Performance Liquid Chromatography System iChrom 5100 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why High Performance Liquid Chromatography System iChrom 5100

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: High Performance Liquid Chromatography System iChrom 5100 fits easily into existing process lines and IT infrastructure.

Areas of application High Performance Liquid Chromatography

High Performance Liquid Chromatography solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing High Performance Liquid Chromatography System iChrom 5100 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with High Performance Liquid Chromatography System iChrom 5100 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
