Features:
1. Classic, inherited product reliability for more accurate and consistent results.
2. Professional, national standard technology leader, making more effective and applicable.
3. Eficient, perfectly superb compatibility makes more convenient and easier.
P3220 High-Pressure Constant Flow Pump:
Flow Range | 0.001~10.000mL/min(step 0.001mL/min) |
Accuracy | ≤±0.2% |
Precision | ≤0.06%RSD |
Pressure Range | 0~70MPa |
Communication Methods | UDP Network Communication |
Power | AC220V±10%, 50Hz; 300W |
Dimensions/Weight | 440*350*185mm(L* W*H*)/18kg |
P3230 Low Pressure Quaternary Pump:
Flow Range | 0.001~10.000mL/min(step 0.001mL/min) |
Accuracy | ≤±0.2%(1.00ml/min, H2O, R.T 8.5MPa) |
Stability | <0.06%(1.00m/min, H2O, R.T, 8.5MPa) |
Maximum Pressure | 63MPa |
Pulsation | ≤0.1MPa(1.00m/min, H2O, R.T, 8.5MPa) |
Communication Methods | UDP Network Communication |
Power | AC220V±10%, 50Hz; 150W |
Dimensions/Weight | 440*380*180mm(L* W*H*)/18kg |
D3210 UV-Vis Detector:
Linearity | ≥2.5AU |
Wavelength Range | 190~800nm |
Wavelength Repeatability | ±0.1nm |
Wavelength Accuracy | ±1.0nm |
Noise | ≤1.5x10^-5 AU(Single wavelength) ≤5.0x10^-5AU(Double wavelength) |
Drift | ≤2.0x10^-4 AU/h |
Light Source | Deuterium Lamp, Tungsten Lamp |
Optical Path | Dual beam optical path |
Response Time | 0.1~5s |
Sampling Frequency | 5Hz/10Hz/20Hz/50Hz; Double wavelength 1Hz |
Cell | Optical path 10mm; Proof pressure 1000psi |
Communication Methods | UDP Network Communication |
Power | AC220V±10%, 50/60Hz; 100W |
Dimensions/Weight | 440*378*160mm(L*W*H*)/10kg |
O3220 Column Oven:
Temperature Range | Ambient +5℃~80℃ |
Accuracy | ±0.5℃ |
Precision | ≤0.1℃ |
Power | AC220V±10%, 50Hz; 130W |
Dimensions/Weight | 435*137*450mm(L* W*H)/11kg |
Technical Parameters:
Model | EClassical 3200(Type I) | EClassical 3200(Type II) | EClassical 3200(Type III) |
Pump | P3220*1 | P3230*1 |
Detector | D3210*1 |
Solvent Switching Module | / | Solvent switching module(built in high pressure pump)*1 | / |
Solvent Bottle Tray | T3200*1 |
Sampler Injector | Rheodyne 7725i*1 |
Column | Supersil ODS2 5μm ID4.6*250mm*1 |
Workstation | Kromstation*1 |
Valve Mounting Frame | VB3200*1 |
Multifunctional Mounting Frame | MB3200*1 |
Column Mounting Frame | CB3200*1 |
System Kit | EClassical 3200*1 |
Power Supply | AC220V±10%, 50Hz |
Optional Accessory | Auto-sampler, Column, O3220 Column Oven, D3270 Evaporative Light Scattering Detector, RI-201H Differential Refractive Index Detector, D3250 Fluorescence Detector Solvent Bottle 1000ml*2 | Auto-sampler, Column, O3220 Column Oven, D3270 Evaporative Light Scattering Detector, RI-201H Differential Refractive Index Detector, D3250 Fluorescence Detector Solvent Bottle 1000ml*4 |
Package Size(W*D*H) | 580*470*370mm*3 490*350*100mm*1 | 580*470*370mm*3 490*350*100mm*1 | 580*470*370mm*3 490*350*100mm*1 |
Gross Weight | 52kg | 53kg | 48kg |

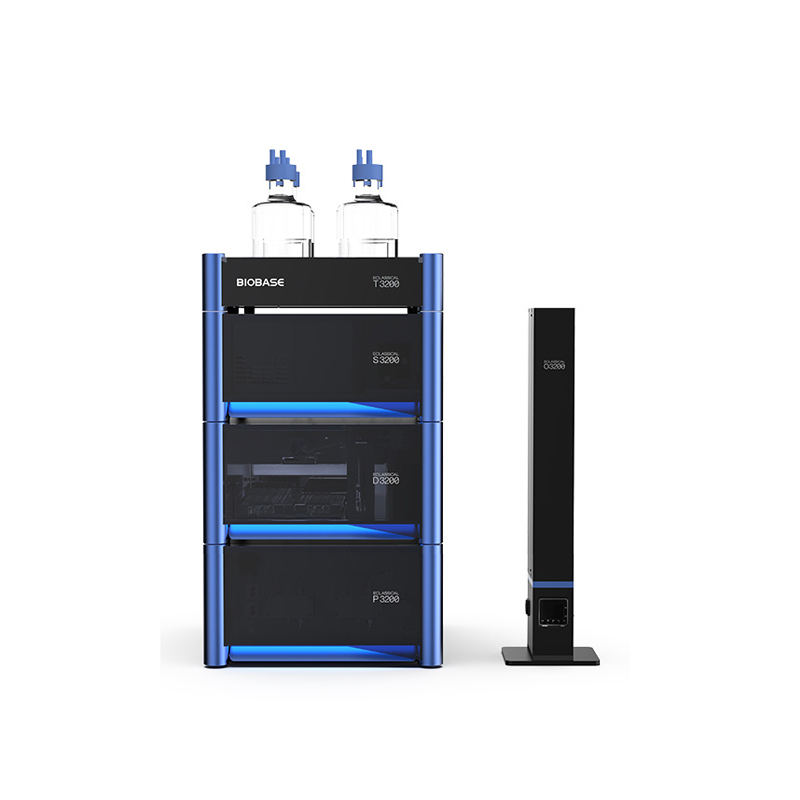

High Performance Liquid Chromatography System EClassical 3200 — professional solution in the High Performance Liquid Chromatography category
High Performance Liquid Chromatography System EClassical 3200 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why High Performance Liquid Chromatography System EClassical 3200
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: High Performance Liquid Chromatography System EClassical 3200 fits easily into existing process lines and IT infrastructure.
Areas of application High Performance Liquid Chromatography
High Performance Liquid Chromatography solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing High Performance Liquid Chromatography System EClassical 3200 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with High Performance Liquid Chromatography System EClassical 3200 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add High Performance Liquid Chromatography System EClassical 3200 to the cart or contact our manager. We will help integrate High Performance Liquid Chromatography into existing processes without downtime and unnecessary costs.
