Features:
1. The original pipelines and signal lines between the units are integrated into the instrument, which is convenient for installation and maintenance, economical and efficient.
2. The one-way valve is upgraded to an integrated one-way valve, which greatly reduces the maintenance cost while ensuring the service life of the instrument.
3. Intelligent networked chromatography management workstation software is configured.
4. Liquid leakage alarm, pump head pressure loss alarm, etc. are configured.
Technical Parameters:
Model | BK-80HPLC(Type I) Isocratic Manual System | BK-80HPLC(Type II) Isocratic Manual System |
Flow Range | 0.001~5.000ml/min |
Flow Stability Error SR | <0.1% |
Flow Setting Value Error SS | ≤±1% |
Maximum Working Pressure | 40MPa |
Qualitative Repeatability | RSD6≤±0.2%(naphthalene/methanol standard) |
Quantitative Repeatability | RSD6≤±0.5%(naphthalene/methanol standard) |
Pressure Fluctuation | 0.1MPa |
Spectrum Bandwidth | 8nm |
Wavelength Accuracy | ±1nm |
Wavelength Precision | Below 0.1nm |
Noise | ≤0.25×10⁻⁵AU(static)/±1×10⁻⁵AU(dynamic, under given conditions) |
Drift | ≤0.4×10⁻³AU/h(static)/≤2×10⁻³AU/h(dynamic, under given conditions) |
Minimum Detectable Concentration | 5×10⁻⁹g/mL(naphthalene/methanol solution) |
Configuration | Main unit(Isocratic+UV detector), injection valve, control software, 150mm C18 column | Main unit(Isocratic+UV detector), injection valve, control software, 250mm C18 column |
Optional Accessories | Column, column oven |
Power Supply | Standard: AC220V, 50/60Hz; Optional: 110V, 50/60Hz |
External Size(W*D*H) | 220*455*267mm |
Packing Size(W*D*H) | 450*630*450mm |
Gross Weight | 20kg |

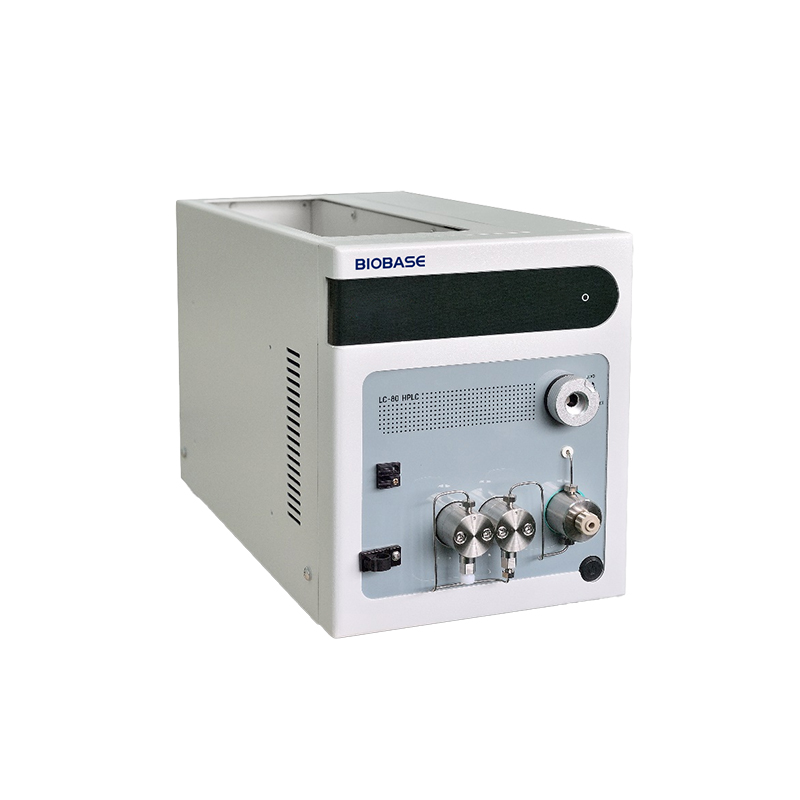

High Performance Liquid Chromatography System BK-80HPLC — professional solution in the High Performance Liquid Chromatography category
High Performance Liquid Chromatography System BK-80HPLC is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why High Performance Liquid Chromatography System BK-80HPLC
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: High Performance Liquid Chromatography System BK-80HPLC fits easily into existing process lines and IT infrastructure.
Areas of application High Performance Liquid Chromatography
High Performance Liquid Chromatography solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing High Performance Liquid Chromatography System BK-80HPLC allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with High Performance Liquid Chromatography System BK-80HPLC you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add High Performance Liquid Chromatography System BK-80HPLC to the cart or contact our manager. We will help integrate High Performance Liquid Chromatography into existing processes without downtime and unnecessary costs.
