HELISTAND Set

HELISTAND Tripod Set

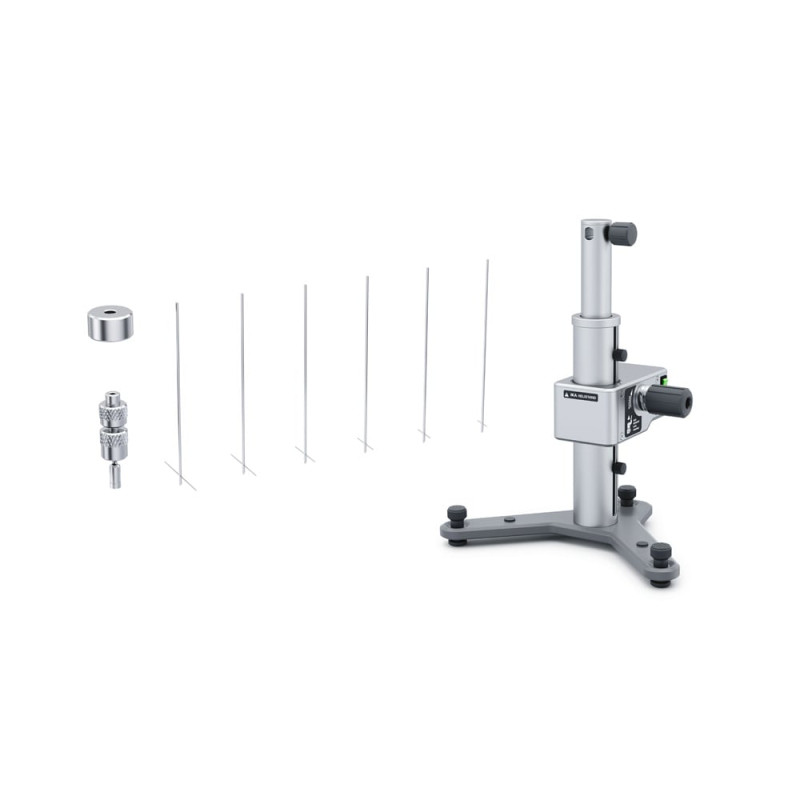

The motorized IKA HELISTAND allows you to measure the viscosity of highly viscous samples with a high level of reliability. It slowly and evenly moves the mounted viscometer and its rotating housing up and down in the sample. Highly viscous samples such as creams, pastes, paints and gelatine cause the static viscometer to operate in an empty state. These substances are so viscous that the rotating movements push them to the edge. An air channel is created around the rotating housing, so the torque acting on it is no longer significant. The IKA HELISTAND can prevent this by means of slow up and down movements.

In combination with the included T-spindles, you can obtain meaningful viscosity measurements for non-flowing samples.

Technical specifications:

Max. stroke [mm]: 142

Diameter [mm]: 16

Dynamic load [kg]: 3.2

Overload protection: yes

Height-adjustable safety switch: yes

Weighing function: no

Dimensions (W x H x D) [mm]: 351 x 330 x 262

Weight [kg]: 6

Permissible relative humidity [%]: 80

Protection class according to DIN EN 60529: IP 40

RS 232 interface: no

USB interface: no

WPAN interface: no

WiFi interface: no

Voltage [V]: 220 - 230 Frequency [Hz]: 50/60

Input power [W]: 7

Maximum input power [W]: 7

Standby power input [W]: 0

HELISTAND Set — professional solution in the Accessories category

HELISTAND Set is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why HELISTAND Set

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: HELISTAND Set fits easily into existing process lines and IT infrastructure.

Areas of application Accessories

Accessories solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing HELISTAND Set allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with HELISTAND Set you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
