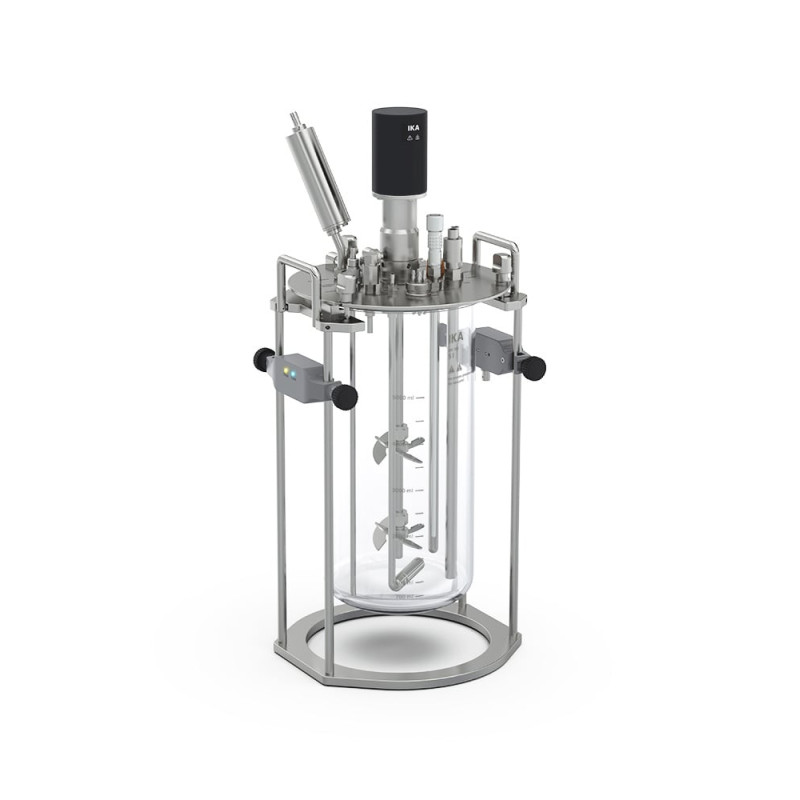

HABITAT cell sw 5 single-wall, for 5 l

The 5-liter vessel package for the bioreactor HABITAT research contains a 5-liter single-walled glass vessel for cell culture applications as well as the appropriate stirring drive, including the following sensors: temperature-, pH-, DO-, level- and foam sensors. Additionally, the necessary connection accessories are included. Together with the separately available control tower package (e.g. HABITAT cell) you receive all necessary components for a successful cultivation. Reactor: Cell Growth Volume [l]: 5 Type: single wall Heating blanket: yes Heating sleeve voltage [V]: 48 Heating sleeve power [W]: 250 Single use: no Multi use: yes Autoclavable: yes Inner diameter [mm]: 160 Ratio = height / inner diameter: 2.31 Useable volume min. [l]: 1.0 Useable volume max. [l]: 6.7 Reactor vessel material: borosilicate glass Reactor lid material: stainless steel 1.4404 Net weight reactor vessel [kg]: 2.36 Net weight reactor assembled [kg]: 13.29 Number lid ports: 15 Lid ports (Baffle): 1 Lid ports (pH): 1 Lid ports (Reserve): 4 Lid ports (Condenser): 1 Lid ports (Cooling Finger): 1 Lid ports (Inoculation): 1 Lid ports (Harvest Pipe): 1 Lid ports (Sparger): 1 Lid ports (Feed): 0 Lid ports (4in1): 1 Lid ports (Temperature): 1 Lid ports (DO): 1 Lid ports (Level): 1 Material in contact with medium: AISI 316L, borosilicate glass 3.3, silicone USP class VI Motor coupling: shaft feedthrough Harvest pipe outer diameter [mm]: 6 Harvest pipe inner diameter: 4 Harvest pipe design: straight Harvest pipe, height adjustable: yes Feeding port, outer diamter [mm]: 4.5 Feeding port, inner diamter [mm]: 2 Feeding port, amount: 4 Inoculation port, outer diamter [mm]: 6 Inoculation port, inner diameter [mm]: 4 Sparger: Micro sparger Sparger, outer diameter [mm]: 8 Sparger, inner diameter [mm]: 6 Sparger pore size [μm]: 5 Cooling finger: Accessory Cooling finger connection threat [mm]: M27x3 Cooling finger water connection, outer diamter [mm]: 8 Stirrer design: Centrifugal stirrer, 2-bladed Stirrer diameter 3 pitchblade [mm]: 59 Ratio = stirrerdiameter 3 blade / inner diameter reactor: 0.37 Stirrer quantity: 2 Condenser: yes Condenser, connection threat: M16x2 Type of cooling: Vertical condenser Condenser Temperature min. [°C]: 5 Temperature min. / Condenser with Peltier [°C]: 15 Temperature min. / Condenser with water cooling [°C]: 5 Filtertype: sterile filter Filtermaterial: PTFE reinforced with PP Filter housing material: PP Pore size [μm]: 0.22 Filter heater: yes Spin filter [μm]: 40 Baffle: Accessory Temperature measuring: yes Working temperature sensor: PT1000 pH sensor: yes pH sensor connection threat: PG 13.5 pO2 sensor: yes pO2 sensor connection threat: PG 13.5 Level sensor: IKA HA.s.lv Foam sensor: IKA HA.s.fo Turbidity sensor: Accessory Conductivity sensor: Accessory CO2 sensor: Accessory Stirring motor: yes Speed range [rpm]: 1 - 1500 Heating blanket: yes Heat output [W]: 250 Flowrate Air min. [cc/min]: 10 Flowrate Air max. [cc/min]: 2000 Flowrate O2 min. [cc/min]: 10 Flowrate O2 max. [cc/min]: 2000 Flowrate N2 min. [cc/min]: 10 Flowrate N2 max. [cc/min]: 2000 Flowrate CO2 min. [cc/min]: 10 Flowrate CO2 max. [cc/min]: 2000 Dimensions (W x H x D) [mm]: 260 x 605 x 260

HABITAT cell sw 5 single-wall, for 5 l — professional solution in the IKA®-Werke GmbH & Co. KG category

HABITAT cell sw 5 single-wall, for 5 l is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why HABITAT cell sw 5 single-wall, for 5 l

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: HABITAT cell sw 5 single-wall, for 5 l fits easily into existing process lines and IT infrastructure.

Areas of application IKA®-Werke GmbH & Co. KG

IKA®-Werke GmbH & Co. KG solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing HABITAT cell sw 5 single-wall, for 5 l allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with HABITAT cell sw 5 single-wall, for 5 l you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
