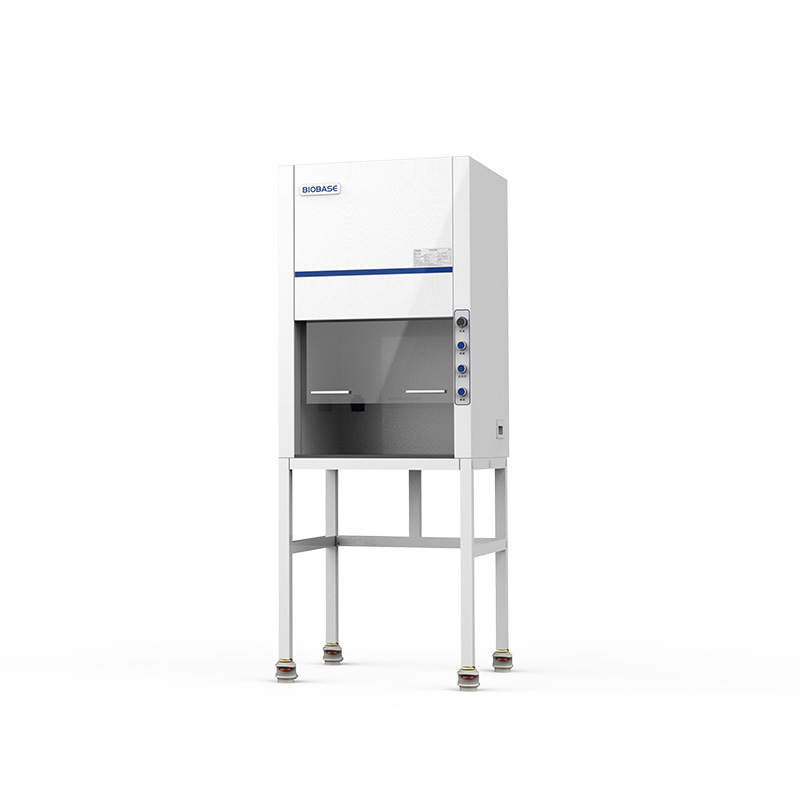

Fume Hood BK-FH700

Features:

1. The cabinet is designed with a vertical surface, the operation perspective is wide and more humanized.

2. Made of high quality cold rolled steel plate material, surface electrostatic spraying, with good finish.

3. The platform panel of the operation area of the fume hood is made of solid physical and chemical plate, which is resistant to acid and alkali corrosion and can be disassembled for easy cleaning(integral type).

4. The front window adopts 5mm thick tempered glass to better protect the safety of personnel and experiments.

5. Counterweight manual front window, height adjustable.

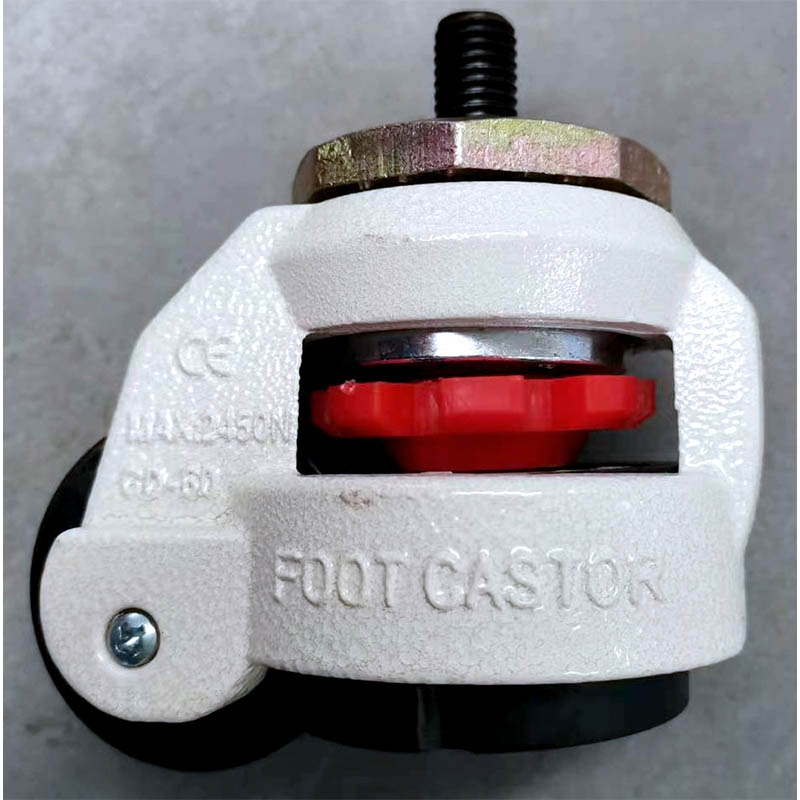

6. The base bracket and footmaster castor integrated design, safely moved through the casters, also well fixed and levelled.

7. Equipped with PP axial flow fan, large air volume, low noise, long service life, easy installation.

8. The fan can be stepless speed regulation, the function button is push-button switch, stable performance.

9. The side of the cabinet body is equipped with lifting handles to facilitate carrying.

Technical Parameters:

Model		BK-FH700
Number of Users		Single
Rated Power		95W(Not including socket load power, load power cannot exceed 500W)
Power Supply		220V±10%, 50Hz(Standard); 110±10%V, 60Hz(Optional)
Exhaust Volume		1225m³/h
Air Velocity		0.3m/s～0.8m/s
Noise		≤65dB(A)
LED Lamp		4W
Max Opening		410mm(Integral Type)
Tabletop Height		810mm(Integral Type)

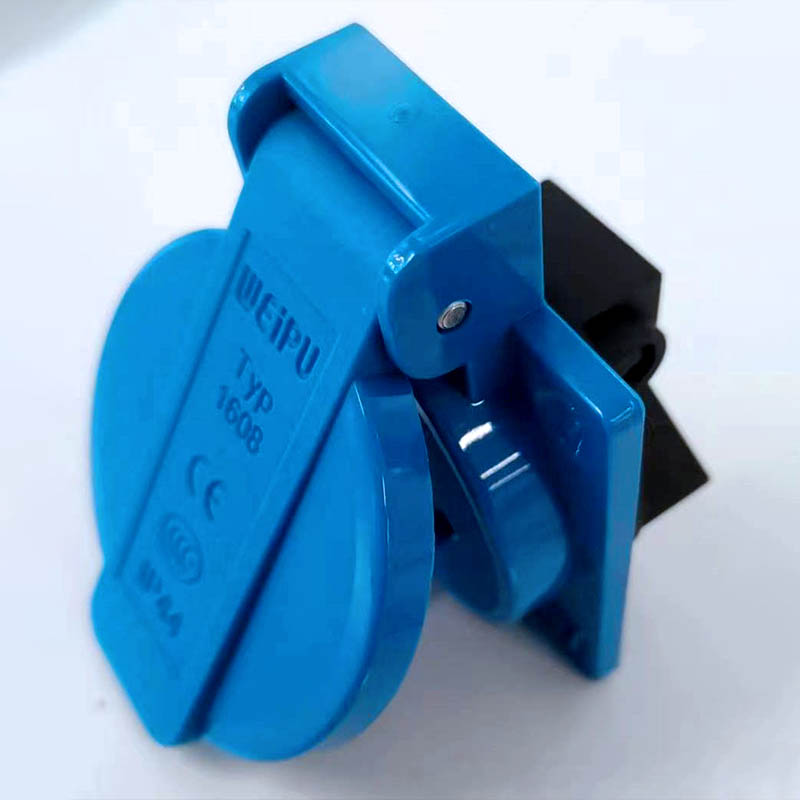

Standard Accessory		LED lamp, National standard three core water proof socket
Optional Accessory		Base stand, Solid physical and chemical board

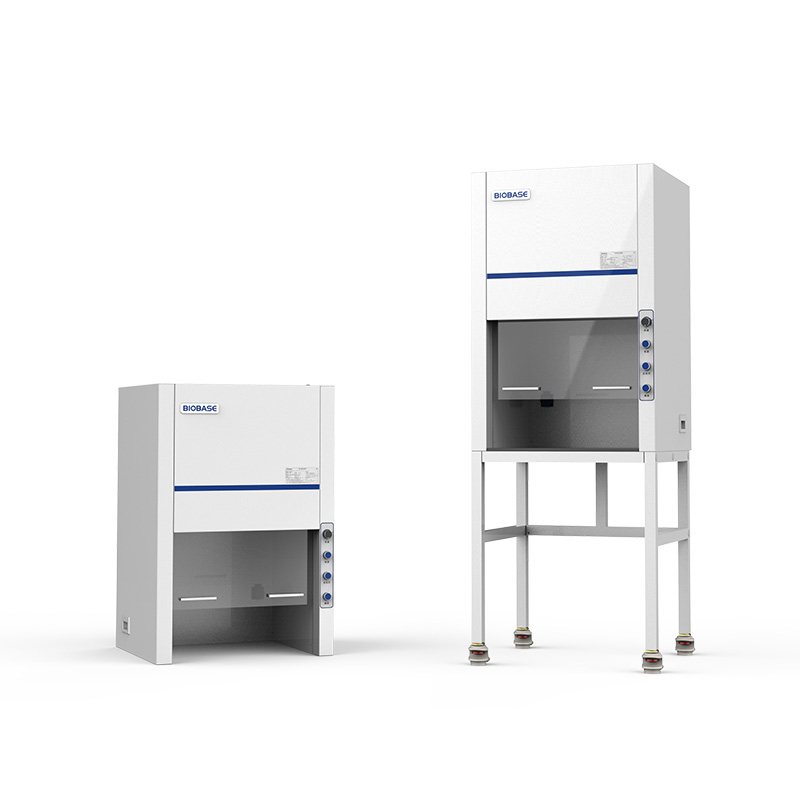

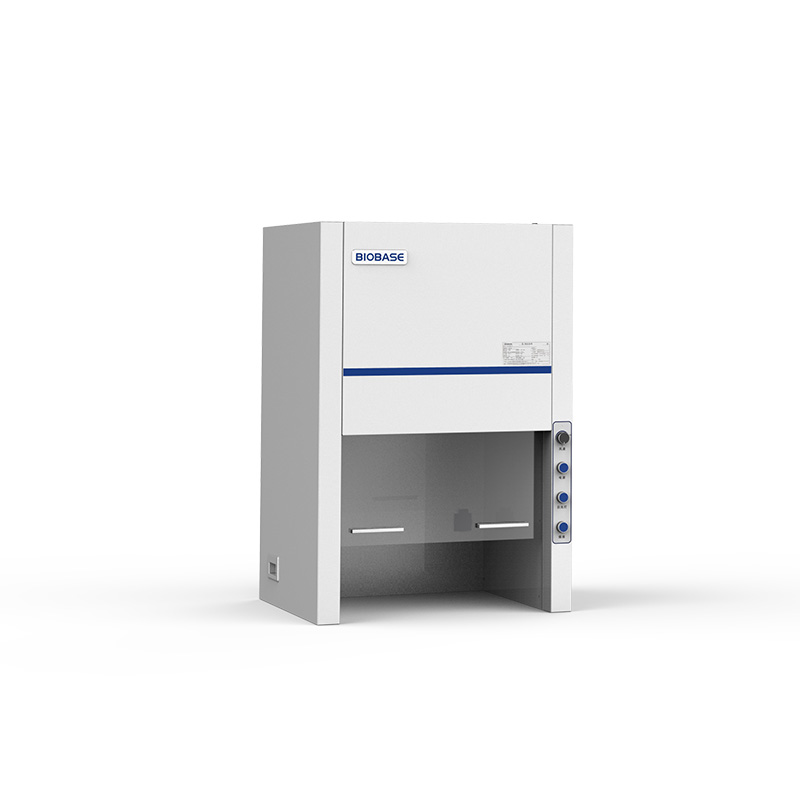

Net Weight	Desktop Type	60kg
	Integral Type	80kg
Gross Weight	Desktop Type	78kg
	Integral Type	100kg
External Size(W*D*H)	Desktop Type	700*650*1050mm
	Integral Type	700*650*1850mm
Internal Size(W*D*H)		580*510*687mm
Package Size(W*D*H)	Desktop Type	805*840*1250mm
	Integral Type	960*840*1250mm

Fume Hood BK-FH700 — professional solution in the Fume Hood category

Fume Hood BK-FH700 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Fume Hood BK-FH700

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Fume Hood BK-FH700 fits easily into existing process lines and IT infrastructure.

Areas of application Fume Hood

Fume Hood solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Fume Hood BK-FH700 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Fume Hood BK-FH700 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
