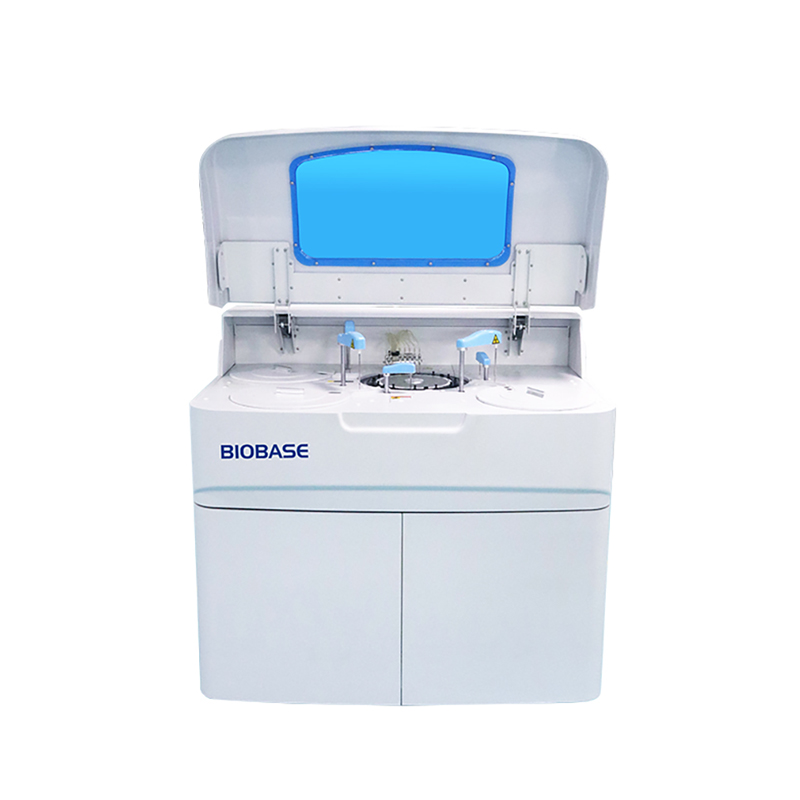

Fully Automated Human Blood Biochemistry Chemistry Analyzer Fully Automatic BK-600

Features:

1. 600 tests per hour.

2. 120 reaction cuvettes.

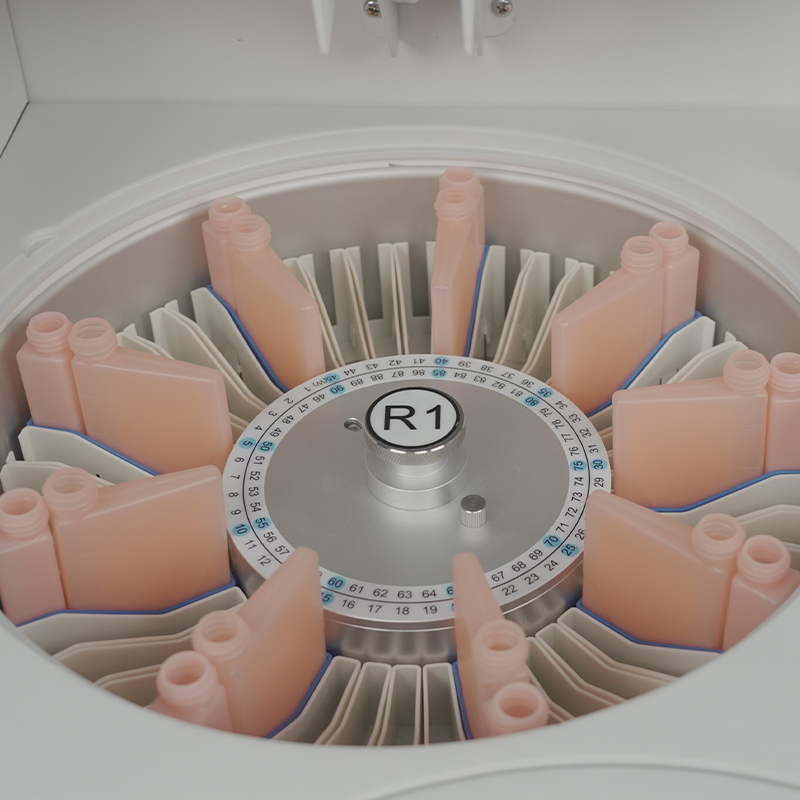

3. 180 refrigerated reagent positions.

4. Built-insample barcode system optional.

5. 90 sample positions(120 sample positions optional).

6. Probe with anti-collision function, liquid level detection function.

Technical Parameters:

Model	BK-600
Overall Performance	Throughput	600 tests/hour
	Analysis Method	End-point, Fixed-time, Rate(Kinetic), Turbidimetry
	Certification	CE, FDA, ISO9001, ISO13485
Sample&Reagent System	Sample Positions	90 sample positions, built-in barcode system available
	Reagent Positions	180 refrigerated reagent positions(R1: 90 & R2: 90)
	Sample Volume	1~70μl
	Reagent Volume	10~350μl

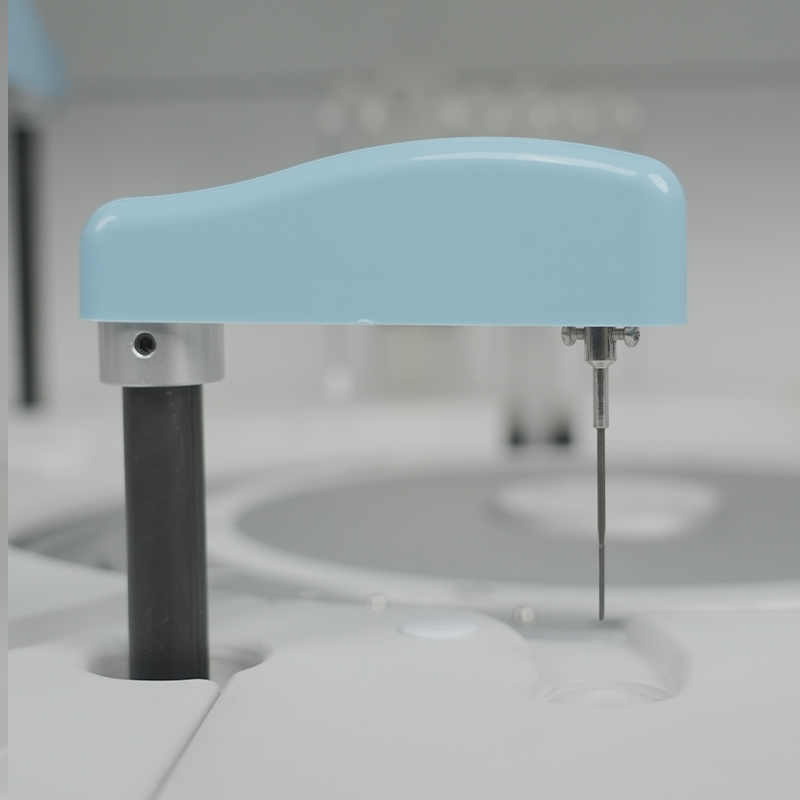

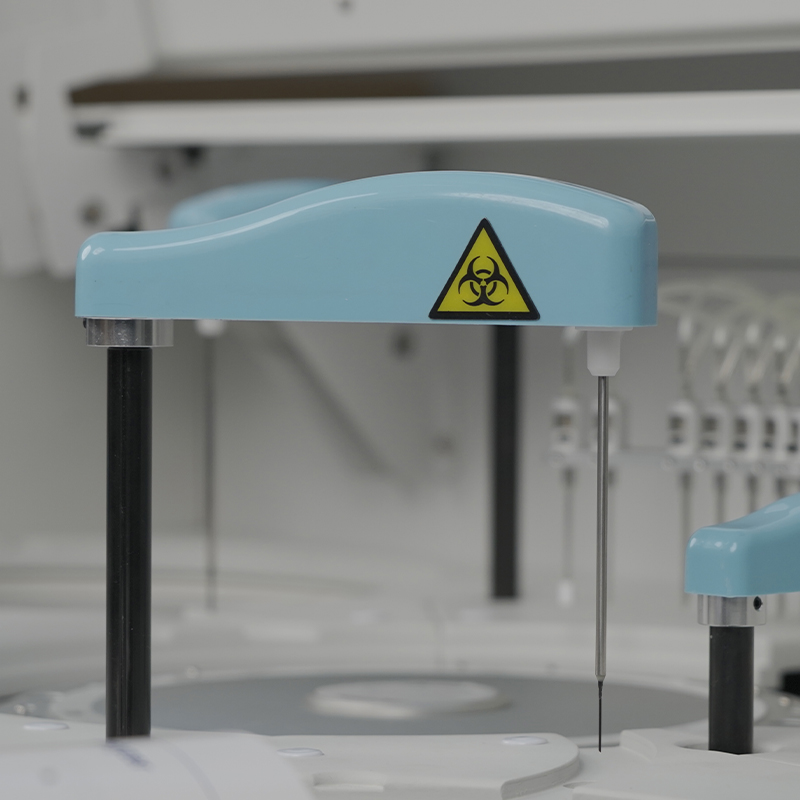

	Probe	Teflon coating, with anti-colision function, liquid level detection function
	Probe Washing	Automatic washing interior and exterior
	Reagent Cooling	2~8℃
Reaction System	Temperature Control	37±0.1℃, real-time monitoring

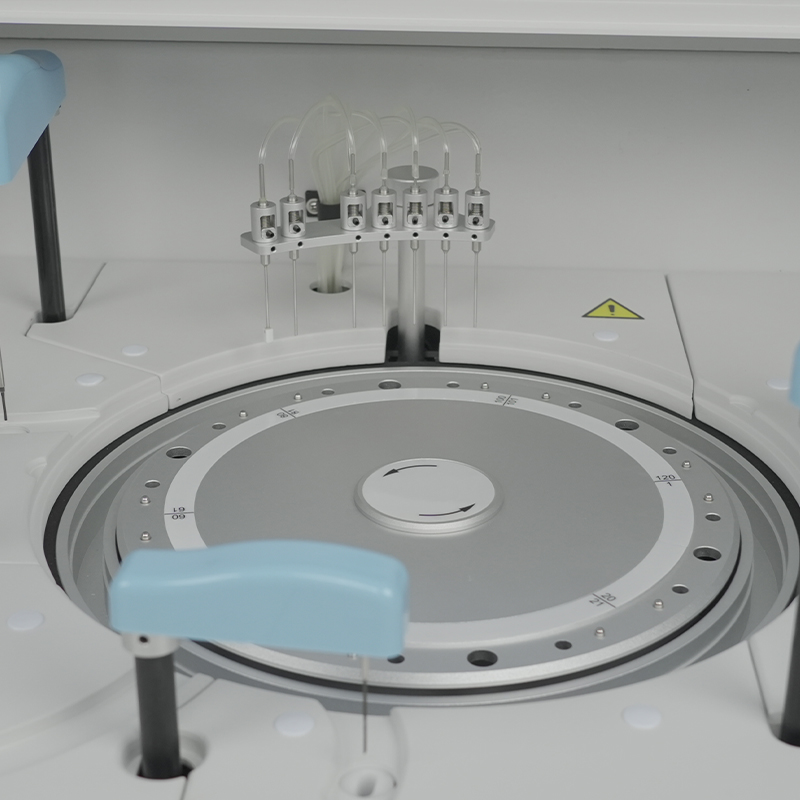

	Cuvettes	120 reusable cuvettes, optical length 6mm
	Mixer Probe	Independent stirring
	Washing	Automatic cuvettes washing
	STAT Function	YES
Optical System	Light Source	12V/20W halogen lamp
	Spectrophotometry	Post-spectral spectrophotometry
	Wavelength	340, 405, 450, 480, 505, 546, 570, 600, 630, 700, 750, 800nm
	Absorbance	0~3.5Abs
Calibration&QC	Calibration	1-point, 2-point and multipoint, factor, Spline, Logit-4P, Logit-5P, Polygon
	Quality Control	Inserting quality control at random
Data Management	Software	Windows 7/8/10
	LIS System	Available
	Interface	TCP/IP network interface
	Printer	External optional, multiple reporting mode available
Working Conditions	Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz, 800VA
	Temperature	15~30℃
	Water Consumption	Deionized water: 20L/H
	Humidity	40%~85%
Size&Weight	External Size (W*D*H)	1170*775*1145mm
	Net Weight	216kg
	Package Size (W*D*H)	1358*938*1387mm
	Gross Weight	281kg
	Accessory Package Size	550*430*860mm
	Accessory Gross Weight	20kg

Fully Automated Human Blood Biochemistry Chemistry Analyzer Fully Automatic BK-600 — professional solution in the Biochemistry Analyzer category

Fully Automated Human Blood Biochemistry Chemistry Analyzer Fully Automatic BK-600 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Fully Automated Human Blood Biochemistry Chemistry Analyzer Fully Automatic BK-600

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Fully Automated Human Blood Biochemistry Chemistry Analyzer Fully Automatic BK-600 fits easily into existing process lines and IT infrastructure.

Areas of application Biochemistry Analyzer

Biochemistry Analyzer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Fully Automated Human Blood Biochemistry Chemistry Analyzer Fully Automatic BK-600 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Fully Automated Human Blood Biochemistry Chemistry Analyzer Fully Automatic BK-600 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
