Features:
1. The cleaning agent is automatically and quantitatively added by peristaltic pump.
2. PLC micro-computer control, self-setting cleaning procedures, automatic operation, with audit tracking, three-level authority, automatic alarm and other management, monitoring functions.
3. Two water inlets controlled by electromagnetic valve, users can choose the tap water and pure water in wash and rinse phase.
4. Pure water inlet adopts built-in booster pump, which can directly inhale pure water without external booster.
5. With overflow protection, if there is too much water in cleaning chamber, the program will been stopped after alarm, and the water will be automatically drained at the same time.
6. Independent drainage pump, with the water seal design of the drainage pipeline to prevent the back flow of sewage.
7. The cleaning agent shortage reminder function, which can remind operators to add cleaning agent in time.

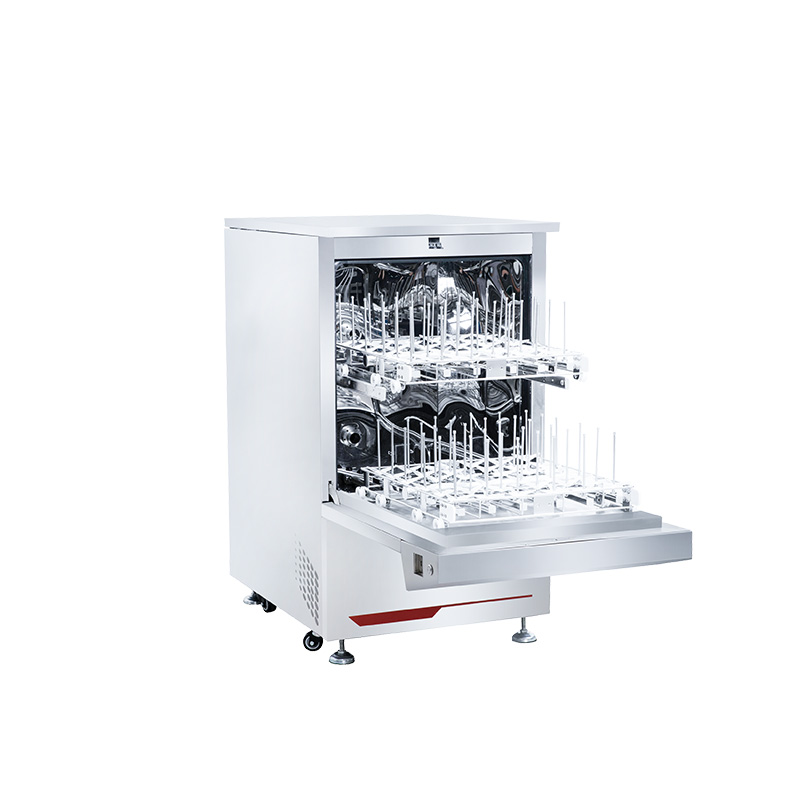

Cleaning Racks：
Technical Parameters:
Model | BK-LW200A |
Cleaning | Capacity | 200L |
Washer Load Level | 2 |
Water Wash Power | 0.75KW |
Water Heater Power | 3KW |
MAX. Power | 4KW |
Water Consumption/Step | 15L |
Tank Internal Temperature | 0~99℃ |
Water Supply Pressure | 0.3~1.0Mpa |
Peristaltic Pump for Cleaning Agent | 2 independent pumps control detergent agent and neutralizing agent |
Cleaning Agent Level Sensor | YES |
Washing Pump | Sweden 430L/min |
Standard Cleaning Racks | BKIR36A*2 |
Drying | Drying Function | NO |
Steam Condenser | NO |
Dry Power | NO |
Control System and Traceability | Control System | 7" color LCD touch screen display, microprocessor |
Cleaning Program | 12 pre-set programs(editable)+99 PLC free programming |
Password Protection | 3 levels password |
Safety Emergency Button | NO |
USB Port | YES |
Integrated Printer | NO |
Online Monitor Performance of Washing | NO |
Dimensions&Weight | Chamber Dimension(W*D*H) | 526*542*645mm |
Exterior Dimension(W*D*H) | 600*860*1040mm |
Package Dimension(W*D*H) | 720*980*1230mm |
Net Weight(Host only) | 125kg |
Gross Weight(Host with rack) | 165kg |
Others | Door | Foam SS door |
Safety Door Lock | YES |
Built-in RO Water Pump | YES |
Noise | <50dB |
Power Supply | AC220V, 50Hz(Standard); AC220V, 60Hz; 110V, 50/60Hz(Optional) |

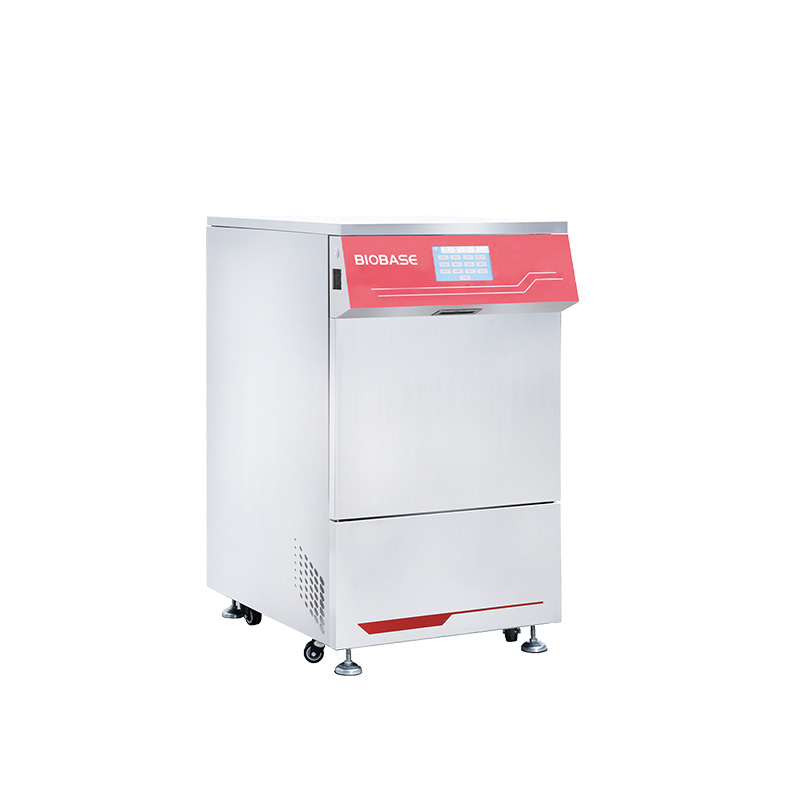

Full-automatic Glassware Washer BK-LW200A — professional solution in the Washer Disinfector category
Full-automatic Glassware Washer BK-LW200A is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Full-automatic Glassware Washer BK-LW200A
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Full-automatic Glassware Washer BK-LW200A fits easily into existing process lines and IT infrastructure.
Areas of application Washer Disinfector
Washer Disinfector solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Full-automatic Glassware Washer BK-LW200A allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Full-automatic Glassware Washer BK-LW200A you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Full-automatic Glassware Washer BK-LW200A to the cart or contact our manager. We will help integrate Washer Disinfector into existing processes without downtime and unnecessary costs.
