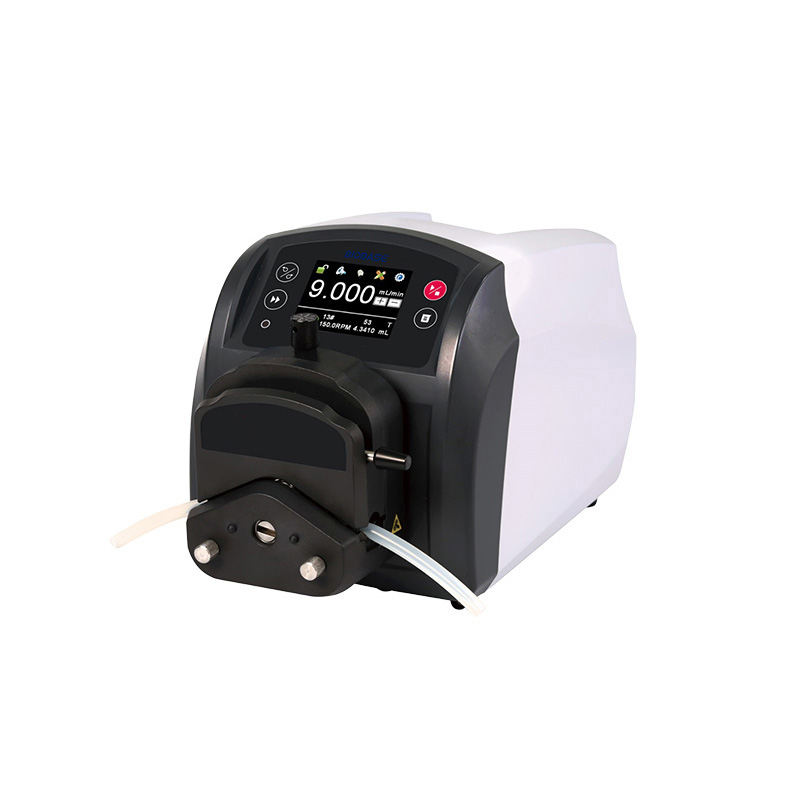

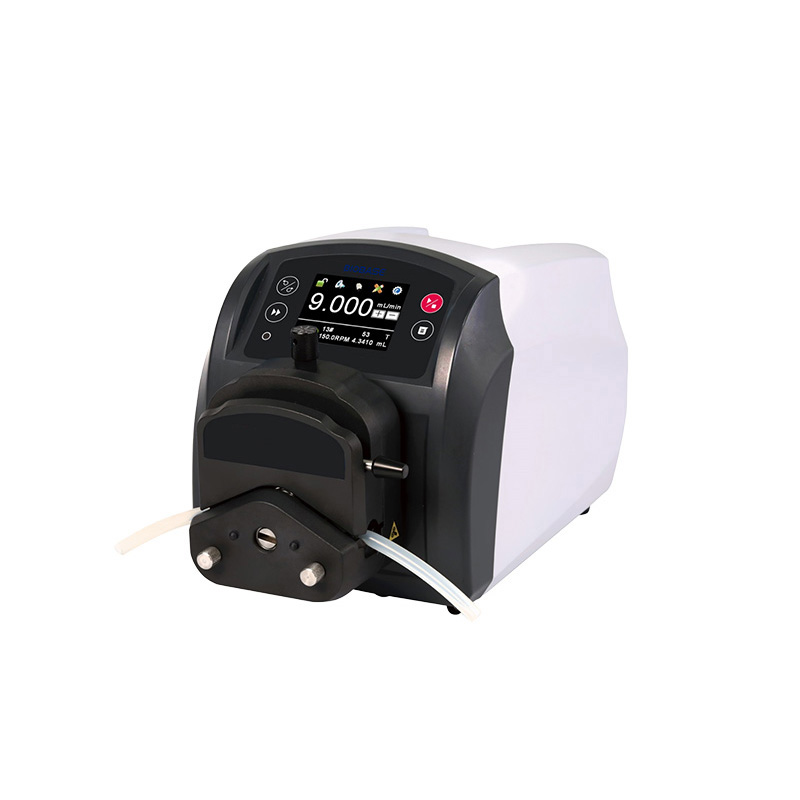

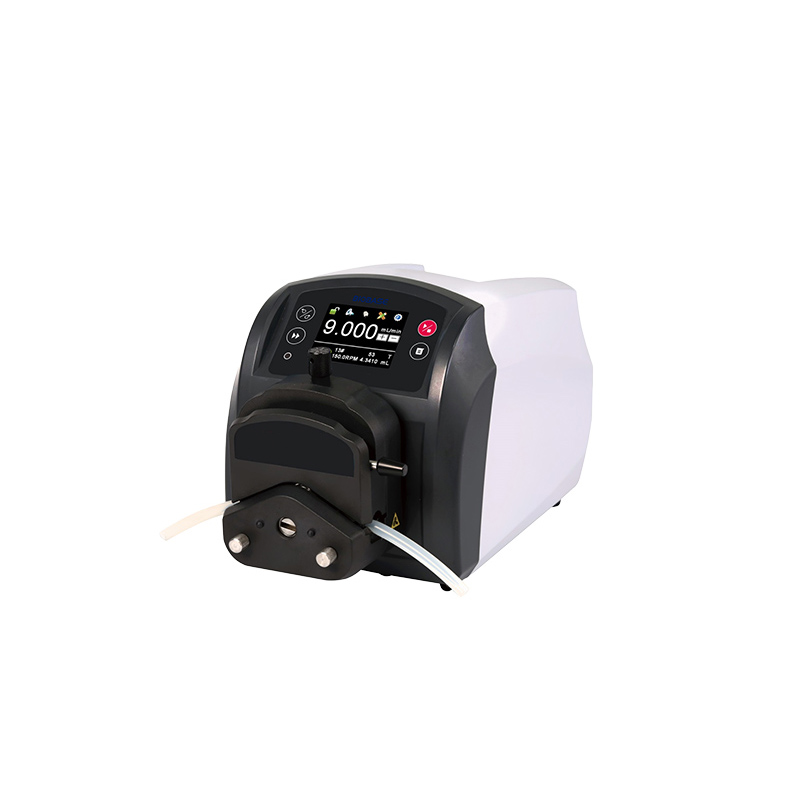

Flow Rate Peristaltic Pump BT-L Series

Features:

1. Color LCD display, touch screen and keypad for operating.

2. LF-Touch-OS software system, efficient and stable, with good human-computer interaction mode, convenient product customization and upgrade.

3. Start/stop, reversible direction, full speed, adjust speed and state memory(power-down memory).

4. Speed resolution 0.1rpm.

5. Flow display, flow control and flow accumulation.

6. Flow calibration function.

7. Easy dispensing function, it realizes the repeat timing quantitative dispensing without the time controller.

8. Intelligent temperature control function to minimize peristaltic pump noise, 45 decibel super mute design.

9. External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator, external analog adjusts the rotate speed.

10. RS485 interface, MODBUS protocol is available, easy to connect other equipment.

11. The internal structure adopts double-deck isolation design, and the circuit board with conformal coating makes it dust-proof and moisture-proof.

12. Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.

13. ABS plastic housing, creative streamlined appearance, concise and beautiful.

14. Can drive multi-channels and various types of pump heads.

Technical Parameters:

Model	BT101L	BT301L	BT601L
Flow Range	0.0001~720ml/min	0.005~1750ml/min	0.006~3000ml/min
Rotation Range	0.1~150rpm	0.1~350rpm	0.1~600rpm
Speed Resolution	0.1rpm
Speed Accuracy	<±0.2%
Power Supply	AC100~240V, 50Hz/60Hz
Power	<30W	<40W	<50W
External Control Interface	External control input level 5V, 12V(standard), 24V(optional); External control analog 0~5V(standard), 0~10V, 4~20mA(optional)
Communication Interface	RS485 communication, compatible with Modbus protocol
Working Environment	Ambient temperature 0~40°C, relative humidity <80%
Protection Level	IP31
Overall Dimensions(L*W*H)	261*180*197mm
Drive Weight	4.5kg	4.7kg	4.9kg
Packing Size	430*290*320mm
Gross Weight	8kg

Pump Head:



Applicable Pump Head, Hose& Flow Parameters

Driver Model	Applicable Pump Head	Number Of Channels	Applicable Hose	Single Channel Flow Rate(ml/min)
BT101L	DG/DS(6 rollers)	1, 2, 4	Wall 0.8~1mm, ID≤3.17mm	0.0002~49
	DG/DS(10 rollers)	1, 2, 4	Wall 0.8~1mm, ID≤3.17mm	0.00011~32
	YZ15/YZ15T	1, 2	13#14#19#15#25#17#18#	0.005~641
	YT25	1	114#116#15#24#35#36#	0.024~750
BT301L	YZ15/YZ15T	1, 2	3#14#19#16#25#17#18#	0.005~1495
	YT25	1	114#116#15#24#35#36#	0.024~1750
BT601L	YZ15/YZ15T	1, 2	13#14#19#16#25#17#18#	0.005~2562
	YT25	1	114#116#15#24#35#36#	0.024~3000

Remark: Customers can choose any one model hose as the standard configuration and the standard length is 2 meters.
