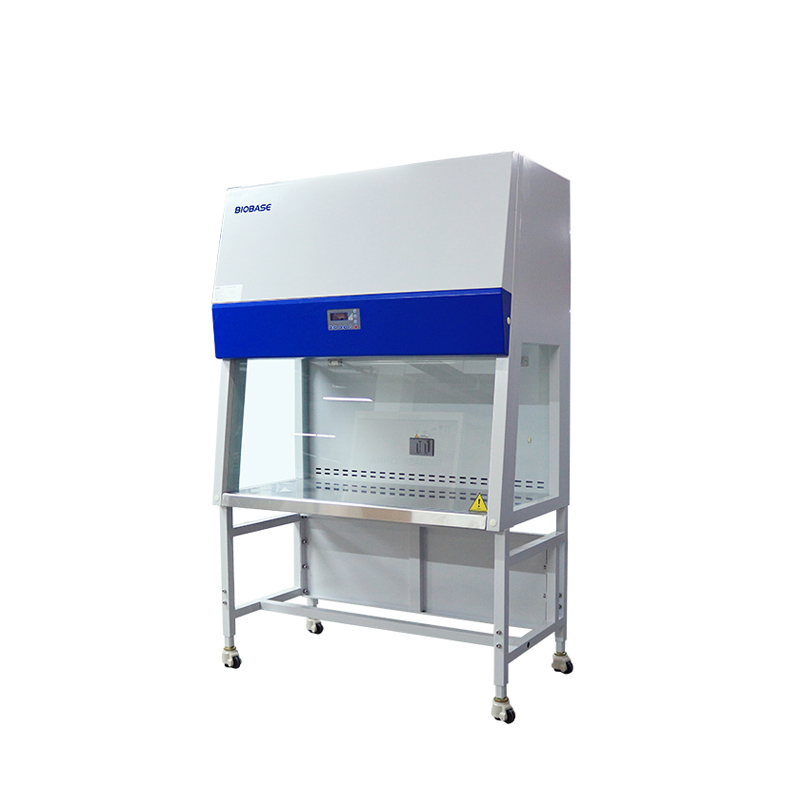

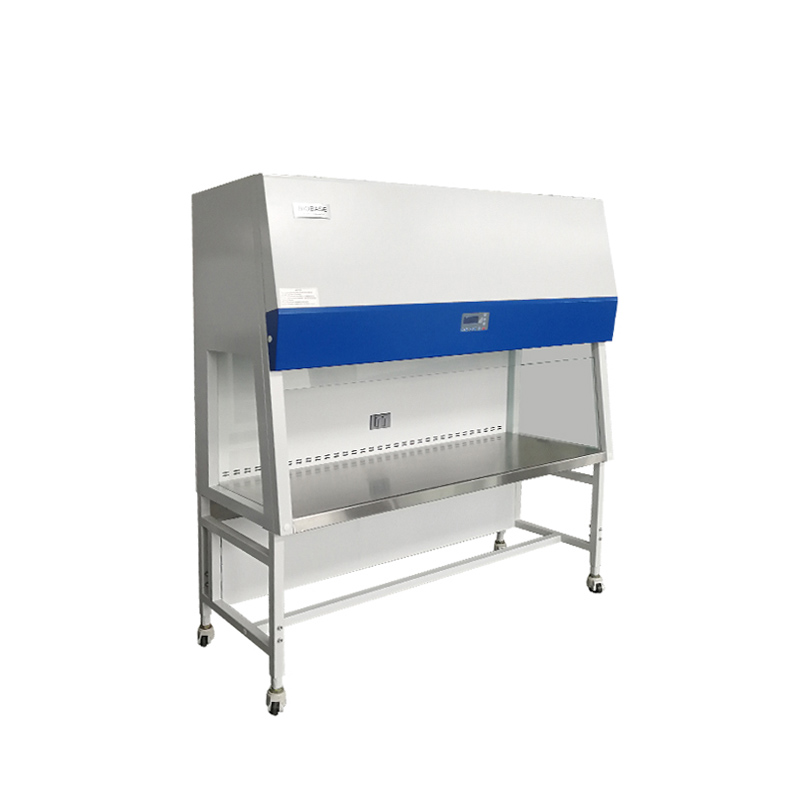

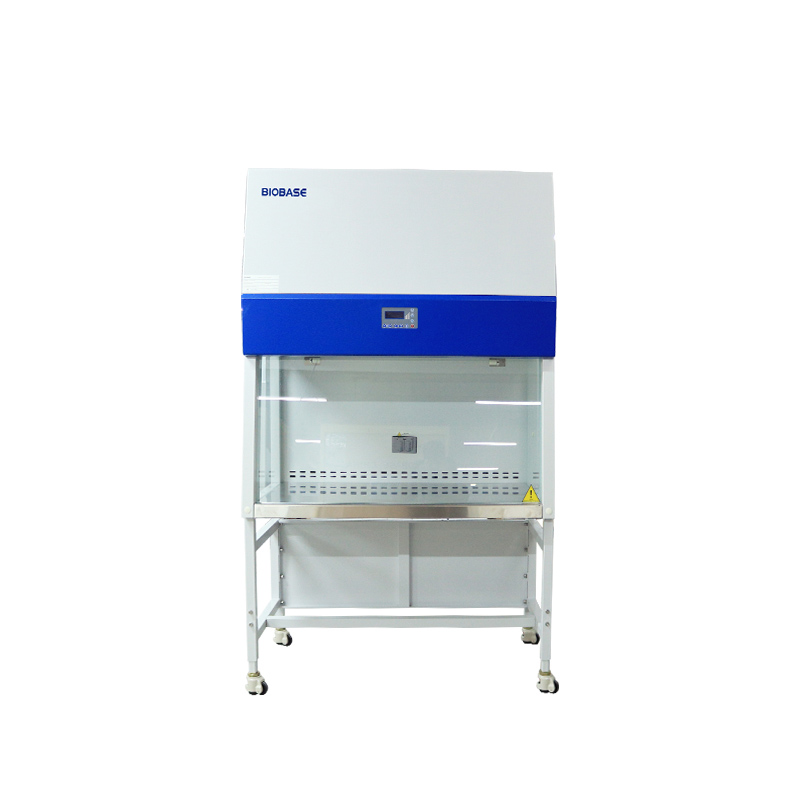

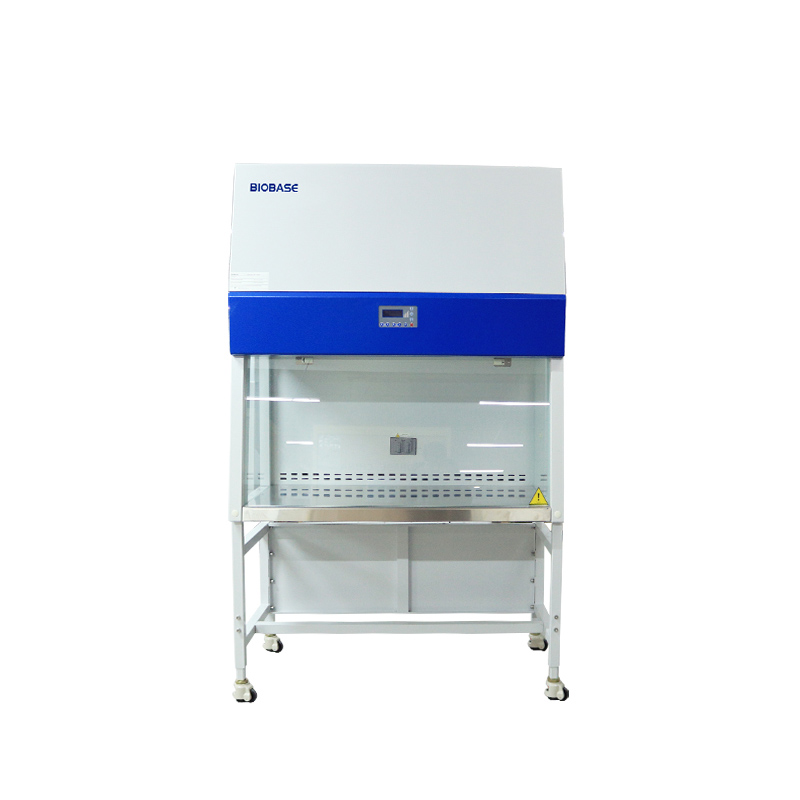

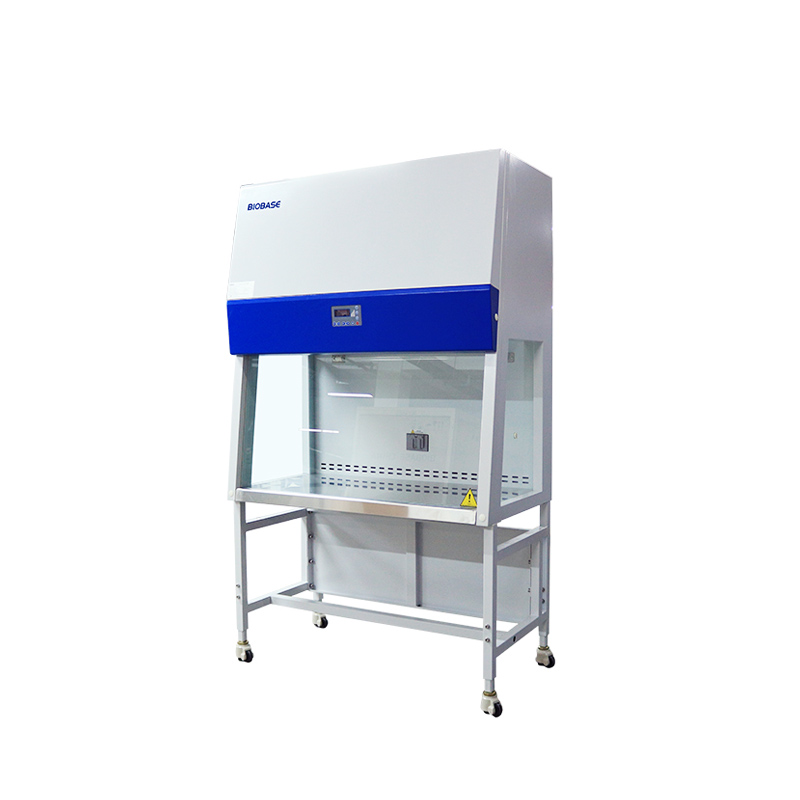

ETL Certified Vertical Laminar Flow Cabinet

Features:

1. ETL certified, satisfy north american market.

2. With memory function in case of power-failure.

3. Audio and visual alarm(Abnormal airflow velocity).

4. Interlock function: UV lamp and blower, LED lamp.

Technical Parameters:

Model	BBS-V800	BBS-V1100	BBS-V1300	BBS-V1500	BBS-V1800
External Size(W*D*H)	800*700*(2090~2340)mm	1100*700*(2090~2340)mm	1300*700*(2090~2340)mm	1500*700*(2090~2340)mm	1800*700*(2090~2340)mm
Internal Size(W*D*H)	700*575*625mm	1000*575*625mm	1200*575*625mm	1400*575*625mm	1700*575*625mm
Work Surface Height	760~1010mm
Max Opening	480mm
Display	LCD display
Airflow Velocity	80~99fpm
Material	Working Area: 304 stainless Steel
	Main Body: Cold-rolled steel with anti-bacteria powder coating
	Front Window: Motorized, 5mm toughened glass, anti-UV
Pre-Filter	Polyester fiber
HEPA Filter	One, 99.995% efficiency at 0.3μm
Noise	≤68dB(A)
Illumination	≥300lx
Waterproof Sockets	One socket(Double type), America standard, Max. Power: 500W
Power Supply	103.5~126.5V, 60Hz,10A
Consumption	900W	1110W	1110W	1110W	1250W
UV Lamp	20W*1	30W*1	30W*1	40W*1	40W*1
LED Lamp	10W*1	14W*1	14W*1	18W*1	22W*1
Standard Accessory	Manually height adjustable base stand, LED lamp, UV lamp, Wind speed sensor, Waterproof socket
Package Size （W*D*H）	945*990*1610mm	1245*990*1610mn	1445*990*1610mm	1645*990*1610mm	1945*990*1610mm
Gross Weight	190kg	230kg	265kg	280kg	320kg



ETL Certified Vertical Laminar Flow Cabinet — professional solution in the Laminar Flow Cabinet category

ETL Certified Vertical Laminar Flow Cabinet is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why ETL Certified Vertical Laminar Flow Cabinet

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: ETL Certified Vertical Laminar Flow Cabinet fits easily into existing process lines and IT infrastructure.

Areas of application Laminar Flow Cabinet

Laminar Flow Cabinet solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing ETL Certified Vertical Laminar Flow Cabinet allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with ETL Certified Vertical Laminar Flow Cabinet you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
