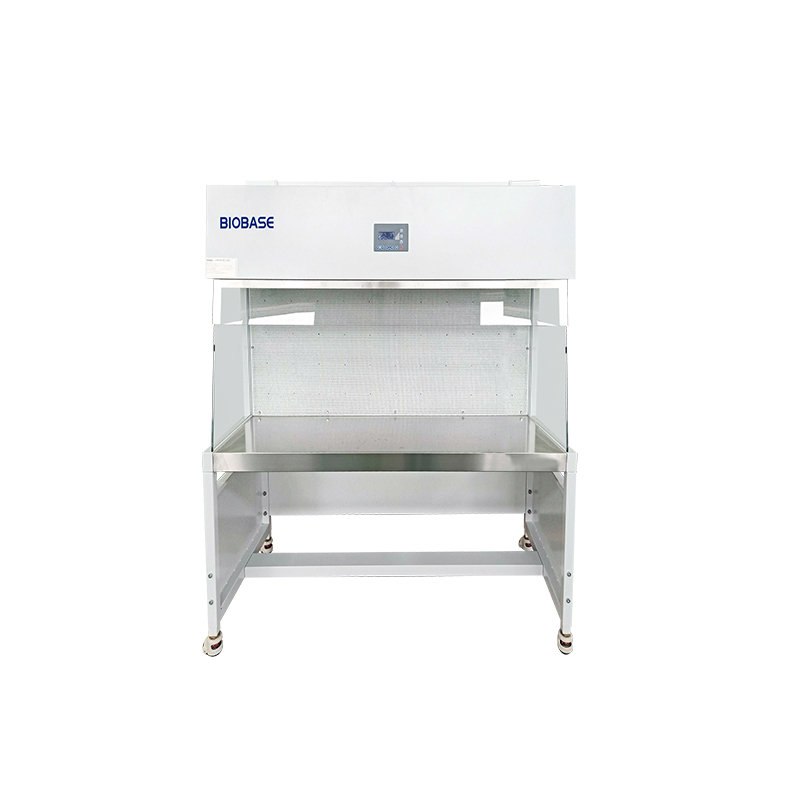

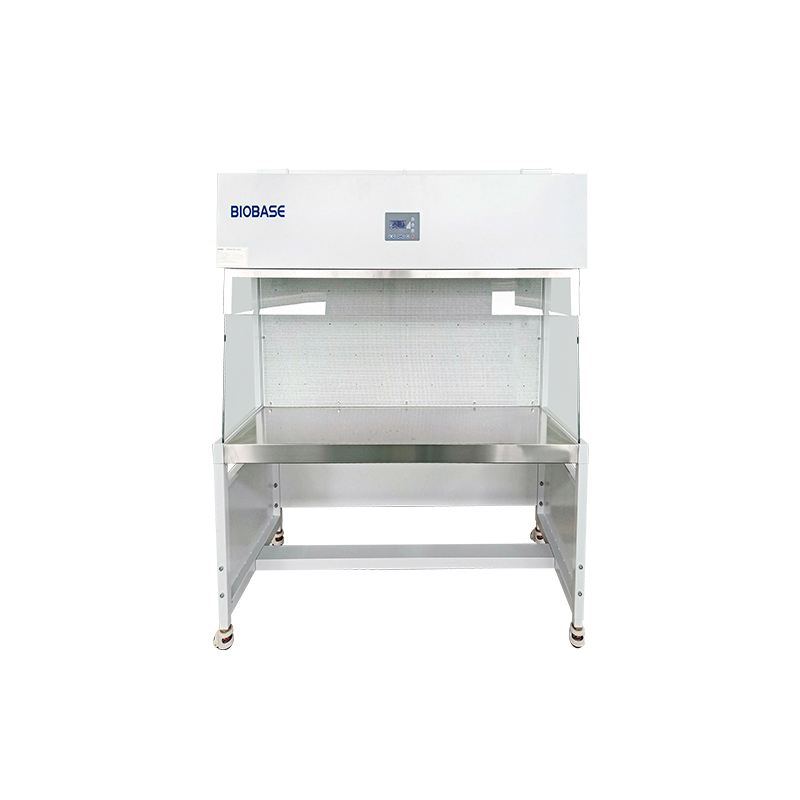

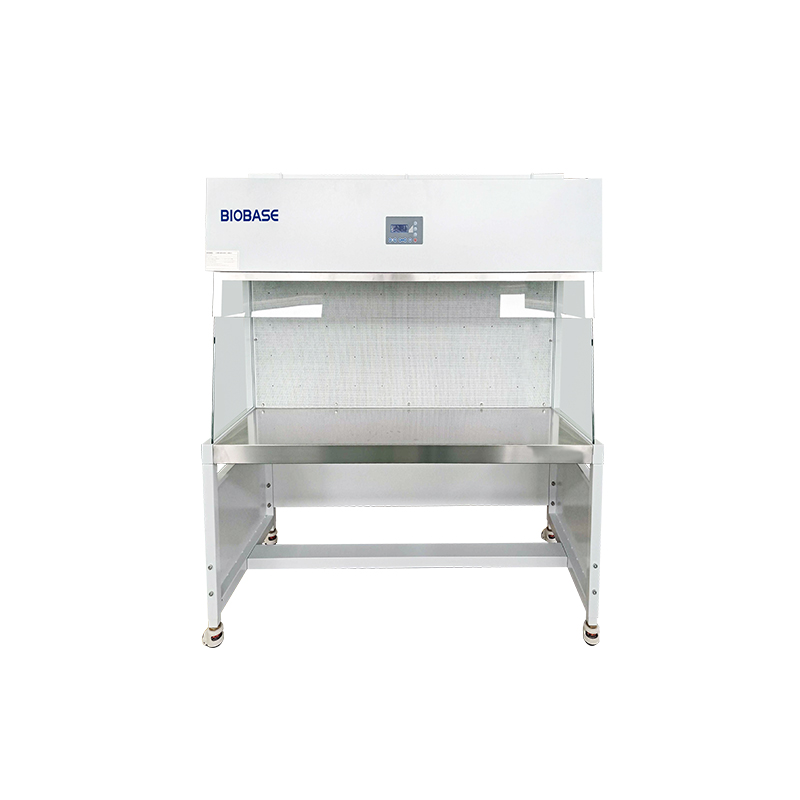

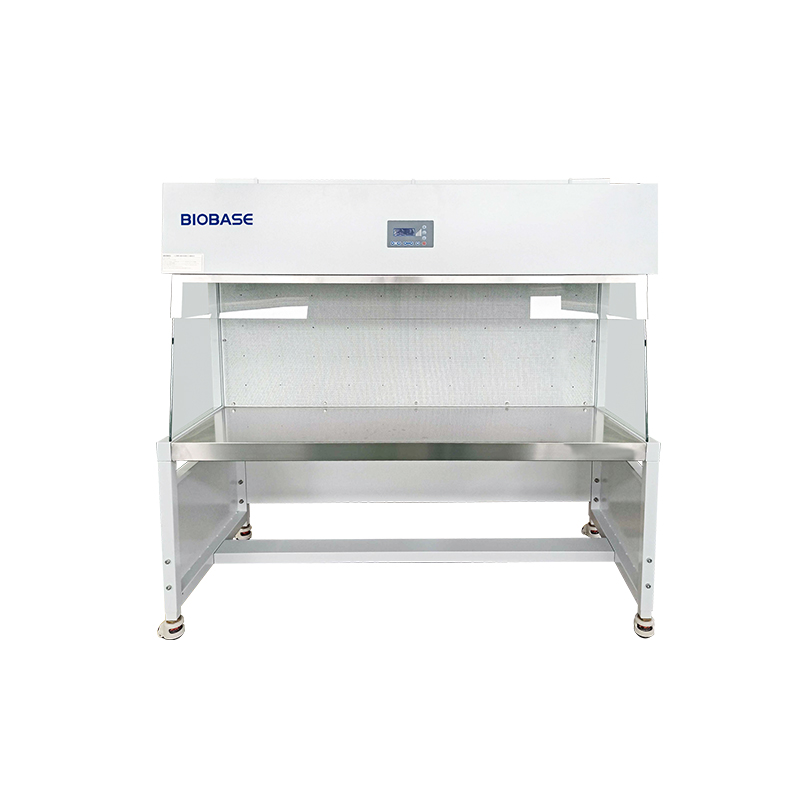

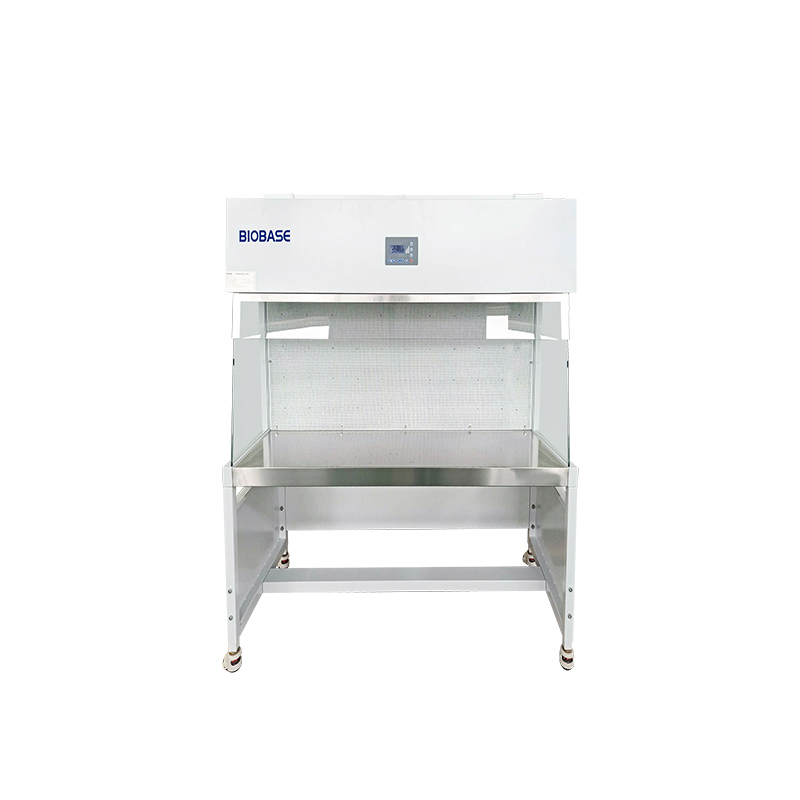

ETL Certified Horizontal Laminar Flow Cabinet

Features:
1. ETL certification, satisfy North American market.

2. With memory function in case of power-failure.

3. Audio and visual alarm(Abnormal airflow velocity).



Technical Parameters:

Model	BBS-H800	BBS-H1100	BBS-H1300	BBS-H1500	BBS-H1800
External Size(W*D*H)	800*810*(1720~1980)mm	1100*810*(1720~1980)mm	1300*810*(1720~1980)mm	1500*810*(1720~1980)mm	1800*810*(1720~1980)mm
Internal Size(W*D*H)	700*500*600mm	1000*500*600mm	1200*500*600mm	1400*500*600mm	1700*500*600mm
Work Surface Height	750~1010mm
Max Opening	440mm
Display	LCD display
Airflow Velocity	80~99fpm
Material	Working area: 304 stainless steel Main body: Cold-rolled steel with anti-bacteria powder coating Front window: 5mm toughened glass, anti-UV
Pre-Filter	Polyester fiber
HEPA Filter	One, 99.995% efficiency at 0.3μm
Noise	≤68dB(A)
Illumination	≥300lx
Waterproof Sockets	One socket(Double type), America standard, Max. Power: 500W
Power Supply	103.5~126.5V, 60Hz, 10A
Consumption	750W	950W	950W	950W	1150W
LED Lamp	10W*1	14W*1	14W*1	18W*1	22W*1
Standard Accessories	Manually height adjustable base stand, LED lamp, Wind speed sensor, Waterproof socket, Stainless steel. V. Bar with 10 hooks
Optional Accessories	UV lamp
Package Size(W*D*H)	940*1090*1250mm	1240*1090*1250mm	1440*1090*1250mm	1640*1090*1250mm	1940*1090*1250mm
Gross Weight	150kg	190kg	225kg	265kg	300kg



ETL Certified Horizontal Laminar Flow Cabinet — professional solution in the Laminar Flow Cabinet category

ETL Certified Horizontal Laminar Flow Cabinet is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why ETL Certified Horizontal Laminar Flow Cabinet

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: ETL Certified Horizontal Laminar Flow Cabinet fits easily into existing process lines and IT infrastructure.

Areas of application Laminar Flow Cabinet

Laminar Flow Cabinet solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing ETL Certified Horizontal Laminar Flow Cabinet allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with ETL Certified Horizontal Laminar Flow Cabinet you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
