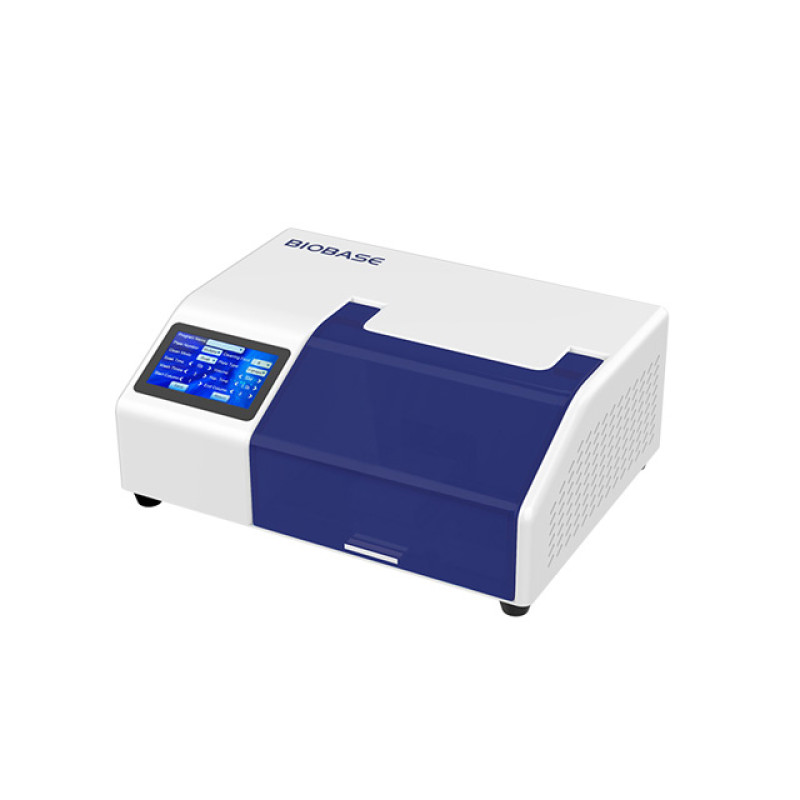

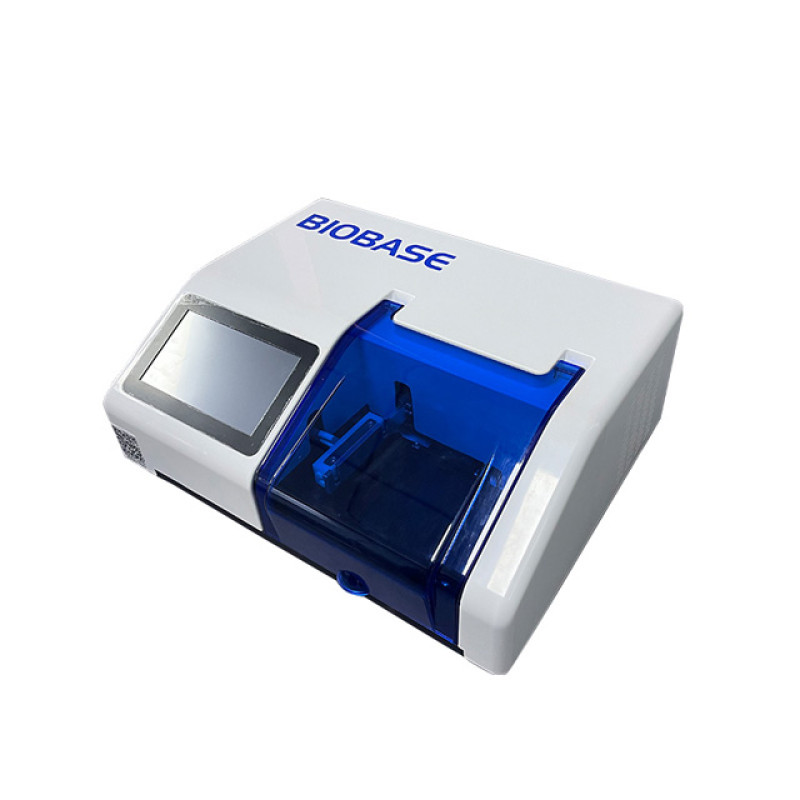

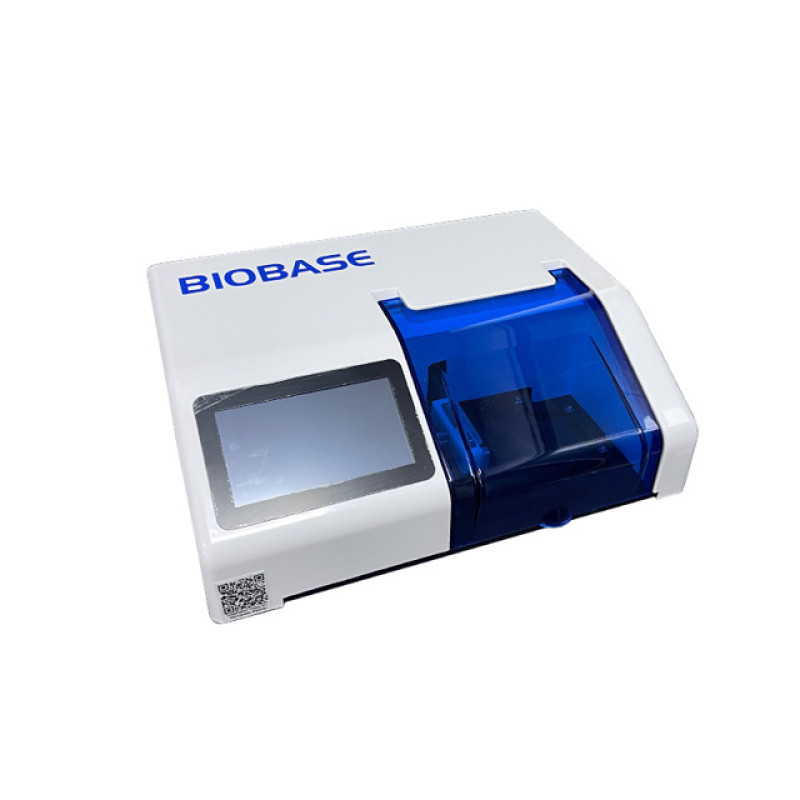

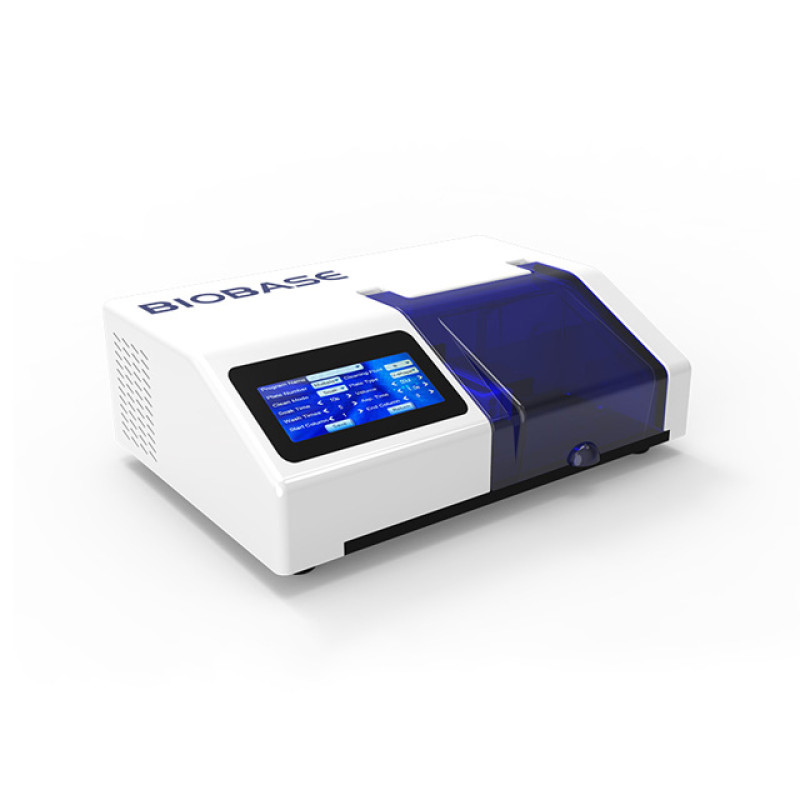

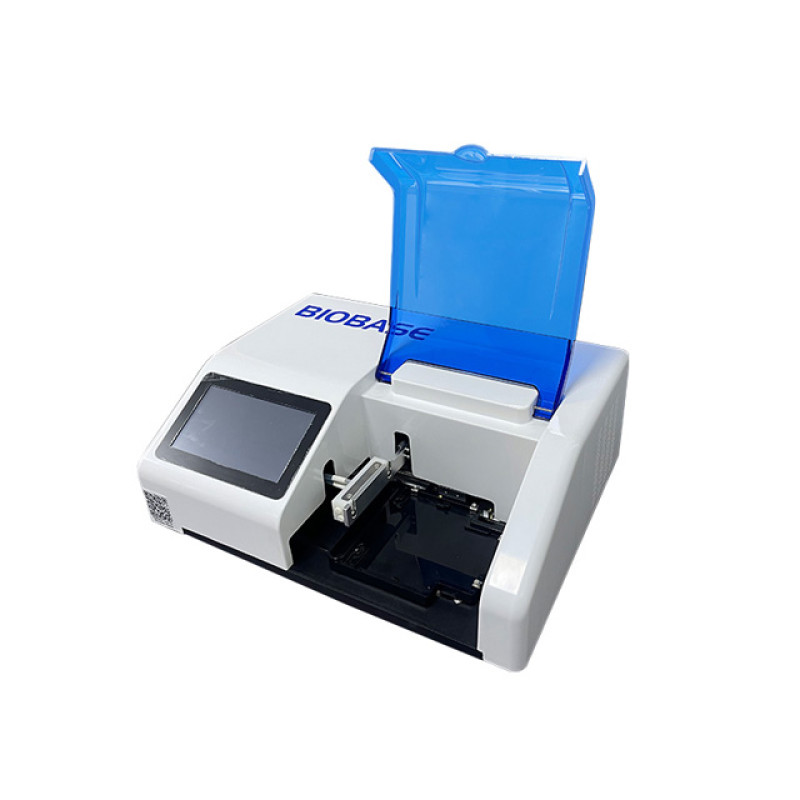

Elisa Microplate Washer BK-9622 BK-9613

Features:

1. Microcmputer control, automatically complete the plate washing operation.

2. The liquid level sensing function automatically detects the liquid level, and automatically alarms when the cleaning liquid is insufficient and the waste liquid is overflowing.

3. The user-friendly operating system allows users to customize the plate type, set the number of washes, the amount of wash solution, the way to wash the plate, the suction point, the soaking and shaking time and other parameters.

4. The wash head is self-balancing, has two-point aspiration, and performs bottom flushing.

5. 2 kinds of Automatic washing, soaking and Shaking, to reduce the interference adsorption during the reaction and time is adjustable.

Technical Parameters:

Model	BK-9622	BK-9613
Cleaning Head	8 channels and 12 channels	96 pins, single row controllable
Microplate Types	Four kinds, flat bottom, U bottom, V bottom, round bottom
Average Residue	<1μl(per hole)	<0.7μl(per hole)
Liquid Suction Time	0.1~999.9 seconds adjustable, with an interval of 0.1 seconds
Line Flush Time	1~999 seconds, adjustable
Washing Programs	Up to 200 programs
Display	7-inch touch display
Standard Bottles	5pcs: 1.5L,1pc; 4L, 4pcs
Liquid Injection Channels	3(2 types of lotion and 1 type of distilled water)
Cleaning Needle Position	6 types(horizontal, left, middle, right, bottom, hole spacing)
Consumption	80W	350W
Power Supply	AC220V±10%, 50/60Hz; 110±10%, 60Hz
Packing Size(W*D*H)	720*480*400mm	740*675*562mm
Gross Weight	20kg	42kg

Remark: Suitable microplate for BK-9622: maximum 131*89mm, minimum 120*83mm.

Elisa Microplate Washer BK-9622 BK-9613 — professional solution in the ELISA Equipment category

Elisa Microplate Washer BK-9622 BK-9613 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Elisa Microplate Washer BK-9622 BK-9613

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Elisa Microplate Washer BK-9622 BK-9613 fits easily into existing process lines and IT infrastructure.

Areas of application ELISA Equipment

ELISA Equipment solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Elisa Microplate Washer BK-9622 BK-9613 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Elisa Microplate Washer BK-9622 BK-9613 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
