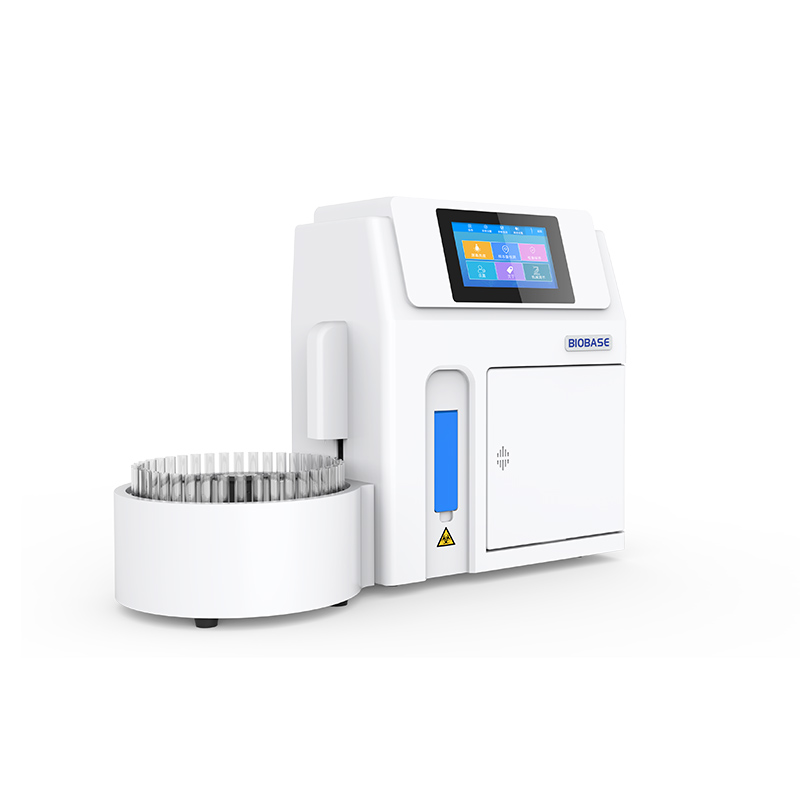

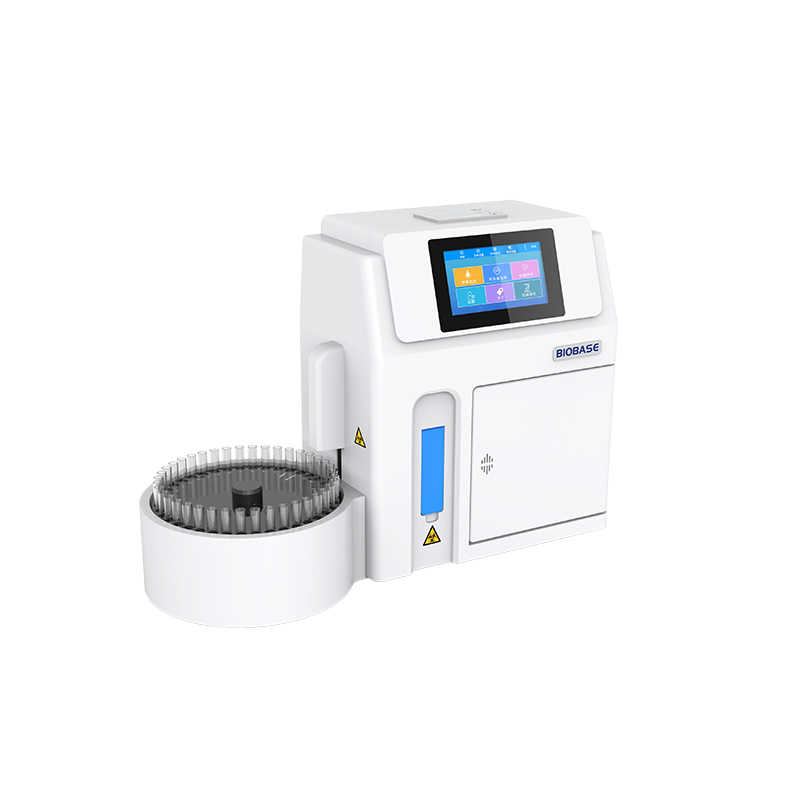

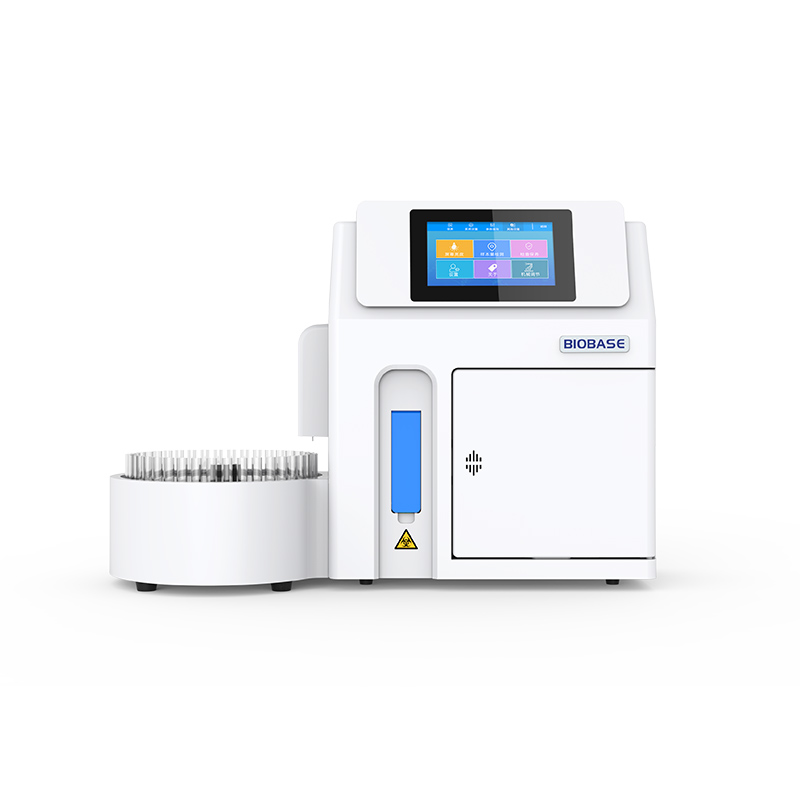

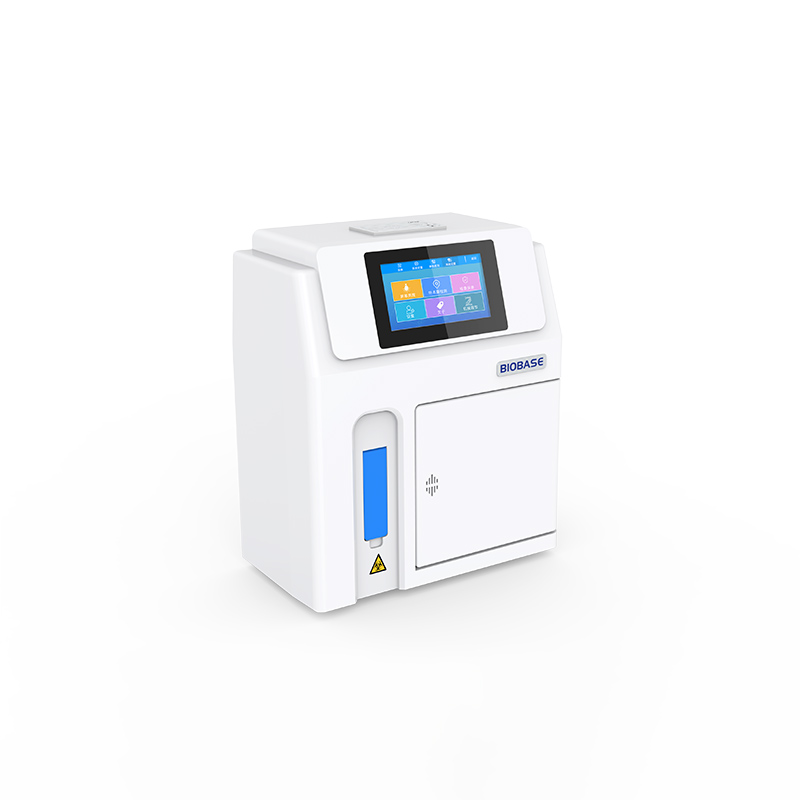

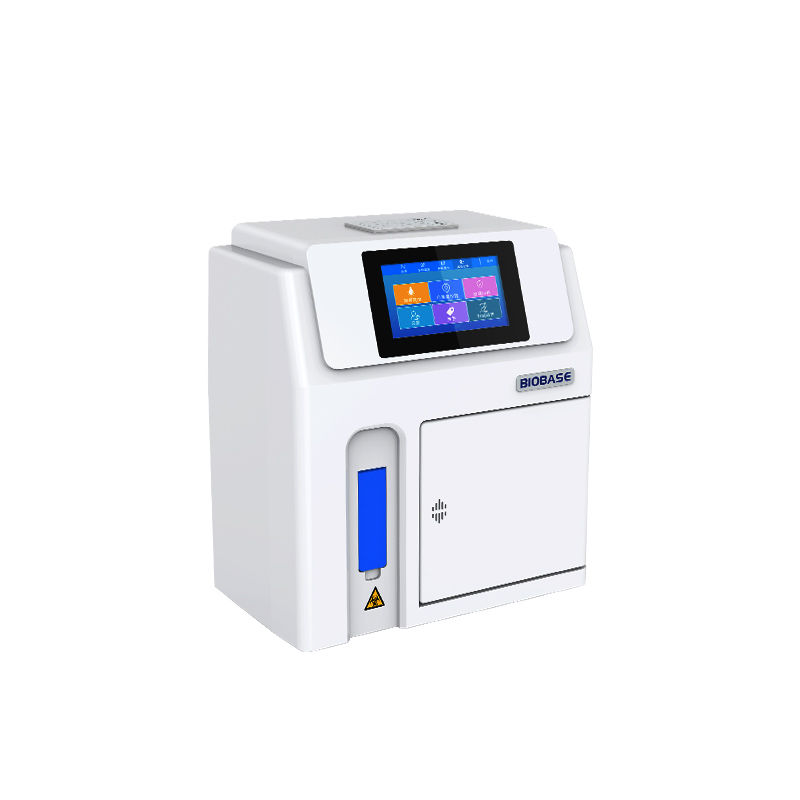

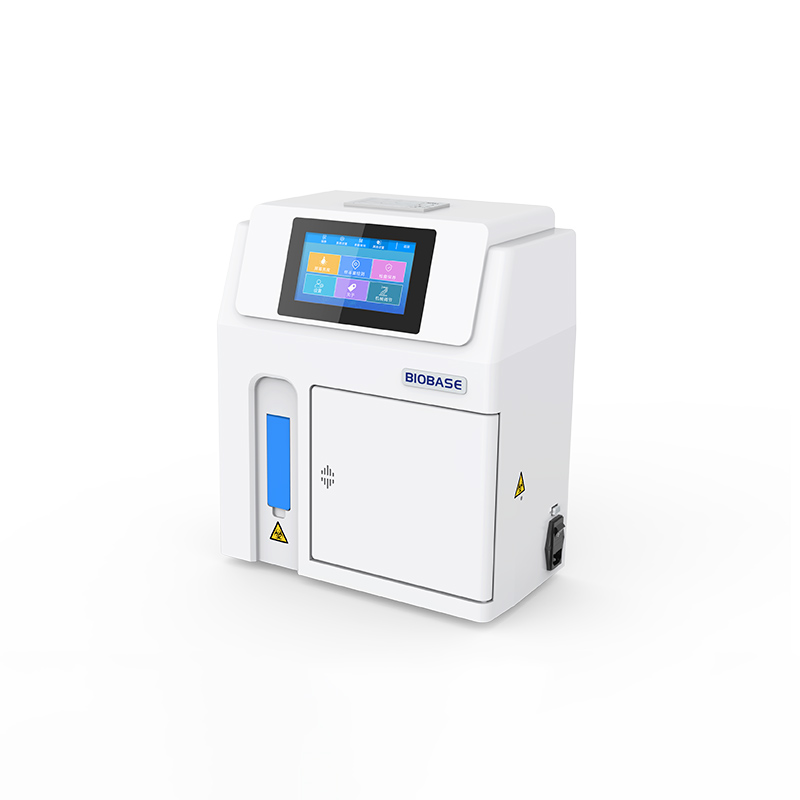

Electrolyte Analyzer BKE Series

Features:

1. The software supports automatic potential tracking correction to ensure stable performance.

2. Automatic monitoring and filtering of tiny air bubbles to ensure measurement accuracy.

3. Wave flushing and pipeline flushing can avoid blockage and cross-contamination.

4. Power-off protection, can protect data storage, the result can be stored up to 50,000.

5. Low consumption, effectively reducing the cost of consumables.

6. 7-inch high-definition touch screen, comprehensive content display.

7. With the function of automatic fault alarm and elimination, improve work efficiency.

Technical Parameters:

Model	BKE-A, BKE-B, BKE-C, BKE-D	BKE-E, BKE-F, BKE-L
Sample	Serum, plasma, whole blood, cerebrospinal fluid and dilute urine
Measuring Speed	≤25s
Analysis Method	Ion selective electrode(ISE)
Sample Volume	60~150μl	200μl
Sample Position	30 sample positions, 5 emergency positions(Only for BKE-B/D/F/L)
Injection mode	Manual or automatic injection can be selected(Only for BKE-B/D/F/L), BKE-A/C/E is manually injection
Storage	Up to 50,000 test results
Printer	Build-in thermal printer
Interface	RS232 port for LIS
Display	7-inch high-definition touch screen
Language	Chinese and English, other languages can be customized
Calibration	Automatic and Manual calibration
Other Function	Sample volume detection
Power Supply	AC100~240V, 50/60Hz, 70VA
Temperature	+10~+40℃
Relative Humidity	≤80 %
Atmospheric Pressure	86~106kPa

Model	BKE-A	BKE-B	BKE-C	BKE-D
Test Items	K+, Na+, Cl-	K+, Na+, Cl-	K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH	K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH
Sample Tray	No	Yes	No	Yes
External Size(W*D*H)(mm)	405*214*471	682*287*471	405*214*471	682*287*471
Net Weight(kg)	12.48	15.11	12.48	15.11
Package Size(W*D*H)(mm)	Instrument: 500*390*530 Reagent: 220*160*120, 220*160*120	Instrument: 500*390*720 Reagent: 220*160*120, 220*160*120	Instrument: 500*390*530 Reagent: 220*160*120, 220*160*120	Instrument: 500*390*720  Reagent: 220*160*120, 220*160*120
Gross Weight(kg)	Instrument: 16.08 Reagent: 1.7, 0.9	Instrument: 19.31 Reagent: 1.7, 0.9	Instrument: 16.08 Reagent: 1.7, 0.9	Instrument: 19.31 Reagent: 1.7, 0.9

Model	BKE-E	BKE-F	BKE-L
Test Items	K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH, TCO2, AG	K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH, TCO2, AG	K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH, TCO2, AG, Li+, Mg2+
Sample Tray	No	Yes	Yes
External Size(W*D*H)(mm)	405*214*471	682*287*471	682*287*471
Net Weight(kg)	13.13	15.76	15.76
Package Size(W*D*H)(mm)	Instrument: 500*390*530 Reagent: 280*135*210, 220*160*120	Instrument: 500*390*720 Reagent: 280*135*210, 220*160*120	Instrument: 500*390*720 Reagent: 280*135*210, 220*160*120
Gross Weight(kg)	Instrument: 16.73 Reagent: 2.2, 1.2	Instrument: 19.96 Reagent: 2.2, 1.2	Instrument: 19.96 Reagent: 2.2, 1.2

Items	Measuring Range	Resolution
K+	0.5~20.0mmol/L	0.01mmol/L
Na+	15~200mmol/L	0.01mmol/L
Cl-	15~200mmol/L	0.01mmol/L
Ca2+	0.1~6.0mmol/L	0.01mmol/L
pH	4~9	0.01
TCO2	2.0~70.0mmol/L	0.1mmol/L
Li+	0.1~6.0mmol/L	0.01mmol/ L
Mg2+	0.1~4.0mmol/L	0.01mmol/ L

Product Name	Reagent for Electrolyte Analyzer(ISE)
Component	Drift correction solution A(350ml) Slope correction solution B(350ml) Reference solution(10ml*2) Filling solution in electrode(3ml) Cleaning fluid E(100ml) Electrode activation fluid(100ml) Internal correction solution(100ml) Electrode cleaning fluid(protease): Protease: 25mg*5; Diluent: 5ml*1 Drift correction solution(CO2 standard 1): 100ml*1(only for BKE-E/F/L) Slope correction solution(CO2 standard 2): 100ml*1(only for BKE-E/F/L) CO2 acidic washing: 100ml*1(only for BKE-E/F/L)
Precision	TCO2, Mg2+ repeatability CV≤3.5%; Batch variations R≤5% iCa2+, Li+ repeatability CV≤1.5%; Batch variations R≤3% Others repeatability CV≤1.5%; Batch variations R≤2%
Accuracy	K+, Na+, Cl-, pH relative deviation≤±3.0% iCa2+, Li+ , Mg2+ relative deviation≤±5%, or≤±0.05mmol/L TCO2 relative deviation≤±5%
Linearity	r≥0.995
Package Size(L*W*H)mm	Commodity inspection reagent: 220*160*120(only for BKE-A/B/C/D), 280*135*210(only for BKE-E/F/L) Non-commodity inspection reagent: 220*160*120
Gross Weight(kg)	Commodity inspection reagent: 1.7(only for BKE-A/B/C/D), 2.2(only for BKE-E/F/L) Non-commodity inspection reagent: 0.9(only for BKE-A/B/C/D), 1.2(only for BKE-E/F/L)
