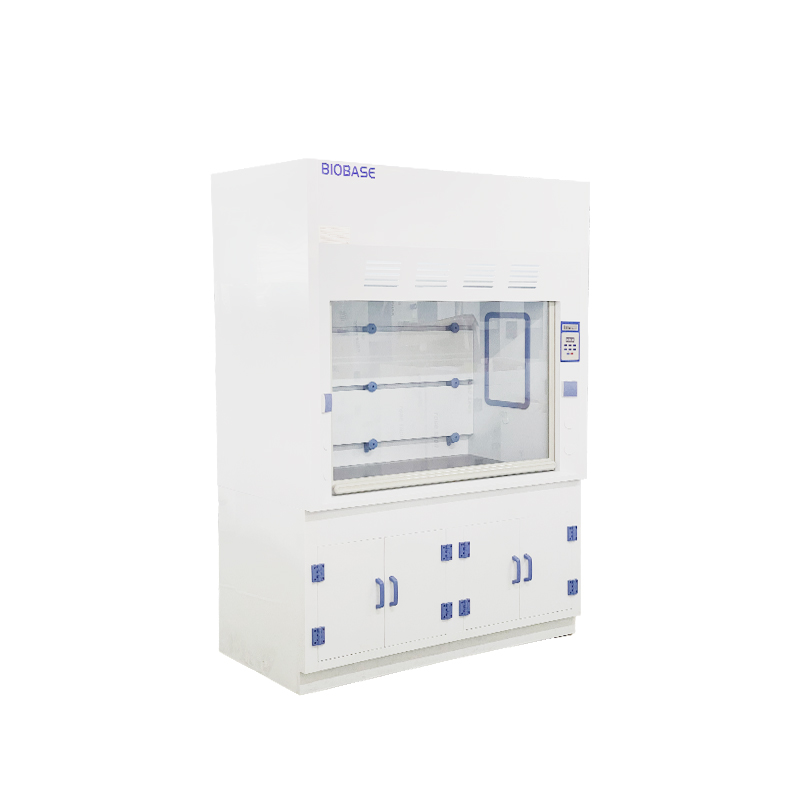

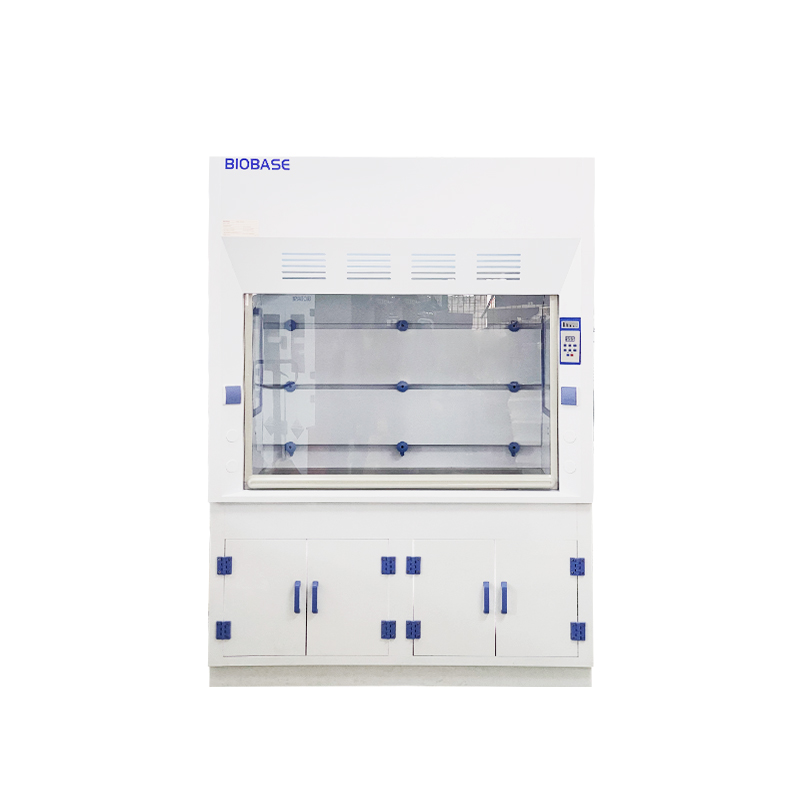

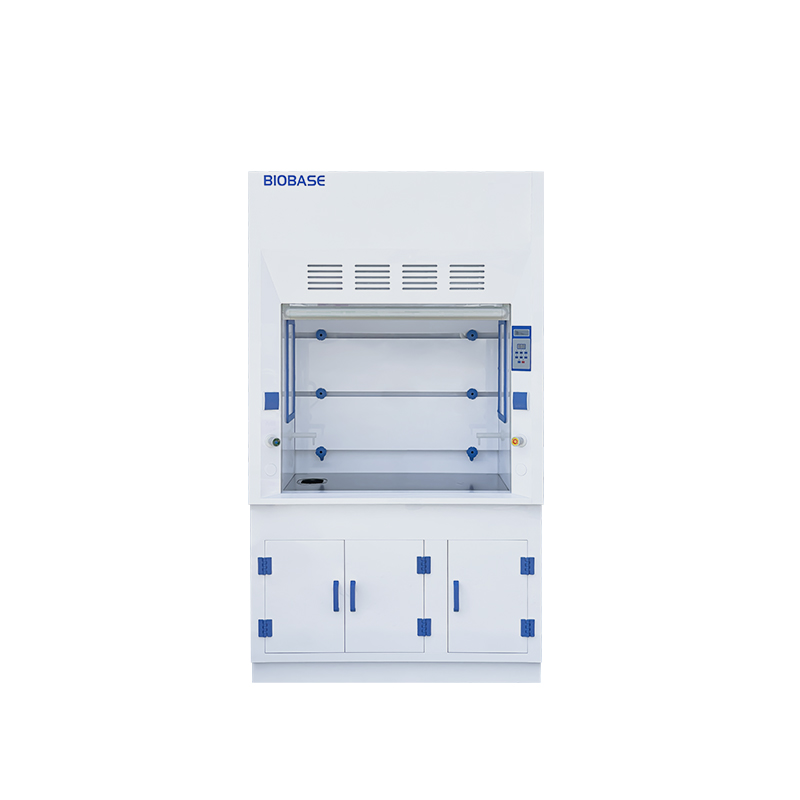

Ducted PP Fume Hood FH(P)

Features:

1. It is safer to use anti-corrosive water tap.

2. Microprocessor control system, LED display.

3. With memory function in case of power-failure.

4. Made of porcelain white PP, resistant to acid, alkali and anti-corrosion.

5. Front window which is made of 5mm thick transparent toughened glass maximize light and visibility inside the fume hood, providing a bright and open working environment.



Technical Parameters:

Model		FH1000(P)	FH1200(P)	FH1500(P)	FH1800(P)
External Size(W*D*H)		1047*800*2450mm	1247*800*2450mm	1547*800*2450mm	1847*800*2450mm
Internal Size(W*D*H)		787*560*700mm	987*560*700mm	1287*560*700mm	1587*560*700mm
Work Surface Height		820mm
Max Opening		740mm
Air Velocity		0.3~0.8m/s
Noise		≤68dB
Exhaust Duct		4.3 meters, φ250mm
LED Lamp		9W*2	12W*2	15W*2	20W*2
Blower		Built-in PP centrifugal blower(2 blowers for FH1800(P) only), Speed adjustable
Front Window		Resistant to acid and alkali, manual, 5mm toughened glass, height adjustable
Power Supply		AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Consumption		400W	400W	500W	700W
Material	Main Body	Made of porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion.
	Work Table	Chemical resistant phenolic resin
Standard Accessory		LED light Work table: chemical resistant phenolic resin 4.3 meters PVC duct (2 pcs of 4.3 meters PVC dust for FH1800(P) only), Diameter: 250mm Pipe strap*2(4 pcs for FH1800(P) only) RVV power cord(3*1.0mm²*3000mm) Base cabinet Waterproof socket*2 Tail insert Water tap(PP) Gas tap(PP) Water sink PP centrifugal blower*1(2 for FH1800(P) only)
Optional Accessory		PP work table, epoxy resin board or ceramic board Active carbon filter Outer PP centrifugal blower*1(only need to select when the duct more than 4m, 2 for FH1800(P) only) Splicable base cabinet(only not for FH1800(P))
Gross Weight	Main Body	137kg	155kg	180kg	206kg
	Base Cabinet	89kg or 80kg(Splicable)	99kg or 90kg(Splicable)	114kg or 102kg(Splicable)	140kg
Package Size(W*D*H)	Main Body	1188*938*1612mm	1388*938*1612mm	1688*938*1612mm	1988*938*1612mm
	Base Cabinet	1188*888*1000mm or 1200*1000*450mm(Splicable)	1388*888*1000mm or 1400*1000*450mm(Splicable)	1688*888*1000mm or 1700*1000*450mm(Splicable)	1988*888*1000mm





Ducted PP Fume Hood FH(P) — professional solution in the Fume Hood category

Ducted PP Fume Hood FH(P) is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Ducted PP Fume Hood FH(P)

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Ducted PP Fume Hood FH(P) fits easily into existing process lines and IT infrastructure.

Areas of application Fume Hood

Fume Hood solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Ducted PP Fume Hood FH(P) allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Ducted PP Fume Hood FH(P) you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
