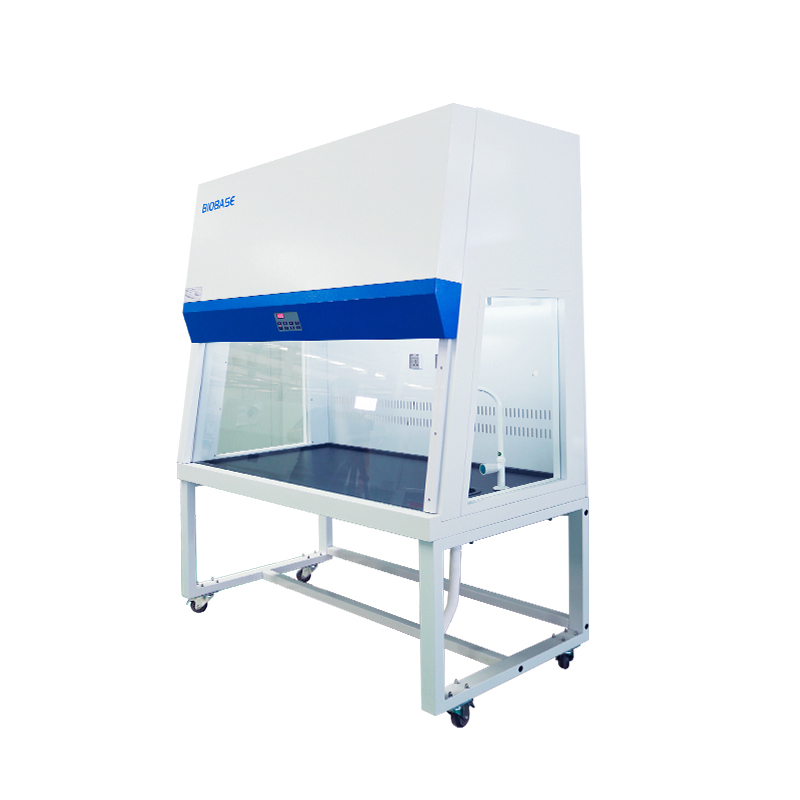

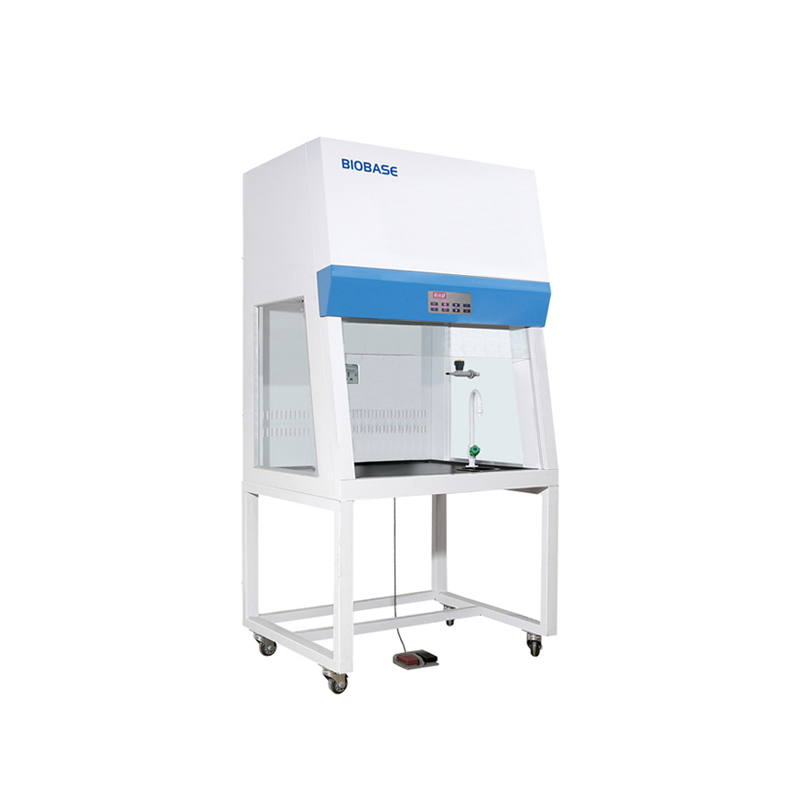

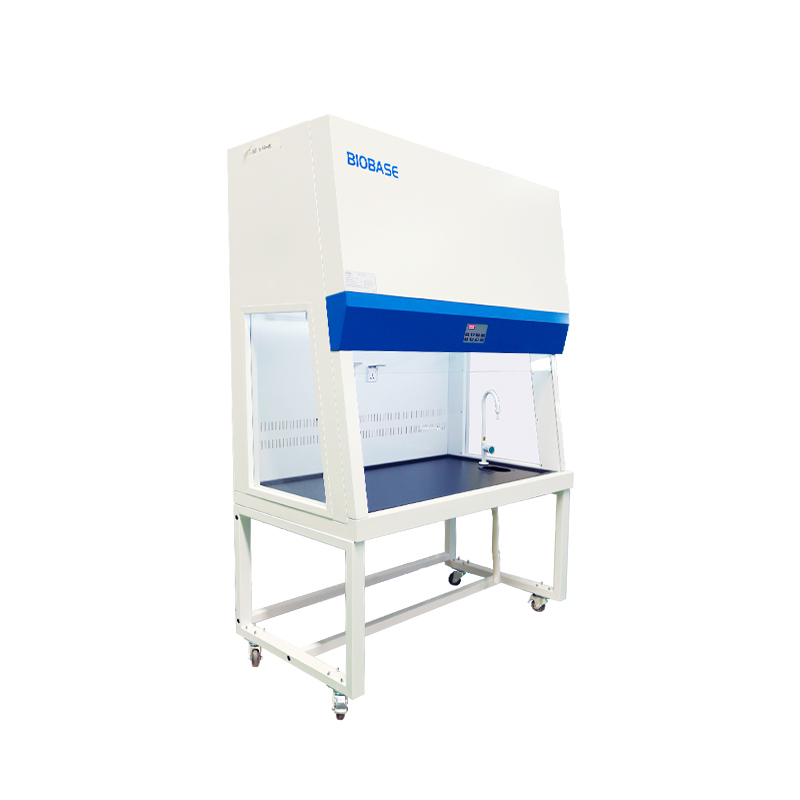

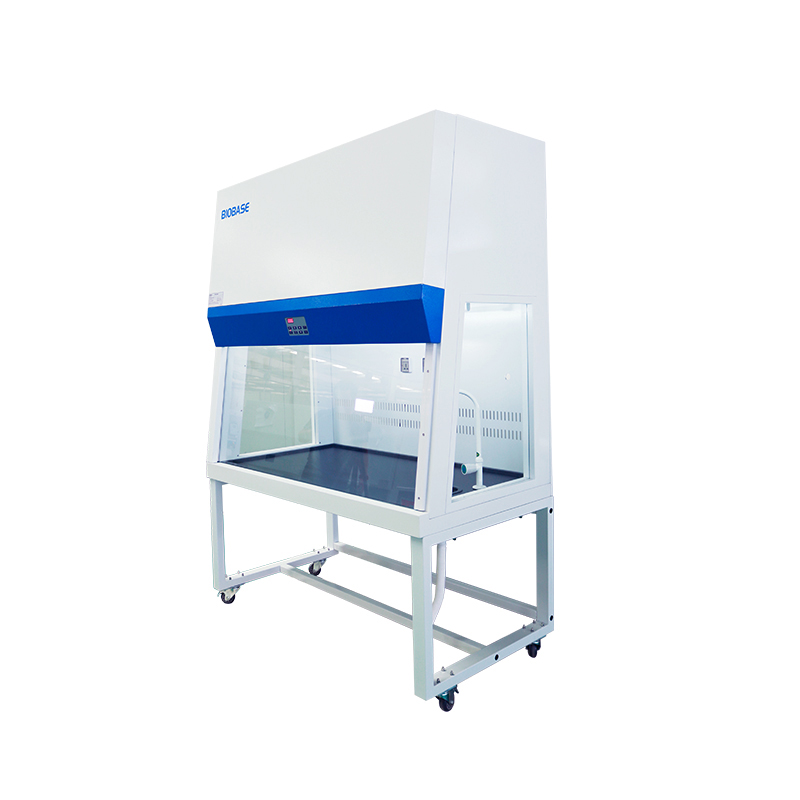

Ducted Fume Hood FH(X) series

Features:
1. UV lamp for sterilization.
2. Motorized front glass window.
3. Resistant to weak acid and alkali.
4. Adjustable air speed: 9 levels.
5. Alarm when filter working time 3500 hours.
6. With memory function in case of power-failure.
7. Back side air compensation, to avoid turbulence in work area.
8. 8°slope front ergonomics design, fatigue-free working posture.

9. Microprocessor control system, LED display shows filter working time.

10. Transparent side glass windows maximize light and visibility inside the cabinet, providing a bright and open working environment.

Technical Parameters:

Model	FH1000(X)	FH1200(X)	FH1500(X)	FH1800(X)
External Size(W*D*H)	1000*840*2150mm	1200*840*2150mm	1500*840*2150mm	1800*840*2150mm
Internal Size(W*D*H)	880*730*745mm	1080*730*745mm	1380*730*745mm	1680*730*745mm
Max Opening	520mm
Work Surface Height	750mm
Blower	Built-in centrifugal blowers, Speed adjustable with 9 levels
Air Velocity	0.3~0.8m/s
System Exhaust Volume	630m³/h	780m³/h	990m³/h	1210m³/h
Noise	≤68dB
LED Lamp	8W*1	12W*1	16W*1	16W*1
UV Lamp	20W		30W
	Emission of 253.7 nanometers for most efficient decontamination
Front Window	Motorized, 5mm toughened glass, anti-UV
	Exterior Body: Cold-rolled steel with anti-bacteria powder coating
Material	Work Table: Chemical resistant phenolic resin
Waterproof Socket	1pc	2pcs	2pcs	2pcs
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Consumption	400W	400W	500W	500W
Standard Accessory	Water tap, Gas tap, Water sink, Base stand, UV lamp*2, LED lamp, Socket, 5 meters exhaust duct, Active carbon filter, Foot switch
Optional Accessory	HEPA filter
Gross Weight	230kg	253kg	290kg	340kg
Package Size(W*D*H)	1150*1120*1680mm	1350*1120*1680mm	1650*1120*1680mm	1950*1120*1680mm



Ducted Fume Hood FH(X) series — professional solution in the Fume Hood category

Ducted Fume Hood FH(X) series is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Ducted Fume Hood FH(X) series

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Ducted Fume Hood FH(X) series fits easily into existing process lines and IT infrastructure.

Areas of application Fume Hood

Fume Hood solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Ducted Fume Hood FH(X) series allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Ducted Fume Hood FH(X) series you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
