Features:
1. The cabinet is designed with a vertical surface, the operation perspective is wide and more humanized.
2. Made of high quality cold rolled steel plate material, surface electrostatic spraying, with good finish.
3. The platform panel of the operation area of the fume hood is made of solid physical and chemical plate, which is resistant to acid and alkali corrosion and can be disassembled for easy cleaning(integral type).
4. The front window adopts 5mm thick tempered glass to better protect the safety of personnel and experiments.
5. Counterweight manual front window, height adjustable.

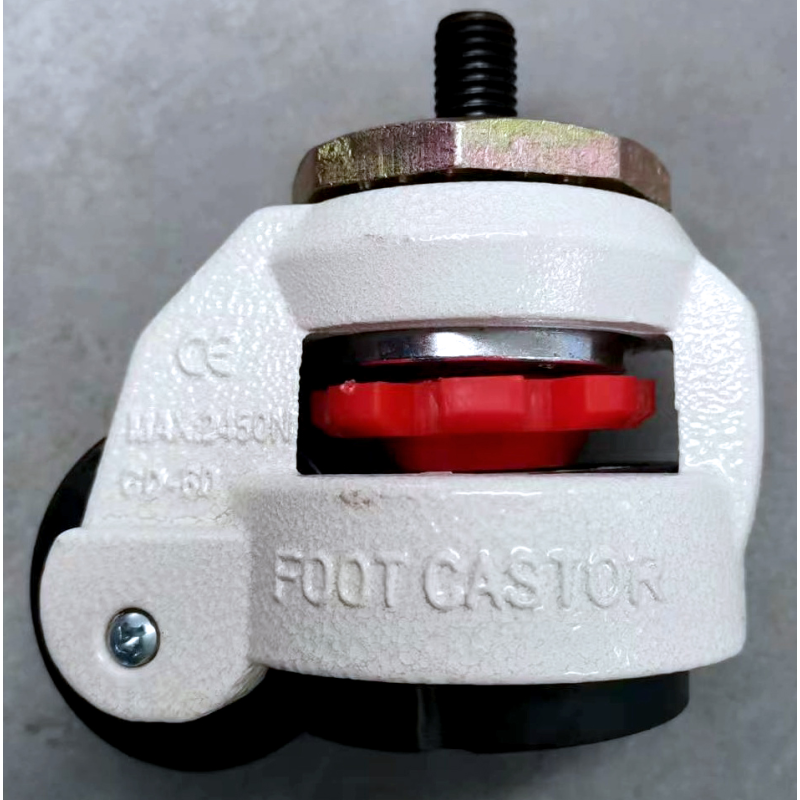

6. The base bracket and fume castor integrated design, safely moved through the casters, also well fixed and levelled.
7. Equipped with PP axial flow fan, large air volume, low noise, long service life, easy installation.
8. The fan can be stepless speed regulation, the function button is push-button switch, stable performance.
9. The side of the cabinet body is equipped with lifting handles to facilitate carrying.
Technical Parameters:
Model | BK-FH1100 | BK-FH1200 | BK-FH1300 | BK-FH1500 | BK-FH1800 |
Number of Users | Single | 1~2 | 1~3 |
Rated Power | 125W(Not including socket load power, load power cannot exceed 500W) |
Power Supply | 220V±10%, 50Hz; 110±10%V, 60Hz(Optional) |
Exhaust Volume | 1850m³/h |
Air Velocity | 0.3m/s~0.8m/s |
Noise | ≤65dB(A) |
LED Lamp | 12W | 16W |
Max Opening | 500mm(Integral Type) |
Tabletop Height | 810mm(Integral Type) |

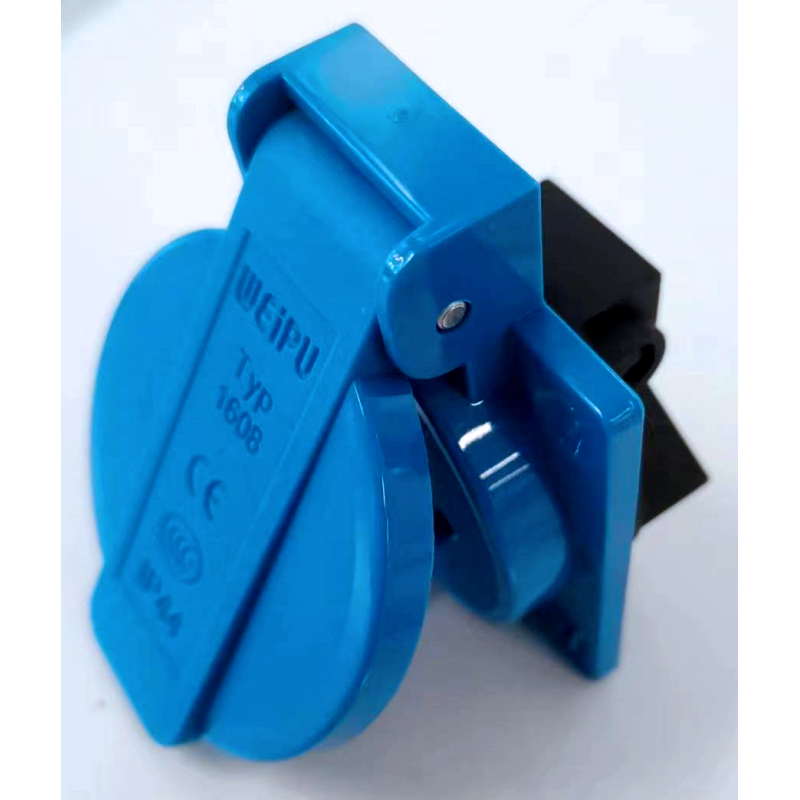

Standard Accessory | LED lamp, National standard three core splash proof socket |
Net Weight | Desktop Type | 85kg | 89kg | 93kg | 102kg | 114kg |
Integral Type | 126kg | 132kg | 138kg | 151kg | 170kg |
External Size(W*D*H) | Desktop Type | 1100*800*1260mm | 1200*800*1260mm | 1300*800*1260mm | 1500*800*1260mm | 1800*800*1260mm |
Integral Type | 1100*800*2060mm
| 1200*800*2060mm | 1300*800*2060mm | 1500*800*2060mm | 1800*800*2060mm |
Internal Size(W*D*H) | 980*660*847mm | 1080*660*847mm | 1180*660*847mm | 1380*660*847mm | 1680*660*847mm |
Package Size(W×D×H | Desktop Type | 1240*955*1420mm | 1340*955*1420mm | 1440*955*1420mm | 1660*975*1485mm | 1960*975*1485mm |
Integral Type | 1240*1110*1420mm | 1340*1110*1420mm | 1440*1110*1420mm | 1660*1130*1485mm | 1960*1130*1485mm |
Gross Weight | Desktop Type | 110kg | 116kg | 123kg | 182kg | 204kg |
Integral Type | 153kg | 161kg | 170kg | 234kg | 263kg |

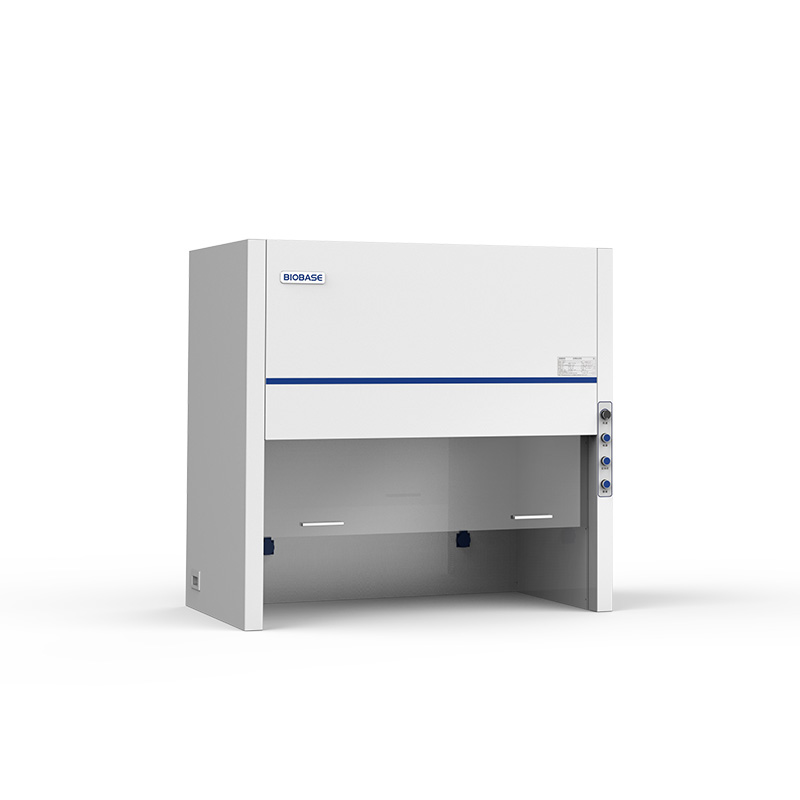

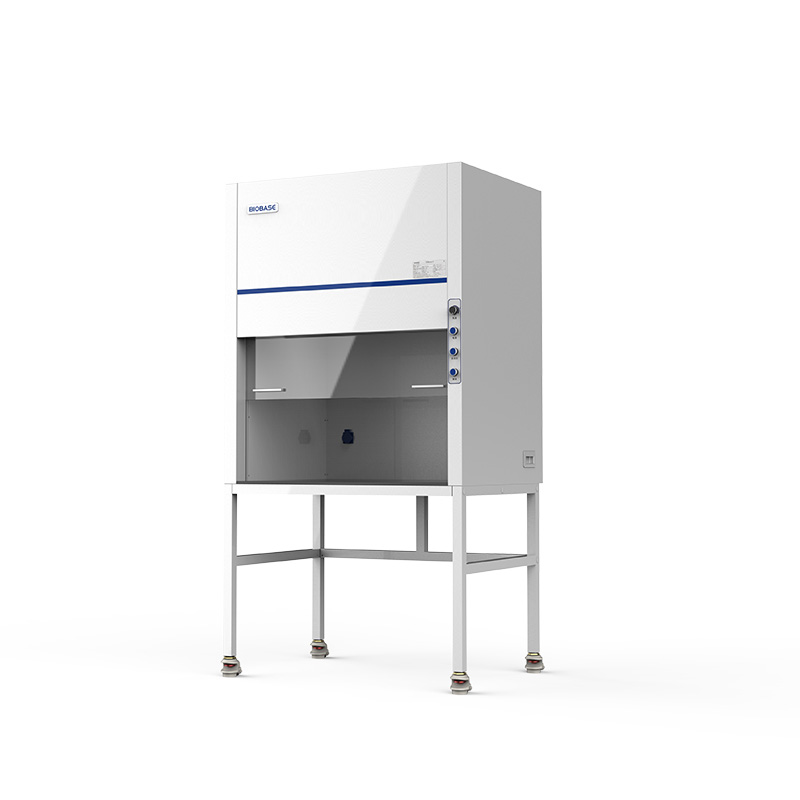

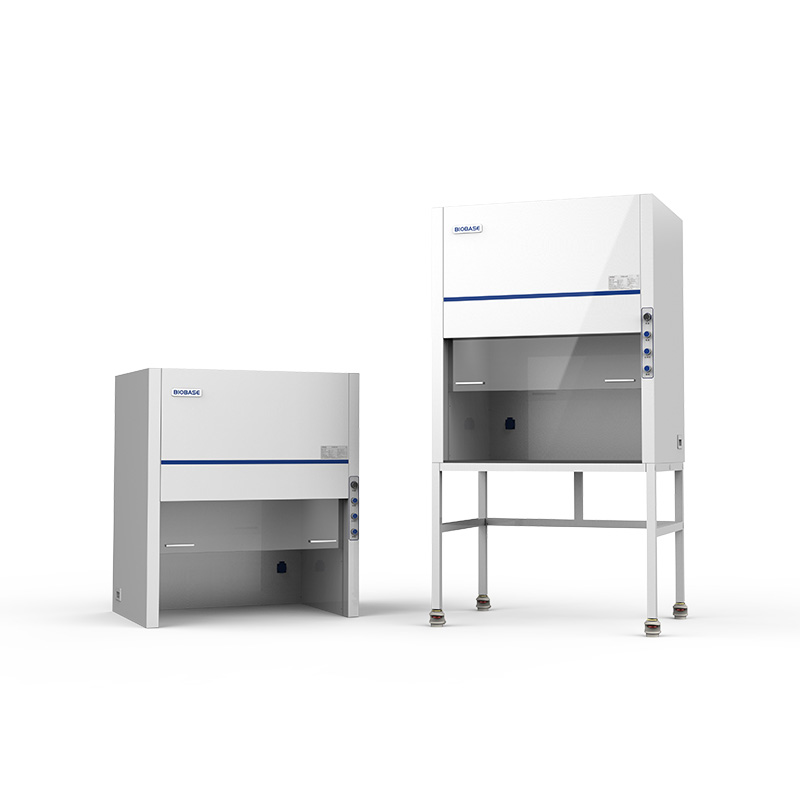

Ducted Fume Hood BK-FH1100 BK-FH1200 BK-FH1300 BK-FH1500 BK-FH1800 — professional solution in the Fume Hood category
Ducted Fume Hood BK-FH1100 BK-FH1200 BK-FH1300 BK-FH1500 BK-FH1800 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Ducted Fume Hood BK-FH1100 BK-FH1200 BK-FH1300 BK-FH1500 BK-FH1800
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Ducted Fume Hood BK-FH1100 BK-FH1200 BK-FH1300 BK-FH1500 BK-FH1800 fits easily into existing process lines and IT infrastructure.
Areas of application Fume Hood
Fume Hood solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Ducted Fume Hood BK-FH1100 BK-FH1200 BK-FH1300 BK-FH1500 BK-FH1800 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Ducted Fume Hood BK-FH1100 BK-FH1200 BK-FH1300 BK-FH1500 BK-FH1800 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Ducted Fume Hood BK-FH1100 BK-FH1200 BK-FH1300 BK-FH1500 BK-FH1800 to the cart or contact our manager. We will help integrate Fume Hood into existing processes without downtime and unnecessary costs.
