Features
1. Direction control, reverse direction.
2. With fast cleaning, empting function, back suction function, prevent liquid dripping.
3. LCD display.
4. The function of communicating with the upper computer or computer.
5. Distribution function includes distribution liquid quantity, distribution times, time interval and other functions.
6. Automatic storage of various user parameters.
7. Can be calibrated for flow and distribution fluid volume to improve accuracy.
8. Forced air cooling heat dissipation, to ensure the normal use of products.
Technical Parameters:
Model | DPP-100-BF | DPP-300-BF | DPP-600-BF |
Speed Range | 0.1~100rpm | 0.1~300rpm | 0.1~600rpm |
Speed Resolution | 0.1rpm | 0.1rpm | 0.1rpm |
Flow Range | 0.16μL/min~500mL/min | 1.6μL/min~1.5L/min | 0.052~3000ml/min |
Dispensed Fluid Volume | 0.01mL~9.99L | 0.01mL~99.99L |
Dispensed Number | 0~9999 |
Dispensing Interval Time | 0.1s~99.9min |
Suction Back Time | 0~99.9s |
External Control Input | 4~20Ma, 0~5V, 0~10V, 0~10KHz flow control, forward and reverse, start and stop control |
External Control Output | Start/stop, direction signal, speed signal |
Power Supply | 90~264V, 50Hz/60Hz |
Power | <40W | <60W | <140W |
Working Condition | Ambient Temperature: 0~40℃; Relative Humidity: <80% |
Protection Class | IP31 |
Adjustable Pump Head | YZ15A、YZ25、YZII15、YZII25、DG-1、DG-2、DG-4 |
Operation Method | Mechanical buttons and knob coding switches complete all operations |
Direction Control | Reversible in both directions |
Full Speed Function | Quick cleaning and emptying function |
Back Suction Function | Prevent liquid from dripping |
Display | 128*64 dot matrix Chinese character LCD displays all information |
Communication Function | It has the function of communicating with the host computer or computer |
Flow Function | It can deliver liquid according to the set flow rate |
Distribution Function | Including the functions of dispensing liquid volume, dispensing times, time interval, etc. |
Standard Accessories | YZ15A pump head, 2 meters of 14# pump tube |
Optional Accessories | Foot switch, 4~20mA, 0~5V, 0~10V, 0~10KHz external control |
External Size | 300*171*189mm | 330*250*190mm |
Net Weight | 3.2kg | 5.0kg |
Packing Size | 390*340*240mm | 390*340*240mm |
Gross Weight | 4.1kg | 5.7kg |

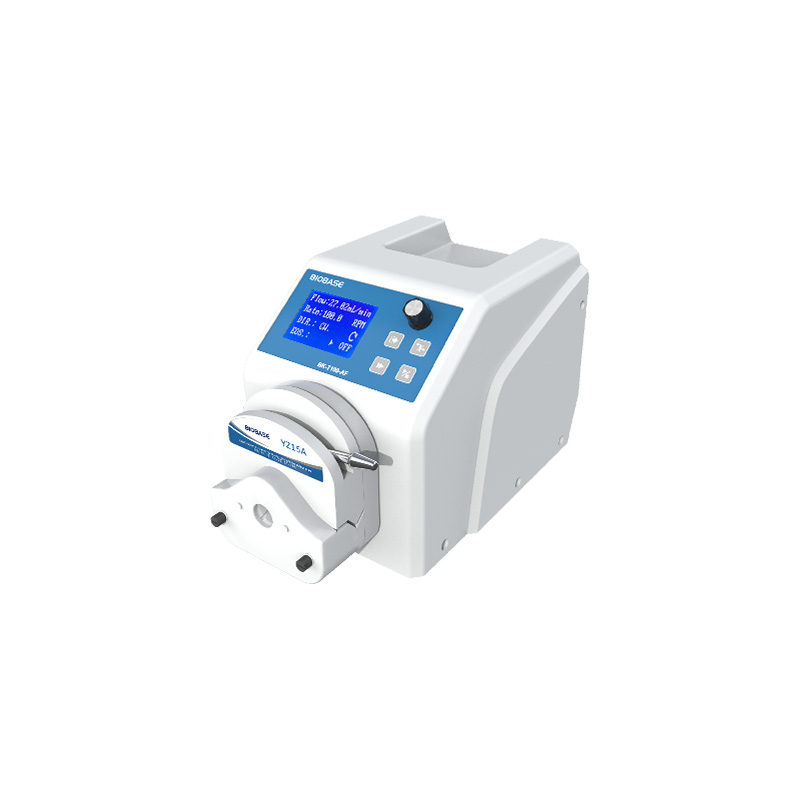

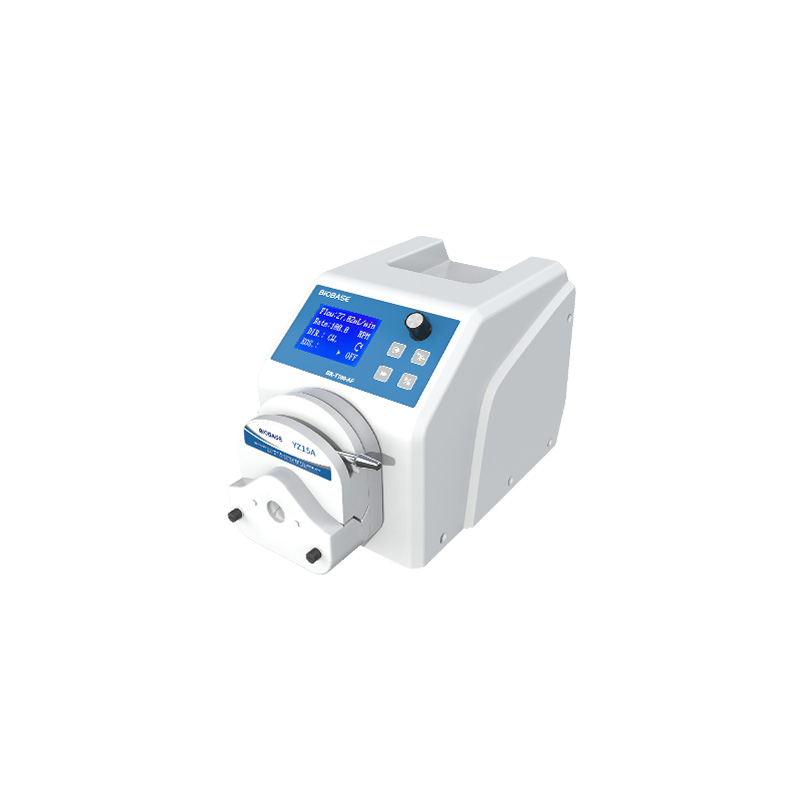

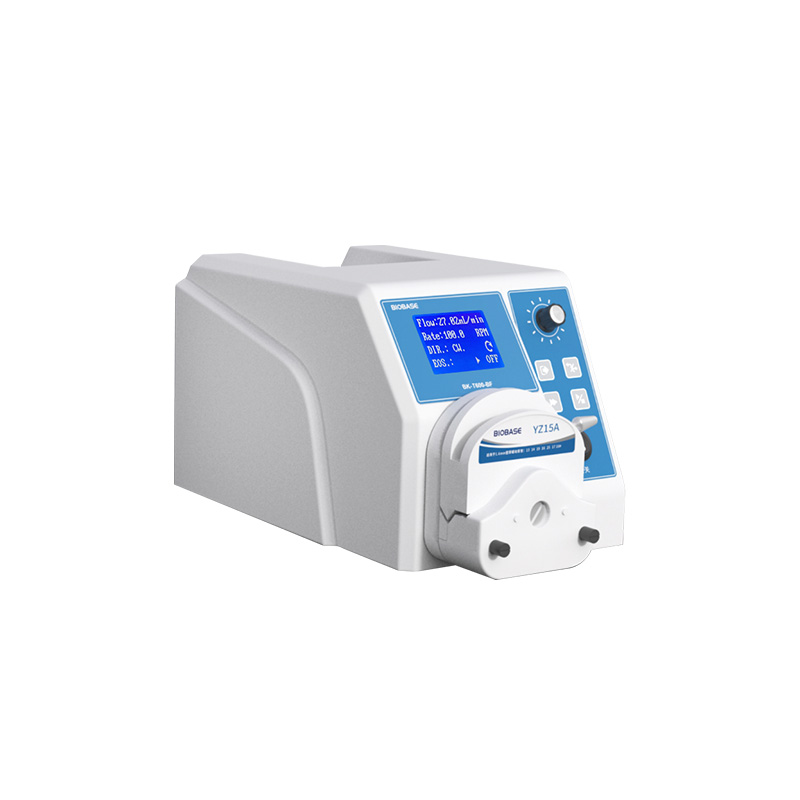

Dispensing Peristaltic Pump DPP-100-BF DPP-300-BF DPP-600-BF — professional solution in the Peristaltic Pump category
Dispensing Peristaltic Pump DPP-100-BF DPP-300-BF DPP-600-BF is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Dispensing Peristaltic Pump DPP-100-BF DPP-300-BF DPP-600-BF
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Dispensing Peristaltic Pump DPP-100-BF DPP-300-BF DPP-600-BF fits easily into existing process lines and IT infrastructure.
Areas of application Peristaltic Pump
Peristaltic Pump solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Dispensing Peristaltic Pump DPP-100-BF DPP-300-BF DPP-600-BF allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Dispensing Peristaltic Pump DPP-100-BF DPP-300-BF DPP-600-BF you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Dispensing Peristaltic Pump DPP-100-BF DPP-300-BF DPP-600-BF to the cart or contact our manager. We will help integrate Peristaltic Pump into existing processes without downtime and unnecessary costs.
