Features:
1. Customized design is welcome.
2. Unique designed air duct effectively controls the noise.
3. Smooth transitions of wall and ground can eliminate the blind angle.
4. Differential pressure gauge is equipped to real-time monitor the filters.
5. Intelligent control mode and alarm system ensure the reliability of running.
6. Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.
7. Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products.
8. Dispensing Booth(Sampling or Weighing Booth) has primary filters, medium efficiency filters and HEPA filters to keep air cleanliness of work area.
Technical Parameters:
Model | BKDB-1200 | BKDB-1800 | BKDB-2400 |
Clean Level | ISO 5(Class 100), Class A |
HEPA Filters | 99.995% efficiency at 0.3μm |
Air Volume | Supply air volume: ≤7500m³/h, Exhaust air volume: ≤2250m³/h, Adjustable |
Material | Fully stainless steel |
Air Velocity | 0.3~0.6m/s, adjustable |
Pressure Gauge | 3pcs |
Noise | ≤75dB |
UV Lamp | 30W*1 | 40W*1 | 30W*2 |
Emission of 253.7 nanometers, with UV timer |
Illuminating Lamp | 14W*4 | 16W*4 | 16W*2&14W*4 |
LED lamp, Illumination: ≥500lux |
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
Consumption | 500W | 1000W | 1700W |
Sockets | 2pcs |
Work Area Size(W*D*H) | 1200*1200*2000mm | 1800*1800*2000mm | 2400*1800*2000mm |
External Size(W*D*H) | 1300*1700*2400mm | 1900*2300*2400mm | 2500*2400*2400mm |
Gross Weight | 420kg | 750kg | 840kg |
Package Size(W*D*H) | 1440*2540*1980mm | 2020*760*2420mm
2020*660*495mm
1950*530*2160mm | 2640*960*2380mm
2640*780*680mm
2640*560*2250mm |
Customized design for clean level, size or material is available |

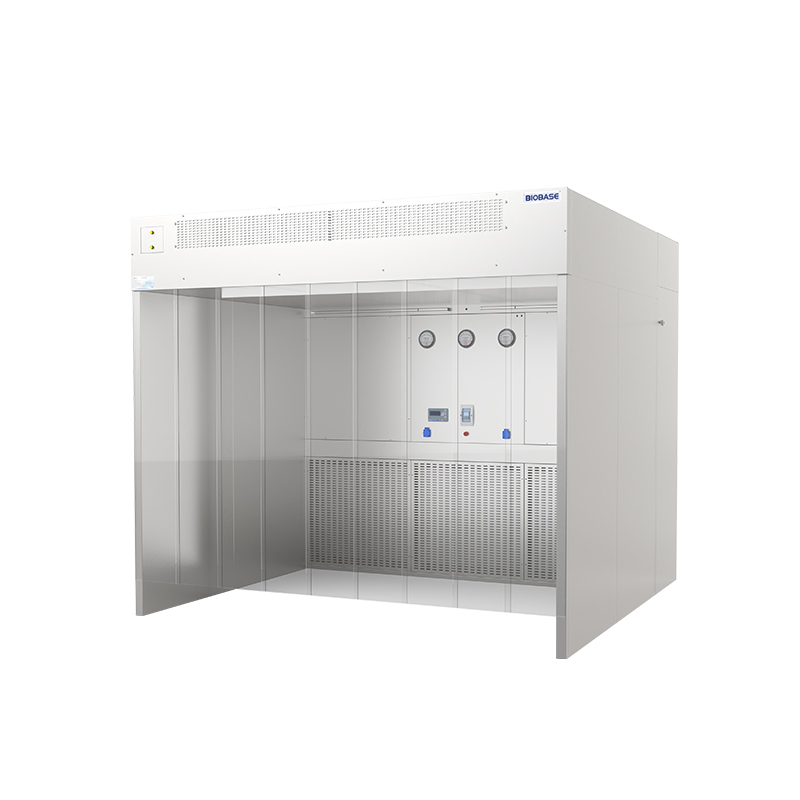

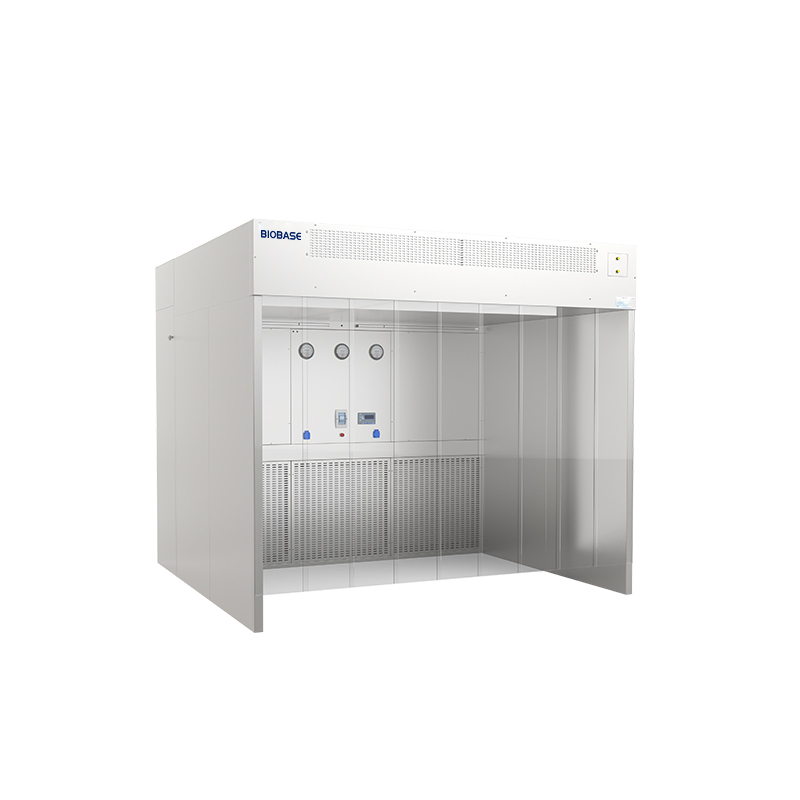

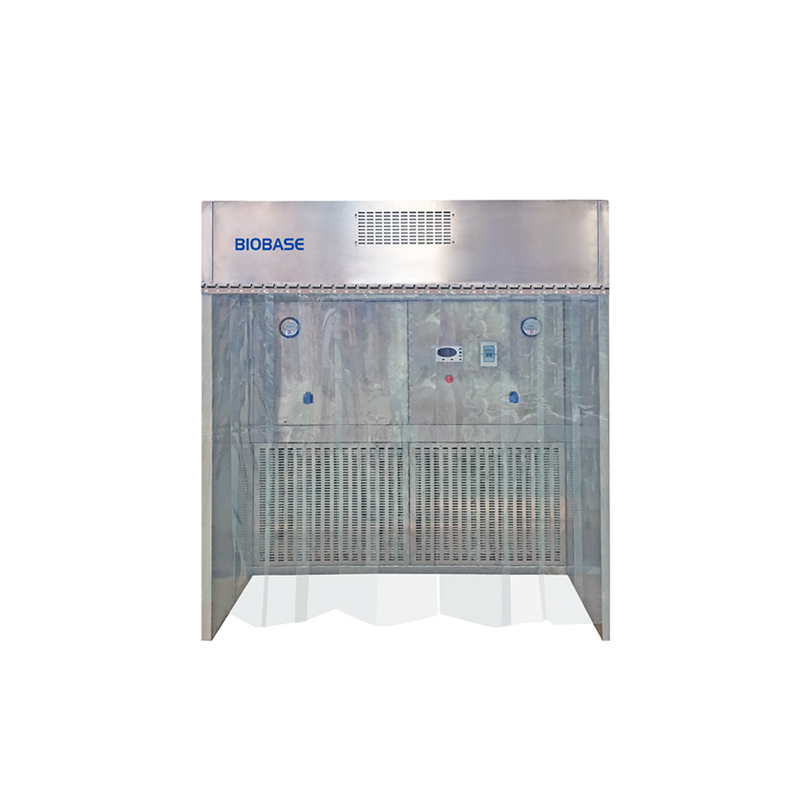

Dispensing Booth (Sampling or Weighing Booth) — professional solution in the Dispensing Booth category
Dispensing Booth (Sampling or Weighing Booth) is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Dispensing Booth (Sampling or Weighing Booth)
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Dispensing Booth (Sampling or Weighing Booth) fits easily into existing process lines and IT infrastructure.
Areas of application Dispensing Booth
Dispensing Booth solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Dispensing Booth (Sampling or Weighing Booth) allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Dispensing Booth (Sampling or Weighing Booth) you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Dispensing Booth (Sampling or Weighing Booth) to the cart or contact our manager. We will help integrate Dispensing Booth into existing processes without downtime and unnecessary costs.
