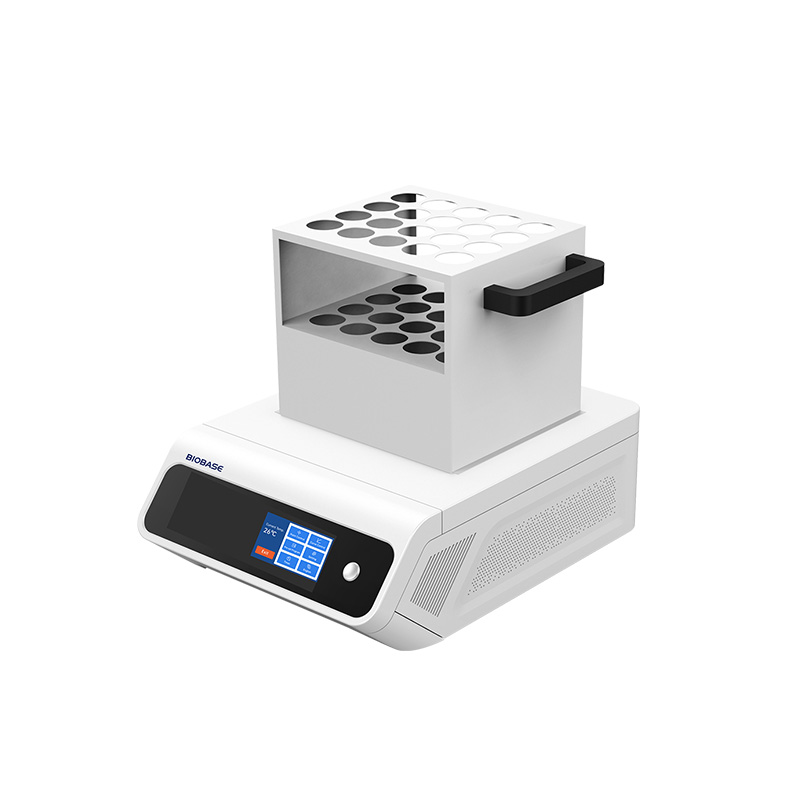

Digester BKD-10RS BKD-10RL BKD-15RS BKD-15RL BKD-20RS BKD-20RL

Features:

1. The high density graphite heating module has good uniformity and small temperature buffer, and the design temperature is up to 550℃.

2. Aluminum alloy heating module surface using aviation industry coating technology, beautiful, durable, design temperature 450℃.

3. The temperature control system adopts 5. 6 inch color touch screen, Chinese and English conversion, easy to operate.

4. Formula program input using table type fast input method, clear logic, fast speed, not easy to make mistakes.

5. 0~40 segment program can be arbitrarily selected and set.

6. Single point heating and curve heating modes are optional.

7. Intelligent PID self-tuning temperature control of high precision, reliable and stable.

8. Electrical control system adopts solid state relay, quiet, anti-interference ability is strong.

9. Segmented power supply and power outage prevention restart function can avoid potential risks.

10. Equipped with overtemperature and overpressure, over-current protection module.

Technical Parameters:

Model	BKD-10RS  BKD-10RL	BKD-15RS  BKD-15RL	BKD-20RS  BKD-20RL
Temp. Range	S=RT+5℃~550℃ L=RT+5℃~450℃
Temperature Accuracy	±1℃
Capacity	10pcs	15pcs	20pcs
Digestive Tube	Glass tube 300ml*10	Glass tube 300ml*15	Glass tube 300ml*20
Aperture Diameter(mm)	Φ43.5
Heating Block Material	S=High density graphite L=6061 aluminum alloy
Rate of Heating	≈8~15℃/min
Temperature Control System	1~40 segment program heating/single point heating dual mode
Formula Management	9 groups
Timed Shutdown	1~999min
Display	5.5-inch color touch screen
Power Supply	AC220V, 50Hz
Consumption	1.4KW	2.1KW	2.8KW
Package Size(W*H*D)mm	870*460*600	870*460*600	870*460*600
Net Weight(kg)	18	21	26
Gross Weight(kg)	24	28	34



Digester BKD-10RS BKD-10RL BKD-15RS BKD-15RL BKD-20RS BKD-20RL — professional solution in the Graphite Digester category

Digester BKD-10RS BKD-10RL BKD-15RS BKD-15RL BKD-20RS BKD-20RL is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Digester BKD-10RS BKD-10RL BKD-15RS BKD-15RL BKD-20RS BKD-20RL

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Digester BKD-10RS BKD-10RL BKD-15RS BKD-15RL BKD-20RS BKD-20RL fits easily into existing process lines and IT infrastructure.

Areas of application Graphite Digester

Graphite Digester solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Digester BKD-10RS BKD-10RL BKD-15RS BKD-15RL BKD-20RS BKD-20RL allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Digester BKD-10RS BKD-10RL BKD-15RS BKD-15RL BKD-20RS BKD-20RL you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
